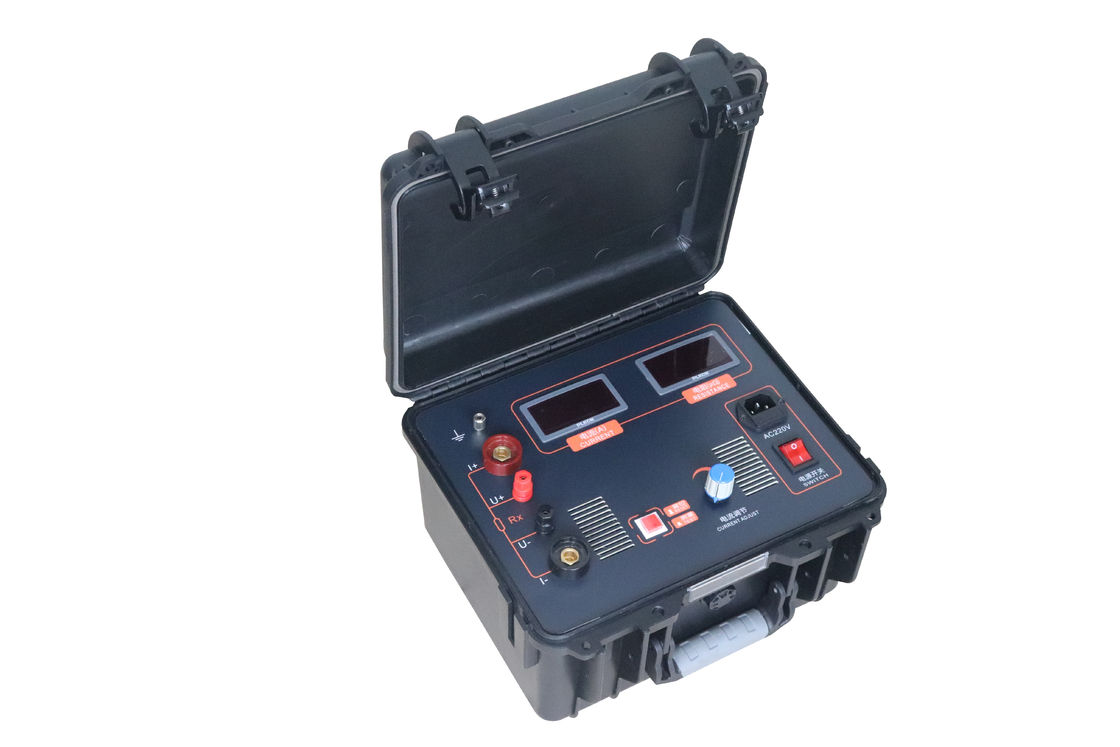

100A 200A Automatic Circuit Breaker Analyzer Loop Contact Resistance Tester

Name: 100A 200A Automatic Circuit Breaker Analyzer Loop Contact Resistance Tester
Brand: Wuhan GDZX Power Equipment Co., Ltd
SKU: ZXHL-200A
Availability: InStock

Product Details

Place of Origin: Hubei, China

Brand Name: GDZX

Certification: ISO9001

Model Number: ZXHL-200A

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: $800.00 - $1,000.00 / Sets

Packaging Details: Carton or wooden box

Delivery Time: 7~10 work days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 100 Set/Sets per Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                circuit breaker testing equipment, circuit breaker test set


Product Name:	Circuit Breaker Loop Contact Resistance Tester	Power Supply:	AC220V±10% 50Hz
Temperature:	-10℃~40℃	Humidity:	≤80%RH
Dimension:	380350260mm	Weight:	5 KG

Product Name:	Circuit Breaker Loop Contact Resistance Tester
Power Supply:	AC220V±10% 50Hz
Temperature:	-10℃~40℃
Humidity:	≤80%RH
Dimension:	380350260mm
Weight:	5 KG

Product Description

ZXHL-100A loop resistance tester

Product Description

Introduction

The ZXHL-100A circuit resistance tester is designed according to the People's Republic of China Electric Power executive standard DL/T845.4-2004, using the combination of high frequency switching power supply technology and digital circuit technology. It is suitable for measuring circuit resistance of switching control equipment. The test current adopts the DC 100A recommended by the national standard. The circuit resistance can be measured directly at the current of 100A and displayed digitally. The instrument is accurate in measurement and stable in performance, and meets the requirements of on-site maintenance of high-voltage switch in power supply department and circuit resistance test in high-voltage switch factory.

Product Features

1. High current: The use of new power supply technology, can be a long time continuous output of large current, to overcome the drawbacks of pulsed power supply instantaneous current, can effectively breakdown the switch contact oxide film, get good test results.
2. Strong anti-interference ability: under severe interference conditions, the last data of the LCD screen can be stabilized within the range of ±1 word, with stable reading and good repeatability.
3. Long service life: All high-precision resistors are used to effectively eliminate the impact of ambient temperature on the measurement results, and the use of connectors enhances the anti-vibration performance.
4. Easy to carry: small size, light weight.

Product Parameters

Item/Model	ZXHL-100A	ZXHL-200A	ZXHL-300A	ZXHL-600A
Measurement range	1~1999μΩ
Resolution	1μΩ
DC Test current (customizable)	100A	50A,100A,150A,200A	100A,200A,300A	100A,200A,400A,600A
Accuracy	±(0.5% rd+2d)
Working mode	Continuous	Continuous	Continuous	100A:600S,200A:60S, 400A:10S,600A:10S
Display	Current & resistance:Three and a half digital display
Power supply	AC220V±10% 50Hz
Service conditions	Temperature -10℃~40℃, humidity:≤80%RH
Dimension	300×280×210mm	380350260mm	380350260mm	350×350×510 mm
N.W.	6 KG	5 KG	10 KG	30 KG

CE Certified Factory Direct Sale ZXHL-100A Contact Circuit Resistance Tester

Packaging & Shipping

CE Certified Factory Direct Sale ZXHL-100A Contact Circuit Resistance Tester
