Payment & Shipping Terms:
|Product Name:||Circuit Breaker Simulator||Tripping Operation Is The Power Supply Voltage::||DC220V, DC110V|
|Tripping Impedance Selection::||440Ω, 220Ω, 110Ω||Trip Time Selection::||20-100ms|
|Closing Time Selection::||20-200ms||Power Supply::||AC200V±10%|
|Package Size::||390*290*380mm;||Gross Weight:||8kg|
circuit breaker testing equipment,
circuit breaker test set

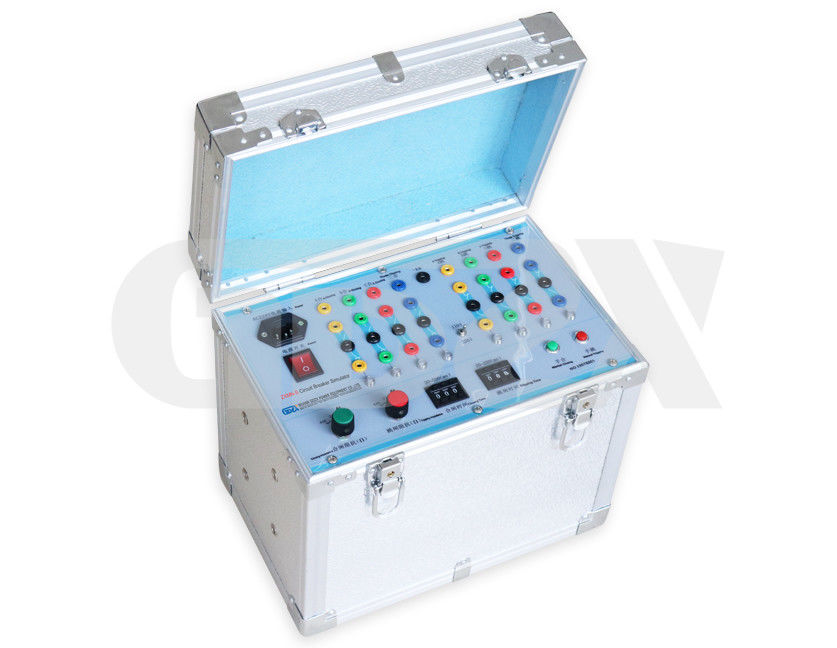

ZXMN-B Circuit Breaker Simulator
ZXMN-B Circuit Breaker Simulator is mainly used for the whole set test of power system power failure protection device or complete relay protection screen, which can truly simulate the trip time of circuit breaker device. The tripping and closing of the high voltage circuit breaker were simulated during the entire test to avoid the adverse effects caused by the repeated splitting of the circuit breaker due to the repeated whole set of tests.
The instrument adopts all-digital circuit, and the time is set by digital dialing. It can realize the functions of analog circuit breaker tripping time setting, three-phase/phase-phase operation selection, input signal logic control, etc., thus simulating the circuit breaker's jumping and closing action.
|1. Power supply:||AC200V±10%|
|2. Tripping operation is the power supply voltage:||DC220V, DC110V|
|3. Tripping impedance selection:||440Ω, 220Ω, 110Ω|
|4. Closing time selection:||20-200ms|
|5. Trip time selection:||20-100ms|
|6.Package size and gross weight:||390*290*380mm; 8kg|
|7. Analog circuit breaker normally closed / normally open contact capacity is AC220V/5A.|
PACKING AND SHIPPING
(1)We will ship products within 7-15 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
If you need detailed specification, please feel free to contact us.
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
Service and Warranty
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user’s questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others.
* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.
* Our products are guaranteed with one year warranty and life-long tech support.
* Provide solutions within 24 hours when there is problems feedback from customer.
1.Q: Are you trading company or manufacturer?
A: We are manufacturer.
We have R&D department, OEM& ODM services available.
2.Q: How long is your delivery time?
A: We usually arrange shipment within 5-7 working days after checking the payment. However, for example, the delivery time of the complete set of test devices will be a little longer, which needs to be checked in real time.
3.Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample, but not for free; you need pay charge and the cost of freight.
4.Q: What is your term of payment?
A: Payment<=5000USD, 100% in advance. Payment>5000USD, 50% T/T in advance, balance before shipment.
5.Q: What is the payment method?
A: We can accept Bank Transfer, T/T,L/C.
6.Q: Will you provide OEM service?
A: OEM & ODM services available
7.Q: How long is the equipment warranty?
A: 1 year.
Contact Person: firstname.lastname@example.org
