High Voltage Long Distance Buried Cable Fault Locator Intelligent Multiple Pulse

Name: High Voltage Long Distance Buried Cable Fault Locator Intelligent Multiple Pulse
Brand: Wuhan GDZX Power Equipment Co., Ltd
SKU: ZX-A30
Price: 12500.00 USD
Availability: InStock

Product Details

Place of Origin: Hubei, China

Brand Name: GDZX

Model Number: ZX-A30

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: $12000.00 - 13000.00/ Set

Packaging Details: Carton or wooden box

Delivery Time: 7~10 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union,

Supply Ability: 1200 Set/Sets per Year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                High Voltage Cable Fault Locator, Long Distance Buried Cable Locator, Intelligent Multiple Pulse Fault Locator


Voltage Levels:	Below 35KV	Storage Memory:	8G
Test Distance:	0~40Km	Display Mode:	12.1in Industrial LCD Touch Screen
Sampling Frequency:	6.25MHz,12.5MHz,25MHz,50MHz,100MHz	Host Weight:	6.2Kg

Voltage Levels:	Below 35KV
Storage Memory:	8G
Test Distance:	0~40Km
Display Mode:	12.1in Industrial LCD Touch Screen
Sampling Frequency:	6.25MHz,12.5MHz,25MHz,50MHz,100MHz
Host Weight:	6.2Kg

Product Description

High Voltage Long Distance Buried Cable Fault Locator Intelligent Multiple Pulse

ZX-A30 full intelligent multiple pulse cable fault locator is a fault test platform based on embedded computer platform. It integrates USB communication technology, touch-screen technology and 3G communication technology, which greatly improves the instrument's performance in practice and makes it easy to operate.

Product Features

Embedded industrial computer platform with Windows XP system, integrated testing software and installed cable fault testing software and cable data management software
12.1 inch large touch screen with touch pen or mouse operation, bright display suitable for outdoor use
Lithium battery for convenient on-site testing, plastic chassis for shock-proof stability
Latest USB communication interface ensuring stable signal collection with automatic sampling frequency selection
Automatic testing method distinction and fault point location with automatic distance reading and display

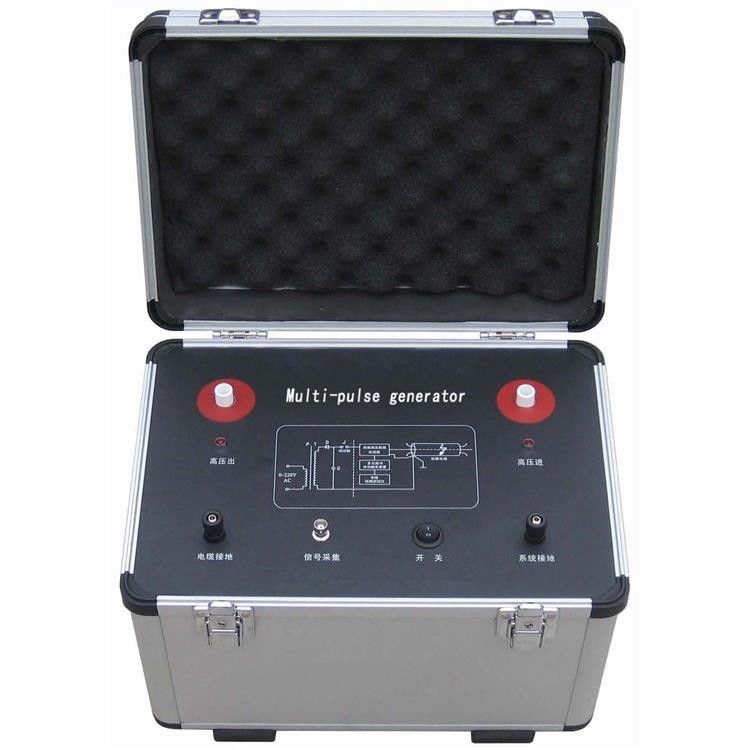

Unique multiple pulse generator design allowing three testing methods without reconnecting wires
WIFI receiver and 3G software compatibility for remote expert assistance
Comprehensive waveform storage and cable management system for field comparison and maintenance
Precise locator with squelch technology for accurate fault distance display
Brand-new light weight Integral High Voltage Surge Generator

Technical Parameters

Testing Capabilities

Test cable fault at different voltage levels below 35KV
Test cable fault of different cable sections, different dielectric and different cable materials
Test open-circuit, short-circuit, low-resistance, high-resistance leakage and high-resistance flash-over cable faults
Test all faults of railway communication control cable, streetlight cable and airport signal cable
Test wave transmitting velocity in any cable of known length
Test buried route and depth of power cable

Display & Operation

Display mode: 12.1in industrial LCD touch screen (Windows XP platform)
Test methods: LV impulse method, impulse HV flash-over method, multiple pulse method
Storage memory: 8G
Operate via touch pen and mouse

Performance Specifications

Test distance: no less than 60Km
Minimum test distance: 0-5m or without
Locating error: ±0.2m
Test error: system error no more than ±1%
Multiple pulse generator: Impulse voltage ≤40KV
Resolution: V/fm, V is transmitting velocity m/μs; software cursor is 0.10m
Sampling frequency: 6.25MHz, 12.5MHz, 25MHz, 50MHz, 100MHz (Adaptive pulse width)

Power & Environment

Power source: AC 220V±10%, power ≤15W, DC 12V(7AH), power ≤20W
Standby time: continuous working 6 hours
Host weight: 6.2Kg
Dimension: 180mm×300mm×400mm
Environment: -20℃~+40℃, ≤80%RH

Additional Components

Cable router tracer signal frequency: sine-wave 15KHz
Output power: Pomax ≥100W
Tracer output impedance: Zo=Zc (Cable characteristic impedance)
Vibrating mode: non-continuous
Impulse Generator max voltage: ≤35KV
Max work current: ≤30mA
Voltage display error: <+/-2%
Discharge energy: ≤2450J/3.5s
Min discharge period: 3.2s, max power <1.5kVA
