Wuhan GDZX Power Equipment Co., Ltd sales@gdzxdl.com 86--17396104357
Product Details
Place of Origin: China
Brand Name: GDZX
Certification: ISO9001
Model Number: ZXTX-1825
Payment & Shipping Terms
Minimum Order Quantity: 1Set
Price: US $1185.00-$2000.00 /SET
Packaging Details: Carton/Wooden case
Delivery Time: 5~20 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1200Sets/ year
DC V: |
0~60.000V (Upper Display ±30V) |
DC MA: |
0-24.000mA (Upper Display ±24mV) |
DC MV: |
-15.000mV~80.000mV; 80.00mV~125.00mV |
Resistance (2 Wires, 3wires): |
0.00Ω~440.00Ω, 400..00Ω~3200.00Ω |
Frequency: |
1.000Hz~99.999Hz, 1000.0Hz~9999.99Hz, 10.000kHz~99.999kHz |
TC: |
J,K,T,E,R,S,B,N |
RTD: |
Pt100,Pt1000, Cu50, Cu100 |
DC V: |
0~60.000V (Upper Display ±30V) |
DC MA: |
0-24.000mA (Upper Display ±24mV) |
DC MV: |
-15.000mV~80.000mV; 80.00mV~125.00mV |
Resistance (2 Wires, 3wires): |
0.00Ω~440.00Ω, 400..00Ω~3200.00Ω |
Frequency: |
1.000Hz~99.999Hz, 1000.0Hz~9999.99Hz, 10.000kHz~99.999kHz |
TC: |
J,K,T,E,R,S,B,N |
RTD: |
Pt100,Pt1000, Cu50, Cu100 |

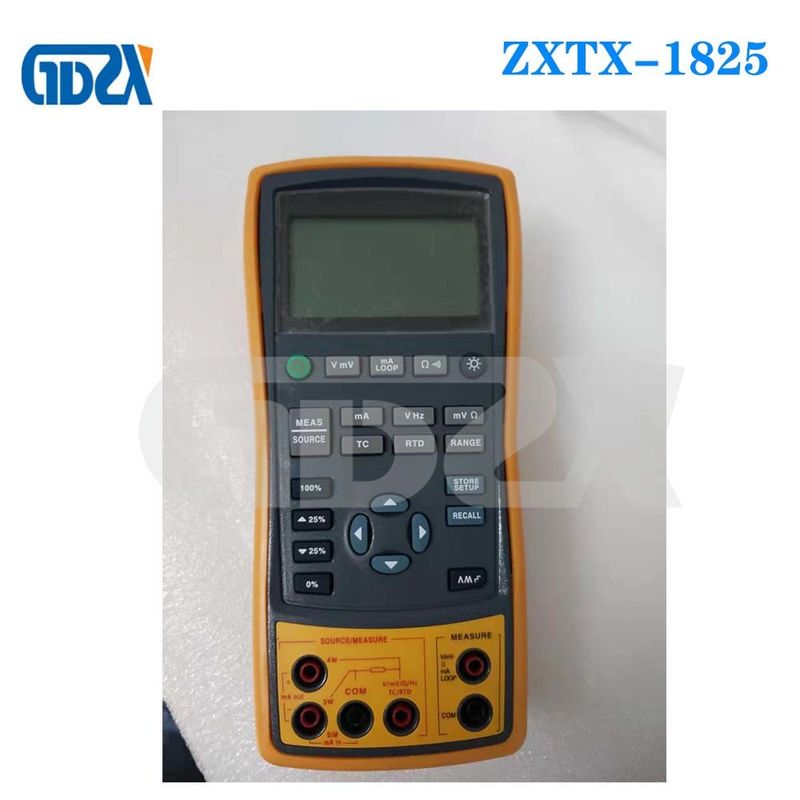

ZXTX-1825 Multifunctional Process Calibration Instrument
Product introduction
ZXTX-1825 Multifunctional Process Calibration Instrument is a high precision hand-held signal measurement / output instrument, which can measure and output voltage, current, resistance, frequency, thermocouple at the same time. Various industrial process signals, such as thermal resistance, can be used to calibrate pressure transducers with external high precision intelligent pressure modules. It can replace current signal source, voltage signal source, resistance box, electronic potentiometer, frequency meter and other measuring and calibration instruments. Mainly used in industrial field signal calibration, fault diagnosis; also applicable to chemical, military and all kinds of research institutes, real Signal measurement and calibration in laboratory.
Features
1. Super strong protection function: waterproof grade IP67, arbitrary signal end misconnect 220V automatic protection.
2. Measurement / output: voltage, current, frequency, resistance, in which current output supports active, passive.
3. The thermal resistance and thermocouple are simulated in the form of temperature.
4. Can simulate two-wire transmitter.
5. The accuracy was 0.05%
6. Two isolated channels support synchronous measurement and output.
7. Can provide manual step, automatic step, 0-100% step and slope output function;
8. With white LED backlight, manual backlight adjustment and automatic power off function, suitable for field use.
9. Provide DC24V circuit power suppcalibration; ly for field debugging.
10.Unique automatic identification of three-wire, four-wire connection mode.
11.Support customer self, Band on-off test function.
12.Thermocouple measurement and output provide automatic and manual cold end temperature compensation.
13.Can add new thermocouple, thermal resistance type according to customer needs.
Function | Range |
Accuracy (% Reading+counts) |
DC V |
0~60.000V (Upper Display ±30V) |
0.05%+2 |
DC mA |
0-24.000mA (Upper Display ±24mV) |
0.05%+2 |
DC mV | -15.000mV~80.000mV | 0.05%+2 |
80.00mV~125.00mV | ||
Resistance (2 wires, 3wires) | 0.00Ω~440.00Ω | 0.25Ω |
400..00Ω~3200.00Ω | 1.5Ω | |
Resistance(4wires) | 0.00Ω~440.00Ω | 0.15Ω |
400..00Ω~3200.00Ω | 1.0Ω | |
Frequency | 1.000Hz~99.999Hz | 0.02%+1 |
1000.0Hz~9999.99Hz | ||
10.000kHz~99.999kHz | ||
TC | J,K,T,E,R,S,B,N | |
RTD | Pt100,Pt1000, Cu50, Cu100 |
Output Index
Function | Range |
Accuracy (% Reading+counts) |
DC mA (Active/Passive) |
0-24.000mA | 0.05%+2 |
DC V | 0~10.000V | 0.05%+2 |
DC mV | -15.000mV~99.999mV | 0.05%+2 |
100.00mV~125.00mV | ||
Resistance | 10.00Ω~440.00Ω | 0.25Ω |
400.0Ω~3200.0Ω | 1.5Ω | |
Frequency | 0.20Hz~200.00Hz | 0.02%+1 |
200.0Hz~2000.0Hz | ||
2.000kHz~20.000kHz | ||
TC | J,K,T,E,R,S,B,N | |
RTD | Pt100,Pt1000, Cu50, Cu100 |
1.Q: Are you trading company or manufacturer?
A: We are manufacturer.
We have R&D department, OEM& ODM services available.
2.Q: How long is your delivery time?
A: We usually arrange shipment within 5-7 working days after checking the payment. However, for example, the delivery time of the complete set of test devices will be a little longer, which needs to be checked in real time.
3.Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample, but not for free; you need pay charge and the cost of freight.
4.Q: What is your term of payment?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance, balance before shipment.
5.Q: What is the payment method?
A: We can accept Bank Transfer, T/T, PayPal, Western Union, Money Gram, Cash etc.
6.Q: Will you provide OEM service?
A: OEM & ODM services available
7.Q: How long is the product warranty?
A: 1 year.
