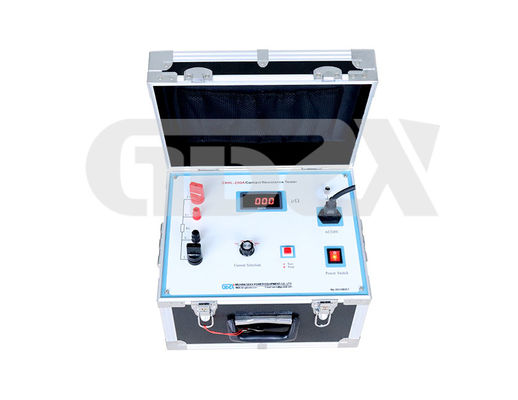

Anti Interference 200A Contact Resistance Tester For Switching Control Equipment

Product Details

Place of Origin: China

Brand Name: GDZX

Certification: ISO9001

Model Number: ZXHL-200A

Payment & Shipping Terms

Minimum Order Quantity: 1Set

Packaging Details: packing bag

Delivery Time: 3-20 work days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 1200Sets/ year

Get Best Price
Product Details
Highlight:

200A Contact Resistance Tester

,

Anti Interference Contact Resistance Tester

,

200A Contact Resistance Test Equipment

.Measurement Range:
1~1999μΩ
Resolution:
1μΩ
Test Current:
DC 50A,100A,150A,200A Fixed Output
Measurement Accuracy:
0.5%
Work Method:
Continuously
Display:
Three And A Half LCD
.Measurement Range:
1~1999μΩ
Resolution:
1μΩ
Test Current:
DC 50A,100A,150A,200A Fixed Output
Measurement Accuracy:
0.5%
Work Method:
Continuously
Display:
Three And A Half LCD
Product Description

Relay Protection Tester

For  Switching Control Equipment  200A  Contact Resistance Tester

ZXHL-200A Contact Resistance Tester is designed for measuring contact resistance of Switching Control Equipment, using High-frequency switching power supply technology and digital circuit technology. It is high precision and good stability and can meet most power systems’ requirements in high-voltage switches maintenance and high-voltage switches factory contact resistance measurement.





Features

1. High current: For latest power supply technology, the tester can continuously output high current which overcomes the weakness of instantaneous current produced by pulsed power. It can effectively breakdown/puncture the oxide layer of the switches and then get precise results.

2. Strong anti-interference ability: The last number of test data will stably show in the LCD screen only with ±1d error even in strong Interference situation.

3. Long service life: All the precise resistances used in the tester can reduce the temperature’s impact on the measurement results and military connectors can enhance vibration resistance.

4. Convenience: Small size, light weight.





Technical Indicators

1. Measurement Range:1~1999μΩ

2. Resolution:1μΩ

3. Test Current:DC 50A,100A,150A,200A fixed output

4. Measurement accuracy:0.5%

5. Work method: Continuously

6. Display:three and a half LCD

7. Power Supply:AC220V±10%  50Hz

8. Work Environment:Temperature -10℃~40℃ Humidity:≤80 %RH

9. Dimension:380×350×260mm

10. Weight:10Kg(Accessories excluded)
