Intelligent Power Substation Messages Analyzer 5.7” Capacitive Multi Touch Panel

Name: Intelligent Power Substation Messages Analyzer 5.7” Capacitive Multi Touch Panel
Brand: Wuhan GDZX Power Equipment Co., Ltd
SKU: ZX-602
Price: 100,000.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: GDZX

Certification: ISO9001

Model Number: ZX-602

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: CARTON

Payment Terms: Western Union, MoneyGram, L/C, T/T

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                protection relay test equipment, protective relay tester


Protocal:

IEC61850-9-1/2/LE、Goose、IEC60044-7/8 FT3、MMS、STNP、GRMP、IEEE-1588、IRIG-B、PPS、SCL

Power:

Li-battery

Protocal:	IEC61850-9-1/2/LE、Goose、IEC60044-7/8 FT3、MMS、STNP、GRMP、IEEE-1588、IRIG-B、PPS、SCL
Power:	Li-battery

Product Description

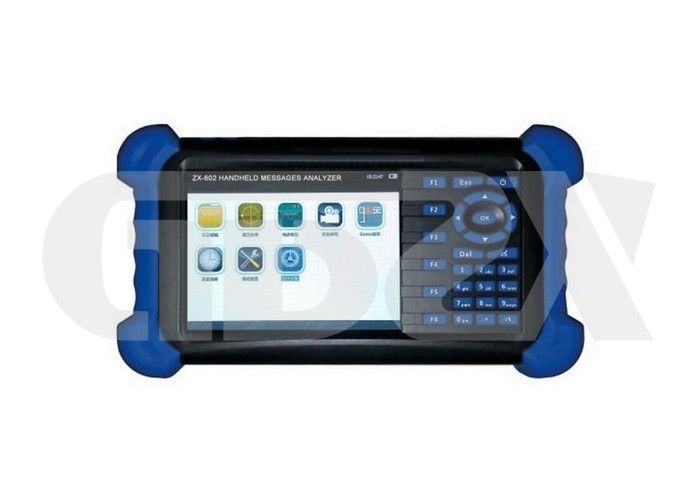

Intelligent Power Substation Messages Analyzer 5.7” Capacitive Multi Touch Panel

This device can be used for fast test of protection devices, intelligent terminals, merging units and transducers. It is multiple-functional with high precision and is essential equipment for installation, debugging, and maintenance of intelligent substation.

FEATURES

Capacitive multi-touch panel (5.7”), built in 11000mAh rechargeable Li-battery, the continuous voyage ability over 6 hours
With 3 pairs optical Ethernet interface, 1 pair optical serial interface, 1 IRIG-B/PPS synchronous interface, support single-mode fiber connection
G-net interface for optical Ethernet interface, 100/1000Mbits/s self-adaptive
Two channel hard switching input contact and 4 channel hard switching output contact, for intelligent terminal response testing
Support connection with USB storage device, for data import/export
Support IEC61850-9-1/2/LE,Goose,IEC60044-7/8 FT3,MMS,STNP,GRMP,IEEE-1588,IRIG-B,PPS,SCL standards.
Multi-functional, can test bay level, process level protection device, merging unit, intelligent terminal, instrument transformers,
Graph demonstration of various electrical parameters, direct result reading
A9+FPGA dual-core IPC performance, fast operation speed, message sending dispersion <0.1us, receiving time error <25ns
Small and portable, simple to use

Parameters

Optical Ethernet interface	3 pairs×100/1000Mbits/s, self-adaptive, LC, multi-mode, 1310nm;	Sending dispersion:<0.1μs
	IEC61850-9-1/2/LE,Goose,IEEE-1588,	Receiving time accuracy:<25ns
	Supplied with optical power measurement	1588 time-synchronization accuracy<80ns
Optical serial interface	1pair×(2~10Mbits/s),LC,multi-mode, 850nm;	Sending dispersion:<0.1μs
Optical serial interface	IEC60044-7/8, FT3, support Manchester code or asynchronous serial port transmittion method	Receiving time accuracy <25ns
Synchronous interface	1pair×IRIG-B/PPS optical port,LC, multi-mode, 850nm	Accuracy: <400ns
Hard switching input	2 pairs,10-250VDC or idle contact, auto-identifying, no polarity
Hard switching output	2 pairs, idle contact/fast output , AC/DC breaking capability:0.5A, 250	Fast output time: <10μs
Electrical Ethernet interface	1 pcs,RJ-45,100Mbits/s
USB port	1pcs, USB storage device
Screen	5.7' capacitive mul-touch screen
Power supply	4.2V,3.0A
Battery	Rechargeable, 11000mAh	Continuous voyage ablity>6h
Dimension	250×140×44mm	Weight<1Kg
