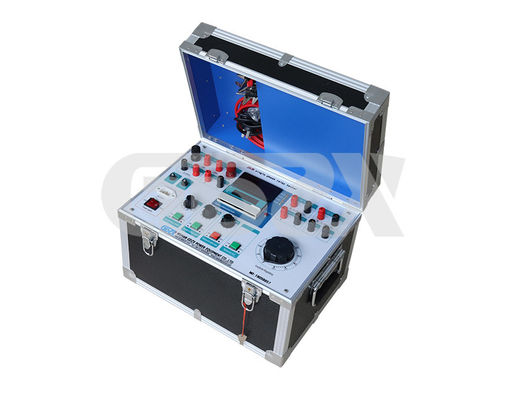

Multi Functional Single Phase Relay Protection Tester , Protection Relay Test Equipment

Multi Functional Single Phase Relay Protection Tester , Protection Relay Test Equipment
Multi Functional Single Phase Relay Protection Tester , Protection Relay Test Equipment Multi Functional Single Phase Relay Protection Tester , Protection Relay Test Equipment Multi Functional Single Phase Relay Protection Tester , Protection Relay Test Equipment Multi Functional Single Phase Relay Protection Tester , Protection Relay Test Equipment Multi Functional Single Phase Relay Protection Tester , Protection Relay Test Equipment Multi Functional Single Phase Relay Protection Tester , Protection Relay Test Equipment

Large Image :  Multi Functional Single Phase Relay Protection Tester , Protection Relay Test Equipment

Product Details:
Place of Origin: CHINA
Brand Name: GDZX
Certification: ISO9001
Model Number: ZXJB
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD$1,598.00 - $2,601.00 / Sets
Packaging Details: Packed in wooden case or carton
Delivery Time: 8-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1200 /Sets per Year
Detailed Product Description
Product Name:: Single Phase Relay Protection Tester Fixed Voltage Output:: DC 24V/1A,48V/1A,110V/1A,220V/1A
Digital Millisecond Meter:: 0~9.99999s(can Revise To 99.9999s If Required) Resolution:: 0.1ms
Power Supply:: AC220V±5%, 50Hz±5% Measurement range Of AC current: 0~5A, 0~20A, 0~100A
Measurement range Of DC current: 0~20A Measurement range Of AC And DC voltage: AC Voltage:0~250V; DC Voltage: 0~320V
High Light:

current transformer test set

,

transformer testing machine

ZXJB Single Phase Relay Protection Tester





Product introduction:

ZXJB Single-Phase Relay Protection Integrated Tester adopts new power supply technology for AC and DC voltage and current sources, which provides convenience for field personnel to use power supply instrument technology for other experiments. The function can perform various checks on various common relays, and the panel layout is exquisite, allowing the operator to operate easily and at a glance, thus winning the unanimous praise of the majority of users.




Multi Functional Single Phase Relay Protection Tester , Protection Relay Test Equipment 0



Features

1. Measuring relay: measure start value, return value, and their factors of current, voltage type relay.



2. Time relay: Measure start value, return value and action time, error less than 0.2ms



3. Intermediate relay: Measure start value, return value, holding value and operation time of coil intermediate relay.



4. Reclosing relay: Charge test of capacitance, charge time, reclosing time and intermediate member test.



5. Differential relay: DC Excitation test, Braking test, Volt-ampere characteristic test.



6. Other unconventional relays

Multi Functional Single Phase Relay Protection Tester , Protection Relay Test Equipment 1



Technical Indicators


Adjustable Item Measurement range Accuracy remark
AC current 0~100A ±0.5% 1000W
AC current 0~20A ±0.5% 700W
AC current 0~5A ±0.5% 40W
DC current 0~20A ±0.5% 500W
AC voltage 0~250V ±0.5% 1000W
DC voltage 0~320V ±0.5% 1000W



Fixed voltage output: DC 24V/1A,48V/1A,110V/1A,220V/1A



Digital Millisecond meter: 0~9.99999s(can revise to 99.9999s if required)



Resolution:0.1ms



Power supply:AC220V±5%, 50Hz±5%





Product pictures

Multi Functional Single Phase Relay Protection Tester , Protection Relay Test Equipment 2

Multi Functional Single Phase Relay Protection Tester , Protection Relay Test Equipment 3

Multi Functional Single Phase Relay Protection Tester , Protection Relay Test Equipment 4

Multi Functional Single Phase Relay Protection Tester , Protection Relay Test Equipment 5













Test cases
Multi Functional Single Phase Relay Protection Tester , Protection Relay Test Equipment 6

Multi Functional Single Phase Relay Protection Tester , Protection Relay Test Equipment 7Multi Functional Single Phase Relay Protection Tester , Protection Relay Test Equipment 8Multi Functional Single Phase Relay Protection Tester , Protection Relay Test Equipment 9


Company introduction
Wuhan GDZX Power Equipment Co.,Ltd. is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
Multi Functional Single Phase Relay Protection Tester , Protection Relay Test Equipment 10
Multi Functional Single Phase Relay Protection Tester , Protection Relay Test Equipment 11
Multi Functional Single Phase Relay Protection Tester , Protection Relay Test Equipment 12Multi Functional Single Phase Relay Protection Tester , Protection Relay Test Equipment 13
Multi Functional Single Phase Relay Protection Tester , Protection Relay Test Equipment 14Multi Functional Single Phase Relay Protection Tester , Protection Relay Test Equipment 15
Multi Functional Single Phase Relay Protection Tester , Protection Relay Test Equipment 16


Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user’s questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others.
Warranty
* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.
* Our products are guaranteed with one year warranty and life-long tech support.
* Provide solutions within 24 hours when there is problems feedback from customer.
Multi Functional Single Phase Relay Protection Tester , Protection Relay Test Equipment 17

PACKING AND SHIPPING
(1)We will ship products within 5-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
If you need detailed specification, please feel free to contact us.Multi Functional Single Phase Relay Protection Tester , Protection Relay Test Equipment 18


FAQ:


1.Q: Are you trading company or manufacturer?
A: We are manufacturer.

We have R&D department, OEM& ODM services available.



2.Q: How long is your delivery time?
A: We usually arrange shipment within 5-7 working days after checking the payment. However, for example, the delivery time of the complete set of test devices will be a little longer, which needs to be checked in real time.



3.Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample, but not for free; you need pay charge and the cost of freight.



4.Q: What is your term of payment?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance, balance before shipment.



5.Q: What is the payment method?
A: We can accept Bank Transfer, T/T, PayPal, Western Union, Money Gram, Cash etc.



6.Q: Will you provide OEM service?
A: OEM & ODM services available



7.Q: How long is the product warranty?
A: 1 year.
