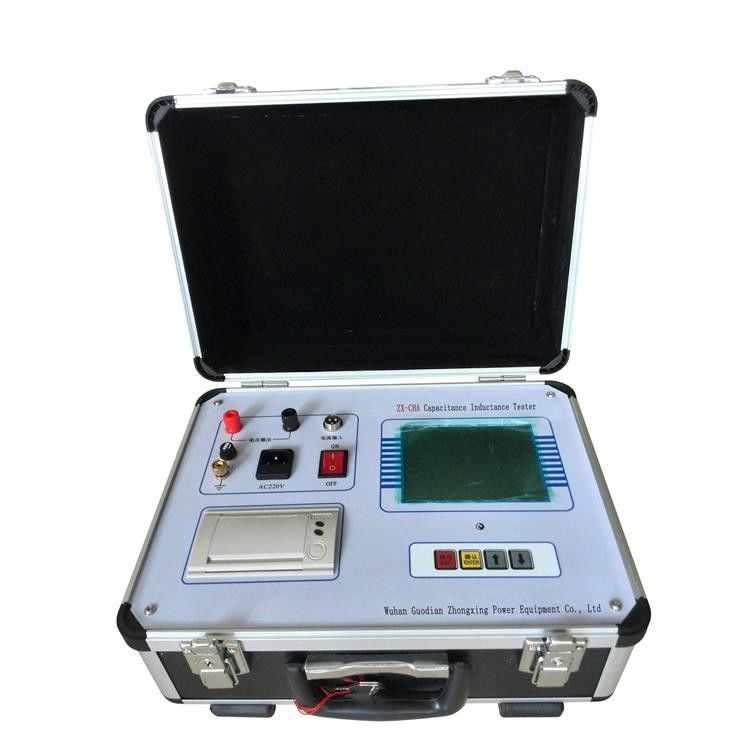

Small Relay Protection Tester Power Distribution Capacitance Inductance Tester

Product Details

Place of Origin: Hubei, China

Brand Name: GDZX

Model Number: ZX-CHA

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: $2,300.00 - $3,300.00 / Sets

Packaging Details: Carton or wooden box

Delivery Time: 7~10 work days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 1200 Set/Sets per Year

Get Best Price
Product Details
Highlight:

protection relay test equipment

,

protective relay test set

Product Name:
Capacitance Inductance Tester
Capacitance Measuring Range:
0.1μF-3300μF
Capacity Range:
5~20000kV
Current Measuring Range:
0~199.9mA;0~1.999A;0~19.99A;0~199.9A, 0~1000A
Inductance Measuring Range:
0.1mH~5mH, 5mH~50H
Inductive Reactance Measuring Range:
50mΩ~20KΩ
Product Name:
Capacitance Inductance Tester
Capacitance Measuring Range:
0.1μF-3300μF
Capacity Range:
5~20000kV
Current Measuring Range:
0~199.9mA;0~1.999A;0~19.99A;0~199.9A, 0~1000A
Inductance Measuring Range:
0.1mH~5mH, 5mH~50H
Inductive Reactance Measuring Range:
50mΩ~20KΩ
Product Description



Features



No need disassemble the wire during the field test

Small in workload, easy to operate



Parameters

Capacitance measuring range 0.1μF-3300μF
Capacity range 5~20000kV
Accuracy (±1% Rdg +0.02μF)
Resolution 0.001μF
Current measuring range 0~199.9mA;0~1.999A;0~19.99A;0~199.9A, 0~1000A
Accuracy (±3% Rdg +0.05A)
Resolution 0.01A
Inductance measuring range 0.1mH~5mH, 5mH~50H
Inductive reactance measuring range 50mΩ~20KΩ
Accuracy (±3% Rdg +0.05mH)
Resolution 0.01mH
Resistance measuring range 50mΩ~1Ω, 1Ω~20KΩ
Accuracy (±3% Rdg +0.05Ω)
Resolution 0.01Ω
Rated voltage 220V±10%
Frequency 50Hz
Output 2V/20V/500VA
Working condition Environment temperature -10~50°C
Relative humidity ≤90%
Printing LCD display with panel thermal printer
Dimension and weight

370×260×220mm/12kg
