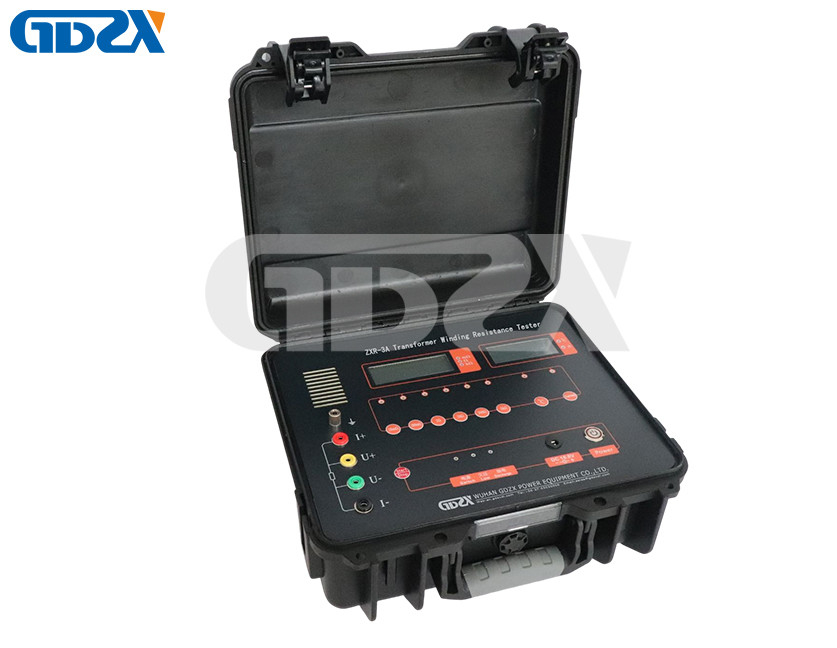

Onsite Field 3A Transformer Winding Resistance Tester

Onsite Field 3A Transformer Winding Resistance Tester
Onsite Field 3A Transformer Winding Resistance Tester Onsite Field 3A Transformer Winding Resistance Tester Onsite Field 3A Transformer Winding Resistance Tester Onsite Field 3A Transformer Winding Resistance Tester

Large Image :  Onsite Field 3A Transformer Winding Resistance Tester

Product Details:
Place of Origin: China
Brand Name: GDZX
Certification: ISO9001
Model Number: ZXR-3A
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Packaging Details: packing bag
Delivery Time: 3-20 work day
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1200Set/year
Detailed Product Description
Temperature: 0℃~40℃ Humidity:≤85%RH Measuring Range: 1mΩ~20mΩ;20~200mΩ;0.2~2Ω;2~20Ω;20~200Ω;200Ω~2kΩ
Measurement Accuracy: 0.5 Resolution:1μΩ Constant Current Source: 3A(1uΩ~2Ω)、0.3A(2Ω~20Ω)、0.03A(20Ω~200Ω)、0.003A(200Ω~2000Ω)
Ammeter Display Range: 0.30A~3.00A Volume And Weight: 335×275×175mm/2.8kg
High Light:

3A Transformer Winding Resistance Tester

,

Onsite Transformer Winding Resistance Tester

,

3A Transformer Winding Testing Equipment

Transformer Testing Equipment

For on-site and field test  3A Transformer Winding Resistance Tester Equipment

This instrument is a high-precision regeneration product used to replace DC single/double bridge.

Equipped with advanced switch power supply technology, the measurement speed of the instrument is faster a hundred times than that of the bridge. Using four and half bits LCD to display the measurement results and three and half bits LCD to display ambient temperature or test current value,

it overcomes the shortcoming of other similar products that it is difficult to read value from the LED display in the sun and possesses automatic arc suppression function. The instrument is characterized by fast test speed, high precision, intuitive display, strong anti-interference ability, small size, low power consumption, stable and reliable test data. Built-in rechargeable battery pack (12V) and AC/DC dual-use, the instrument is very convenient for on-site and field test.





Features

1. Fast test: The maximum output charge current of the instrument is up to 3A. When measuring it can effectively compensate current inertial for large inductor and accelerate core saturation, thereby reduced the charging time and increased test speed. Its test speed is faster hundreds of times than the traditional single instrument and double bridge.

2. High accuracy: The application of advanced four-terminal measurement and constant current source technology to the instrument makes the inductive load charging current hold a relatively stable value. Base on that, and the instrument with stable anti-sense capability and strong anti-interference characteristics can ensure the accuracy of measurement. And the use of imported high-quality components not only improves the measurement accuracy, but also makes the instrument have good repeatability.

3. Wide measurement range: resistance measurement range 1μΩ ~ 2KΩ, wide range.

4. AC and DC power supply: Attached rechargeable battery, the instrument can use AC and DC power supply. Portable design, it is easy to carry and use.



Technical Indicators

1, Temperature:0℃~40℃ Humidity:≤85%RH

2, Measuring range:1mΩ~20mΩ;20~200mΩ;0.2~2Ω;2~20Ω;20~200Ω;200Ω~2kΩ

3, measurement accuracy:0.5 Resolution:1μΩ

4, constant current source:3A(1uΩ~2Ω),0.3A(2Ω~20Ω),0.03A(20Ω~200Ω),0.003A(200Ω~2000Ω)

5, Ammeter display range:0.30A~3.00A

6, Operating Voltage: DC:12V~16.8V(2.2Ah)AC:220V Power consumption:≤15W

7, Volume and weight:335×275×175mm/2.8kg

Onsite Field 3A Transformer Winding Resistance Tester 0Onsite Field 3A Transformer Winding Resistance Tester 1
