1000mA AC220V 380V Handheld Leakage Current Tester,Leakage protector tester

Product Details

Place of Origin: China

Brand Name: GDZX

Certification: ISO9001

Model Number: LBQ-III

Payment & Shipping Terms

Minimum Order Quantity: 1Set

Price: US $201.00-359.00 / Set

Packaging Details: packing bag

Delivery Time: 8-20 work day

Payment Terms: L/C, T/T, Western Union, MoneyGram,, D/A, D/P,WeChat

Supply Ability: 1200Sets/ year

Get Best Price
Product Details
Highlight:

1000mA Leakage Current Tester

,

380V Handheld Leakage Current Tester

,

1000mA AC Leakage Current Tester

Rated Voltage:
AC220V、380V
Limited Test Voltage:
Below AC250V
Leakage Current Range:
30、50、75、100、150、200、250、300、500、1000mA
Leakage Operating Time Range:
0-799ms
Leakage Current Accuracy:
1 Class
Outside Dimension:
195×101×42mm
Rated Voltage:
AC220V、380V
Limited Test Voltage:
Below AC250V
Leakage Current Range:
30、50、75、100、150、200、250、300、500、1000mA
Leakage Operating Time Range:
0-799ms
Leakage Current Accuracy:
1 Class
Outside Dimension:
195×101×42mm
Product Description

Relay Protection Tester

0 ~ 1000mA AC Hand-Held Leakage Protection Switch Tester Equipment



Product introduction

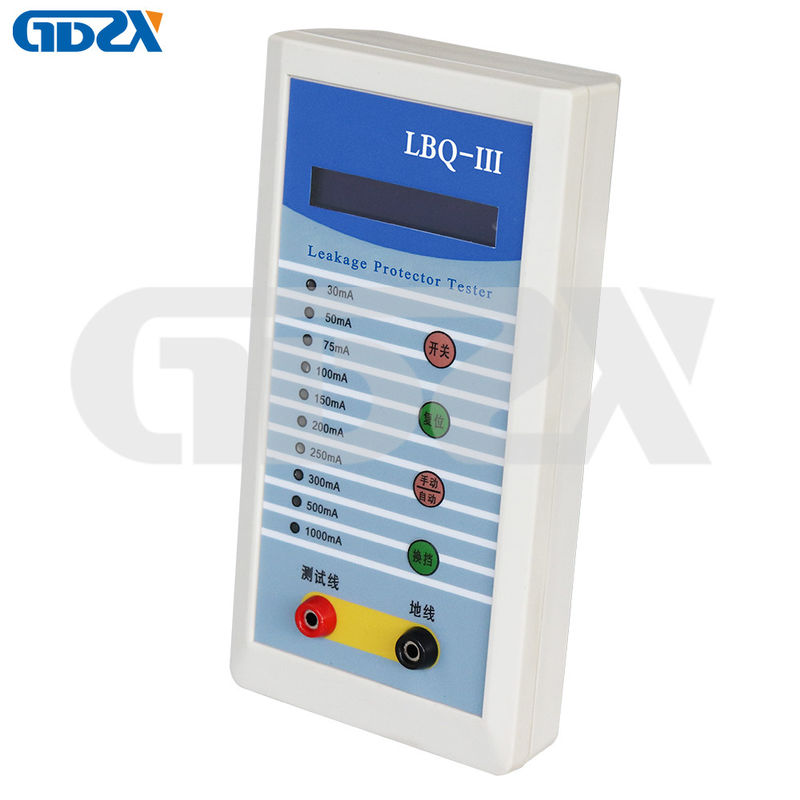

   LBQ-III Leakage Protector Tester is well designed and manufactured for online measuring the leakage operating current, leakage non-operating current, leakage operating time of the leakage protector; adopt 16 characters blue display, it is convenient and intuitive.

The range of leakage current is 0~1000mA, range of the leakage operating time is 0~799ms. It is a product with high accuracy, small size, light weight, exquisite appearance, easy to carry, is an ideal tool for a variety of leakage protector in site or in laboratory testing.

1000mA AC220V 380V Handheld Leakage Current Tester,Leakage protector tester 0



Features

1. Handheld type, small and esay to operate

2. Can measure single phase or three phase all kinds of leakage protector

3. Auto test leakage operating current

4. Directly test leakage operating time

5. LCD display, intuitive reading

1000mA AC220V 380V Handheld Leakage Current Tester,Leakage protector tester 1

Technical Indicators
Rated voltage AC220V,380V
Limited test voltage below AC250V
Leakage current range 30,50,75,100,150,200,250,300,500,1000mA
Leakage operating time range 0-799ms
Leakage current accuracy 1 class
Operating time display accuracy 0.5%(+-2d)
Working environment temperature 0 centigrade -40 centigrade
Working environment relative humidity less than 85%
Outside dimension 195*101*42mm
