Product Details
Place of Origin: Hubei, China
Brand Name: GDZX
Certification: ISO9001
Model Number: ZX5080
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: US $6299.00-$18000.00/Set
Packaging Details: Carton or Wooden Case
Delivery Time: 8-10 working days
Payment Terms: T/T, L/C
Supply Ability: 1200 sets/year
Product Name:: |
Three Phase AC Standard Power Source |
Frequency:: |
A.Adjusting Range: 40 Hz ~ 70 Hz; B.Resolution: 0.001 Hz; Accuracy: 0.005 Hz; |
AC Phase Voltage Output:: |
Range: 10V - 460V; Output Power: Rated 25 VA/phase; |
AC Current Output:: |
Range: 1mA~24A; Output Power: Rated Output 20 VA/Phase; |
Power Factor:: |
A.Adjusting Range:-1 ~ 0 ~ + 1; B.Resolution: 0.00001; Accuracy: 0.001; |
Phase Angle:: |
A.regulation Range: 0 ~ 359.99°; B.Resolution: 0.001°; Accuracy: 0.05°; |
Harmonic:: |
Output 2~31th Harmonic. |
Power Output:: |
A.Accuracy: Better Than 0.1% RG; B.Stability: Better Than 0.02% RG / 1 Min; |
Product Name:: |
Three Phase AC Standard Power Source |
Frequency:: |
A.Adjusting Range: 40 Hz ~ 70 Hz; B.Resolution: 0.001 Hz; Accuracy: 0.005 Hz; |
AC Phase Voltage Output:: |
Range: 10V - 460V; Output Power: Rated 25 VA/phase; |
AC Current Output:: |
Range: 1mA~24A; Output Power: Rated Output 20 VA/Phase; |
Power Factor:: |
A.Adjusting Range:-1 ~ 0 ~ + 1; B.Resolution: 0.00001; Accuracy: 0.001; |
Phase Angle:: |
A.regulation Range: 0 ~ 359.99°; B.Resolution: 0.001°; Accuracy: 0.05°; |
Harmonic:: |
Output 2~31th Harmonic. |
Power Output:: |
A.Accuracy: Better Than 0.1% RG; B.Stability: Better Than 0.02% RG / 1 Min; |
ZX5080 Three-phase AC Standard Power Source
Product introduction
ZX5080 Three-phase AC Standard Power Source adopts meter source integrated structure, full digital closed-loop standard source technology, embedded system, large screen TFT color LCD, CPLD chip and a series of advanced devices such as high-precision A/D and D/A. It has small volume and light weight. It can be widely used in electric energy measurement industry, electrical laboratory and other relevant departments, and is easy to carry to the site.
Features
1.Design with touch panel and mask button, massive information to see and simple to use.
2.Built-in standard energy meter for digital closed loop feedback, U, I, Φ, F, W, VAR, VA, PF all for reference.
3.Perfect over circuit, over voltage. short circuit, open circuit, over heat, over load protection.
4.Independent control on Three phase voltage current circuits, every phase voltage current parameters can be regulated.
5.Auto shift range, can freely preset rated value.
6.Multiple choose of voltage, current, phase regulation test point.
7.With R232 communication interface for PC control and software upgrade.
8.Two accuracy levels 0.05 or 0.01 for options.
Technical Indicators
|
1. Source Output:
|
1) AC Phase voltage output: a. Regulation fineness: 0.01% RG; b. Resolution: 6 effective digits; c. Accuracy: better than 0.1% RG; d. Stability: better than 0.02%RG/ 2 min; e. Distortion degree: <0.2% (non capacitive load); f. Output power: rated 25 VA/phase; g. Full load regulation rate: ≤0.01% RG; h. Range: 10V - 460V; i. Four gears: 57.7 V, 100 V, 220 V, 380 V, switch automatically; j. Long-term stability: ± 60 PPM/year; |
|
2) AC current output: a. Adjust fineness: 0.01% RG; b. Accuracy: better than 0.1% RG; c. Resolution: 6 effective digits; d. Stability: <0.02% RG / 1 min; e. Distortion degree: < 0.5%; f. Output power: rated output 20 VA/Phase; g. Full load regulation rate: 0.01% RG; h. Range: 1mA~24A; i. Gears: 0.2A, 1A, 5A, 20A, switch automatically; |
|
|
3) Power output: a. Accuracy: better than 0.1% RG; b. Stability: better than 0.02% RG / 1 min; c. Resolution: 6 effective digits ( active power, reactive power, apparent power); |
|
|
4) Power factor: a. Adjusting range:-1 ~ 0 ~ + 1; b. Resolution: 0.00001; c. Accuracy: 0.001; |
|
|
5) Phase angle: a. regulation range: 0 ~ 359.99°; b. Resolution: 0.001°; c. Accuracy: 0.05°; |
|
|
6) Frequency: a. Adjusting range: 40 Hz ~ 70 Hz; b. Resolution: 0.001 Hz; c. Accuracy: 0.005 Hz; |
|
|
7) Harmonic: Output 2~31th harmonic. |

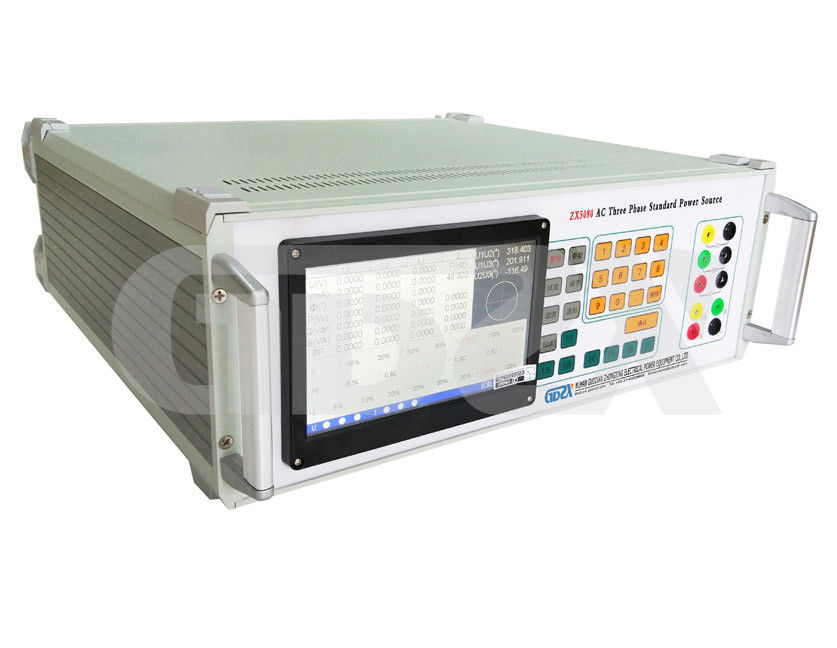

Product pictures
PACKING AND SHIPPING
(1)We will ship products within 7-15 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
If you need detailed specification, please feel free to contact us.
