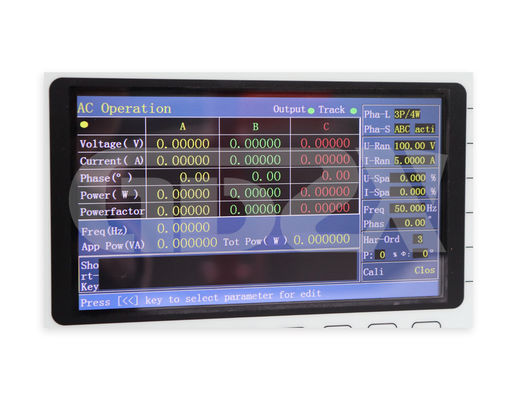

ARM FPGA 40HZ~1kHz AC DC Three Phase Meter Calibration Equipment

ARM FPGA 40HZ~1kHz AC DC Three Phase Meter Calibration Equipment
ARM FPGA 40HZ~1kHz AC DC Three Phase Meter Calibration Equipment ARM FPGA 40HZ~1kHz AC DC Three Phase Meter Calibration Equipment ARM FPGA 40HZ~1kHz AC DC Three Phase Meter Calibration Equipment ARM FPGA 40HZ~1kHz AC DC Three Phase Meter Calibration Equipment ARM FPGA 40HZ~1kHz AC DC Three Phase Meter Calibration Equipment ARM FPGA 40HZ~1kHz AC DC Three Phase Meter Calibration Equipment

Large Image :  ARM FPGA 40HZ~1kHz AC DC Three Phase Meter Calibration Equipment

Product Details:
Place of Origin: China
Brand Name: GDZX
Certification: ISO9001
Model Number: ZX3030B
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: US $14599.00-24000.00/Set
Packaging Details: Packing wooden case or carton
Delivery Time: 8-20 working days
Payment Terms: L/C, T/T
Supply Ability: 1200 Sets/Year
Detailed Product Description
Product Name:: AC/DC Three Phase Standard Power Source Working Power Supply:: Single Phase 220V±10%, 50Hz±5%;
Working Environment:: 20℃±10℃, ≤85%RH; DC Voltage Range:: 75mV, 1V, 3V, 7.5V, 15V, 30V
AC Output:: Range: 25V, 50V, 110V, 200V, 400V, 600V Output Frequency:: 45 Hz ~ 65 Hz
Output Phase:: Range: 0 ~ 359.99°; Output Harmonic:: Orders: 2~51 Orders;
Size And Weight:: 65*56*35, 44kg;
High Light:

ARM FPGA Meter Calibration Equipment

,

AC DC Meter Calibration Equipment

,

ARM FPGA Calibration Device

Electrical Power Calibrator

ZX3030B AC/DC Three Phase Standard Power Source



Introduction

   ZX3030B AC/DC Three Phase Standard Power Source adopts advance ARM+FPGA, high precision D/A conversion and DDS technologies, can set up and regulate parameters of voltage, current, frequency, phase etc in a long period of time, via analog closed loop feedback and digital PID control.

ARM FPGA 40HZ~1kHz AC DC Three Phase Meter Calibration Equipment 0





Features

1. Can be used to test errors and variance caused by voltage, current, waveform or power factor change, for a variety of metering instrument such as energy meter, voltmeter, ammeter, wattmeter, frequency meter, power factor meter, phase meter

2. Can generate distorted wave with 2~32 order harmonic, harmonic number, order, amplitude and phase position to base wave can be controlled by programs

3. Operational amplifier work frequency 40HZ~1kHz, good linearity, dual output protection, High fidelity output signal and high shock-proof ability

4. With RS232 and USB(optional) communication interface for PC connection

5. With aluminum alloy carrying box, which look nice, and with little weight

ARM FPGA 40HZ~1kHz AC DC Three Phase Meter Calibration Equipment 1

Technical Indicators
1. AC output

Voltage scope: 0 - 600V

Range: 25V, 50V, 110V, 200V, 400V, 600V

Current scope: 0 ~ 24A

Rated current range: 0.1A,0.5A,1A,5A,10A,20A;

Voltage current regulation range: 0~120%;

Voltage current regulation fineness: 5×10-5;

Voltage current error ≤0.03%(Rd)±0.02%(full range),0.05 level;

Voltage current output power: every rated range full scale 100% ≥ 20W

Output frequency:

Range: 45 Hz ~ 65 Hz

Resolution: 0.001 Hz

Accuracy: 0.01 Hz

Output phase:

Range: 0 ~ 359.99°

fineness: 0.010

Accuracy: 0.01°

Output Harmonic:

Orders: 2~51 orders

Amplitude: 0~20%

Each order phase position fineness: 0.010·N(N is harmonic order number)
Output Power

Output power scope: ranged current range and rated voltage range can be mixed arbitrarily.

Accuracy: 0.1, 0.05 level within rated range (reactive power accuracy will be one level lower)

Output waveform distortation: AC voltage current ≤0.3%

Energy Meter measurement: Integrated error: 0.1,0.05% FS (impulse output ≤90kHz, three phase rated vaule=60kHz)
2. DC output

DC voltage range:



75mV,1V,3V,7.5V,15V,30V, output capacitance: 100mA;

75V,150V,300V,600V,1000V, output capacitance: 40mA;

DC current range:

30uA,300uA,3mA,30mA,maximum output capacitance: 9VA;

300mA,0.5,1,2.5,5A ,10A ,20A maximum output capacitance 10VA;

DC voltage, current regulation range: 0~120% FS, fineness: 5×10-5
Rated Voltage range accuracy: error ≤0.06%(Rd)±0.04%(full range), 0.1 level;
error≤0.03%(Rd)±0.02%(full range), 0.05 level

DC 75mV output (load≥200Ω) accuracy

error≤0.12%(Rd)±0.08%(full range), 0.2 level

error≤0.06%(Rd)±0.04%(full range), 0.1 level

3.Others:
Working power supply: Single phase 220V±10%, 50Hz±5%
Working environment: temperature 20℃±10℃ relative humidity≤85%RH
Size and Weight: 460*480*200mm, 18kg



Product pictures

ARM FPGA 40HZ~1kHz AC DC Three Phase Meter Calibration Equipment 2ARM FPGA 40HZ~1kHz AC DC Three Phase Meter Calibration Equipment 3

ARM FPGA 40HZ~1kHz AC DC Three Phase Meter Calibration Equipment 4ARM FPGA 40HZ~1kHz AC DC Three Phase Meter Calibration Equipment 5

ARM FPGA 40HZ~1kHz AC DC Three Phase Meter Calibration Equipment 6ARM FPGA 40HZ~1kHz AC DC Three Phase Meter Calibration Equipment 7
