Product Details
Place of Origin: China
Brand Name: GDZX
Certification: ISO9001
Model Number: ZX3030H
Payment & Shipping Terms
Minimum Order Quantity: 1Set
Price: US $28199.00-35000/SET
Packaging Details: Carton or Wooden Case
Delivery Time: 8-20 working days
Payment Terms: L/C, T/T
Supply Ability: 1200Sets/ year
Product Name: |
Three-Phase Electrical Measuring Instrument Calibration Device |
AC Output Voltage Range: |
10、20、50、100、200、400、600V |
AC Output Current Range: |
0.1、0.25、0.5、1、2.5、5、10、25、50、100 |
Output Phase: |
Phase Drift Of Current To The Same Voltage: 0.000～359.990 |
Output Frequency: |
Regulation Range: 45～65Hz; Setting Value Accuracy : 5×10－5 |
Distortion Wave Output: |
Harmonic Order: 2-31 |
DC Output Current ( Auxiliary Range Not Included): |
UA：10、30、100、300; MA：1、3、10、30、100、300; A：1、3、10、30 |
DC Output Accuracy: |
0.05% |
Power Supply: |
Single Phase 220V±10%, 50HZ±5% |
Working Environment: |
Temperature 200℃±100℃, Relative Humidity ≤85%RH |
Dimension And Weight: |
1800*800*750mm3, 135kg |
Product Name: |
Three-Phase Electrical Measuring Instrument Calibration Device |
AC Output Voltage Range: |
10、20、50、100、200、400、600V |
AC Output Current Range: |
0.1、0.25、0.5、1、2.5、5、10、25、50、100 |
Output Phase: |
Phase Drift Of Current To The Same Voltage: 0.000～359.990 |
Output Frequency: |
Regulation Range: 45～65Hz; Setting Value Accuracy : 5×10－5 |
Distortion Wave Output: |
Harmonic Order: 2-31 |
DC Output Current ( Auxiliary Range Not Included): |
UA：10、30、100、300; MA：1、3、10、30、100、300; A：1、3、10、30 |
DC Output Accuracy: |
0.05% |
Power Supply: |
Single Phase 220V±10%, 50HZ±5% |
Working Environment: |
Temperature 200℃±100℃, Relative Humidity ≤85%RH |
Dimension And Weight: |
1800*800*750mm3, 135kg |

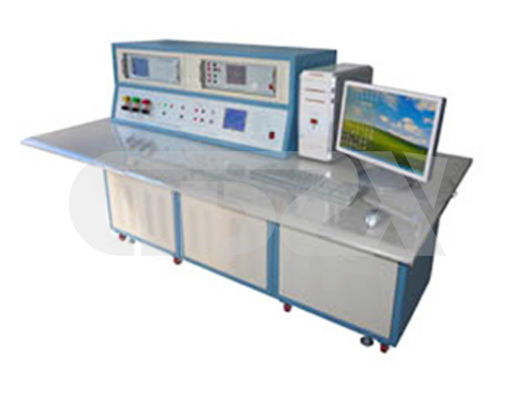

ZX3030H Three-Phase Electrical Measuring Instrument Calibration Device
ZX3030H Three-Phase Electrical Measuring Instrument Calibration Device consists of a programmable three-phase calibration source, a DC standard source, a 0.05 level three-phase sampling multi-function standard meter and a computer equipped with calibration and management software. The technical indicators of the device comply with relevant national and industrial standards and verification regulations. The output of meter calibration source is stable, safe, reliable and convenient to use; The standard meter is accurate and stable, with complete functions, and one meter can be used for many purposes. The verification system composed of source meter and computer can automatically verify the meters to be tested with corresponding electricity output information, and provide verification reports that meet the requirements of the regulations.
Features
1. Can semi-automatically or manually test the basic error of a variety of power frequency meters (voltmeter,ammeter, power meter, frequency meter, power factor meter, phase meter), and test the change value cause by influence of voltage, current, waveform and power factor.
2. Can automatically measure the basic errors of electric transducers (voltage transducer, current transducer, power transducer, frequency transducer, power factor transducer), and the change value caused by influence of votalge, current, waveform and power factors etc.
3. Can generate distortion wave with 2~31 order harmonic, harmonic number, order, amplitude and phase to fundamental wave all can be program controlled.
4.Power amplifier’s working frequency 40hz~1khz, good linearity. Current power amplifier is constant-current source, and voltage power amplifier is constant-voltage source.
5. Testing by pc automatic control or manual control, capaple of data analyzing and managing.
6. Can auto calibrate energy meters.
Technical Indicators
| 1. AC output voltage current: |
|
| 2. Output phase: |
Phase drift of current to the same voltage: 0.000～359.990; Regulation fineness: 0.010; |
| 3. Output frequency: |
Regulation range: 45～65Hz; Setting value accuracy : 5×10－5; |
| 4. Distortion wave output: |
|
| 5. Three phase angle symmetry: |
|
| 6. DC output voltage ( auxiliary range not included): | Range: mV:100,300 V:1,3,10,30,100,300,600,1000 |
| 7. DC output current (auxiliary range not included): | uA:10,30,100,300 mA:1,3,10,30,100,300 A:1,3,10,30 |
| 8. DC output capacity: | maximum 30W |
| 9. DC output regulation range and fineness: |
Range: 0～120% ( but voltage 1000V, current 30A: 105%) Fineness: 0.002% |
| 10. DC output accuracy: | 0.05% |
| 11. Stability of DC full range output: | ≤±0.01% RG/1min |
| 12. Error caused by ripple and noise voltage: | ≤±0.01% RG |
| 13. Error caused by loading change of no-load to full-load: | ≤±0.01% RG |
| 14. Device accuracy class: 0.05 |
1) allowed measuring error of voltage/current/active power: (5V≤U≤1000V,0.1A≤I≤100A) 0.05%; 2) allowed measuring error of active power energy: (25V≤U≤800V, 0.1A≤I≤100A) 0.05%; 3) allowed measuring error of reactive power/energy: 0.1%; |
|
4) phase measuring error: ±0.050 5) power factor measuring error: ±0.0002 |
|
| 15. Power supply: | Single phase 220V±10%, 50HZ±5% |
| 16. Working environment: | Temperature: 200℃±100℃, relative humidity: ≤85%RH |
| 17. Dimension and weight: | 1800*800*750mm3, 135kg |
PACKING AND SHIPPING
(1)We will ship products within 7-15 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
If you need detailed specification, please feel free to contact us.
