Home > products > High Voltage Test Equipment > ZXSBF 375 KVA Third Harmonic Generator 380V 50Hz Sine Wave

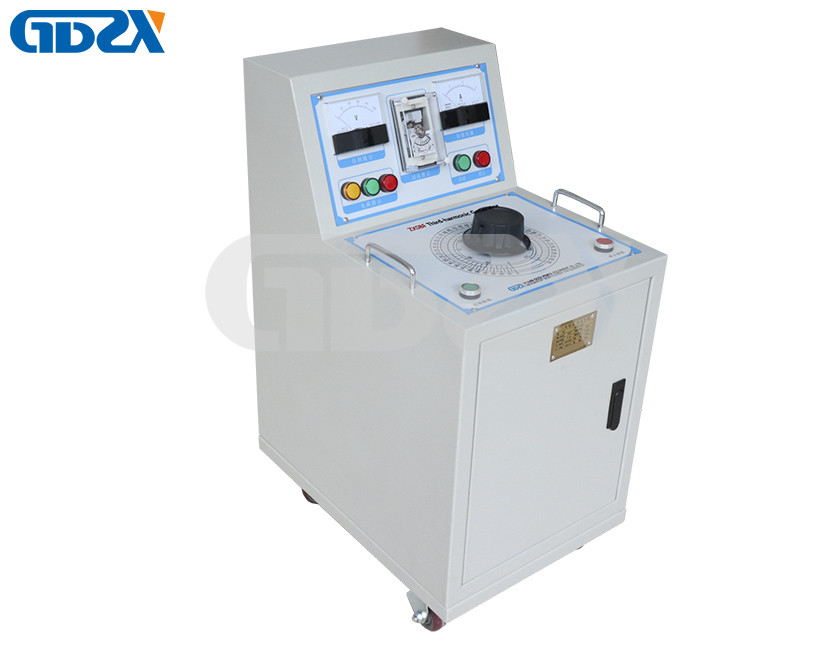

ZXSBF 375 KVA Third Harmonic Generator 380V 50Hz Sine Wave
ZXSBF 375 KVA Third Harmonic Generator 380V 50Hz Sine Wave
ZXSBF 375 KVA Third Harmonic Generator 380V 50Hz Sine Wave
ZXSBF 375 KVA Third Harmonic Generator 380V 50Hz Sine Wave
ZXSBF 375 KVA Third Harmonic Generator 380V 50Hz Sine Wave

ZXSBF 375 KVA Third Harmonic Generator 380V 50Hz Sine Wave

Product Details

Place of Origin: China

Brand Name: GDZX

Certification: ISO

Model Number: ZXSBF Third-harmonic Generator

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD12600/set

Payment Terms: L/C,T/T

Get Best Price

Product Details

Product Description
Product Details
Highlight:

375 KVA Third Harmonic Generator

,

Third Harmonic Generator 380V 50Hz

Product Description

ZXSBF Third-harmonic Generator

This test set is designed to meet frequency multiplied Induced Over-voltage Withstand Test requirements, which are applied to testing of series excited High Potential Transformers with voltage system at 35-220kV.

It can evaluate the dielectric strength of transformers, carry on induced voltage tests on mini transformer windings, or work as a short time 150Hz power source.



Features

1. Easy to operate, with reliable performance.

2. Suitable for induced over voltage withstand test.

Technical Indicators

1. Input Voltage: Three-phase 380V 50Hz Sine wave

2. Output voltage: 0-300V, 0-500V, 0-1000V, 150Hz

3. Wave distortion: ≤5%

4. Output capacity: 0-375kVA

5. No-load operation time: ≤5mins

6. Loading operation time: 40~60 seconds

Tags:

electronic test equipment,

high potential test equipment,

high voltage test kit
