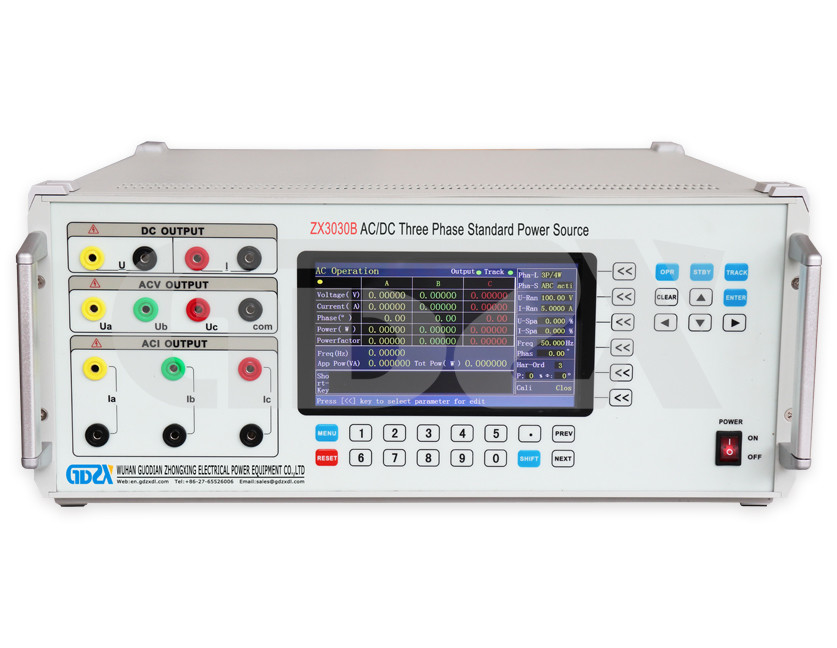

Three Phase AC DC Standard Power Source High Precision And High Power

Three Phase AC DC Standard Power Source High Precision And High Power
Three Phase AC DC Standard Power Source High Precision And High Power Three Phase AC DC Standard Power Source High Precision And High Power Three Phase AC DC Standard Power Source High Precision And High Power Three Phase AC DC Standard Power Source High Precision And High Power Three Phase AC DC Standard Power Source High Precision And High Power Three Phase AC DC Standard Power Source High Precision And High Power

Large Image :  Three Phase AC DC Standard Power Source High Precision And High Power

Product Details:
Place of Origin: China
Brand Name: GDZX
Certification: ISO9001
Model Number: ZX3030B
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: $13629.00 - 25000.00/Set
Packaging Details: Carton box
Delivery Time: 8-20 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 1200Set/year
Detailed Product Description
Working Power Supply: Single Phase 220V±10%, 50Hz±5% Range: 45 Hz ~ 65 Hz
Current Scope: 0 ~ 24A DC Voltage Range: 75mV,1V,3V,7.5V,15V,30V
AC Voltage Scope: 0 - 600V Rated Current Range: 0.1A、0.5A、1A、5A、10A、20A
Voltage Current Regulation Range: 0~120% Size And Weight: 460×480×200mm, 18kg
Working Environment: Temperature 20℃±10℃ Relative Humidity≤85%RH
High Light:

AC DC Standard Power Source

,

Three Phase Standard Power Source

,

Three Phase AC DC Power Source

High Precision and High Power Three Phase AC/DC Standard Power Source



Introduction

   ZX3030B AC/DC Three Phase Standard Power Source adopts advance ARM+FPGA, high precision D/A conversion and DDS technologies, can set up and regulate parameters of voltage, current, frequency, phase etc in a long period of time, via analog closed loop feedback and digital PID control.

Three Phase AC DC Standard Power Source High Precision And High Power 0





Features

1. Can be used to test errors and variance caused by voltage, current, waveform or power factor change, for a variety of metering instrument such as energy meter, voltmeter, ammeter, wattmeter, frequency meter, power factor meter, phase meter

2. Can generate distorted wave with 2~32 order harmonic, harmonic number, order, amplitude and phase position to base wave can be controlled by programs

3. Operational amplifier work frequency 40HZ~1kHz, good linearity, dual output protection, High fidelity output signal and high shock-proof ability

4. With RS232 and USB(optional) communication interface for PC connection

5. With aluminum alloy carrying box, which look nice, and with little weight

Three Phase AC DC Standard Power Source High Precision And High Power 1

Technical Indicators
1. AC output

Voltage scope: 0 - 600V

Range: 25V, 50V, 110V, 200V, 400V, 600V

Current scope: 0 ~ 24A

Rated current range: 0.1A,0.5A,1A,5A,10A,20A;

Voltage current regulation range: 0~120%;

Voltage current regulation fineness: 5×10-5;

Voltage current error ≤0.03%(Rd)±0.02%(full range),0.05 level;

Voltage current output power: every rated range full scale 100% ≥ 20W

Output frequency:

Range: 45 Hz ~ 65 Hz

Resolution: 0.001 Hz

Accuracy: 0.01 Hz

Output phase:

Range: 0 ~ 359.99°

fineness: 0.010

Accuracy: 0.01°

Output Harmonic:

Orders: 2~51 orders

Amplitude: 0~20%

Each order phase position fineness: 0.010·N(N is harmonic order number)
Output Power

Output power scope: ranged current range and rated voltage range can be mixed arbitrarily.

Accuracy: 0.1, 0.05 level within rated range (reactive power accuracy will be one level lower)

Output waveform distortation: AC voltage current ≤0.3%

Energy Meter measurement: Integrated error: 0.1,0.05% FS (impulse output ≤90kHz, three phase rated vaule=60kHz)
2. DC output

DC voltage range:



75mV,1V,3V,7.5V,15V,30V, output capacitance: 100mA;

75V,150V,300V,600V,1000V, output capacitance: 40mA;

DC current range:

30uA,300uA,3mA,30mA,maximum output capacitance: 9VA;

300mA,0.5,1,2.5,5A ,10A ,20A maximum output capacitance 10VA;

DC voltage, current regulation range: 0~120% FS, fineness: 5×10-5
Rated Voltage range accuracy: error ≤0.06%(Rd)±0.04%(full range), 0.1 level;
error≤0.03%(Rd)±0.02%(full range), 0.05 level

DC 75mV output (load≥200Ω) accuracy

error≤0.12%(Rd)±0.08%(full range), 0.2 level

error≤0.06%(Rd)±0.04%(full range), 0.1 level

3.Others:
Working power supply: Single phase 220V±10%, 50Hz±5%
Working environment: temperature 20℃±10℃ relative humidity≤85%RH
Size and Weight: 460*480*200mm, 18kg



Product pictures

Three Phase AC DC Standard Power Source High Precision And High Power 2

Three Phase AC DC Standard Power Source High Precision And High Power 3Three Phase AC DC Standard Power Source High Precision And High Power 4

Three Phase AC DC Standard Power Source High Precision And High Power 5Three Phase AC DC Standard Power Source High Precision And High Power 6

Three Phase AC DC Standard Power Source High Precision And High Power 7Three Phase AC DC Standard Power Source High Precision And High Power 8



Company introduction

     Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.

Three Phase AC DC Standard Power Source High Precision And High Power 9

Three Phase AC DC Standard Power Source High Precision And High Power 10

Three Phase AC DC Standard Power Source High Precision And High Power 11



Service and Warranty



Service

* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.

* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user’s questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others.

Warranty
* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.
* Our products are guaranteed with one year warranty and life-long tech support.
* Provide solutions within 24 hours when there is problems feedback from customer.


PACKING AND SHIPPING

(1)We will ship products within 8-20 working days after the receipt of confirmation of your payment.

(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.

If you need detailed specification, please feel free to contact us.
