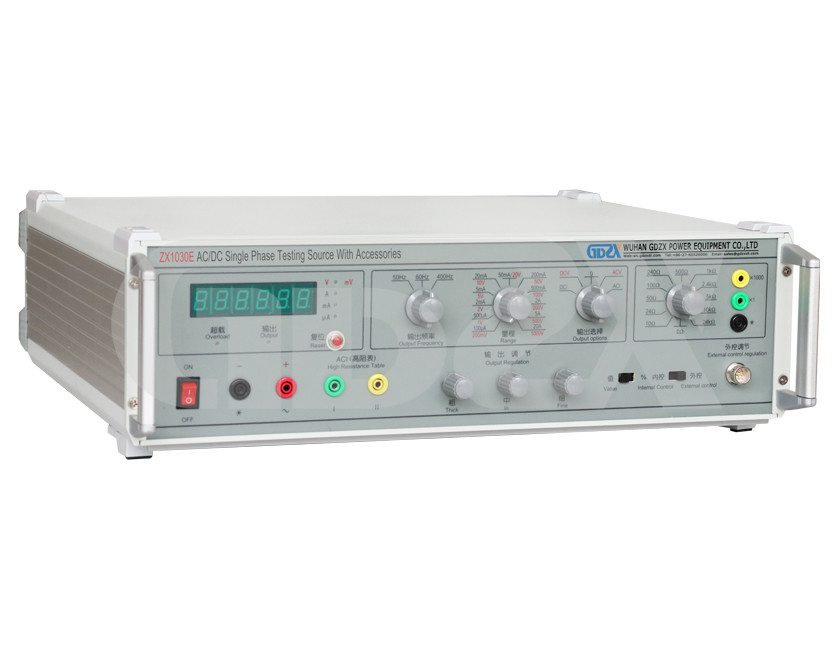

0~750A 0~1000A AC And DC Power Sources Ohmmeter Testing

Product Details

Place of Origin: Hubei, China

Brand Name: GDZX

Certification: ISO9001

Model Number: ZX1030E

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: US $2958.00-4859.00/SET

Packaging Details: Carton or Wooden Case

Delivery Time: 8-15 working days

Payment Terms: T/T, L/C

Supply Ability: 1200 Sets/year

Get Best Price
Product Details
Highlight:

1000A AC And DC Power Sources

,

750A AC And DC Power Sources

,

Ohmmeter AC And DC Power Sources

Product Name:
AC And DC Power Sources
Voltage Current Output Range And Accuracy::
(23℃±2℃ > 10% Range);
Output Frequency And Accuracy::
50 Hz、60 Hz、400 Hz: <1%
AC Distortion::
<0.5%
DC Ripple Coefficient::
<0.1%
Size And Weight::
73*59*32cm; 21KG
Usage:
Ohmmeter Testing
Product Name:
AC And DC Power Sources
Voltage Current Output Range And Accuracy::
(23℃±2℃ > 10% Range);
Output Frequency And Accuracy::
50 Hz、60 Hz、400 Hz: <1%
AC Distortion::
<0.5%
DC Ripple Coefficient::
<0.1%
Size And Weight::
73*59*32cm; 21KG
Usage:
Ohmmeter Testing
Product Description

0~750A 0~1000A AC And DC Power Sources Ohmmeter Testing



Product introduction



AC And DC Power Sources are used for testing and calibrating all kinds of ammeter, voltmeter, ohmmeter under 0.2 level. It can also be used as testing power source, matching with high level standard meters to calibrate ammeter, voltmeter, ohmmeter at 0.2 or higher level. There are two regulation modes: analog regulation (potentiometer) and digital regulation (keyboard).

0~750A 0~1000A AC And DC Power Sources Ohmmeter Testing 0


Features

1. 5½ LED digitally display output by actual value or by percentage;



2. AC/DC current output range: 0~100 uA ~500uA ~2mA~5mA~20mA ~50mA ~200mA ~500mA ~2A~5A~20A~30A(optional)~50A(optional);



3. AC/DC voltage output range: 0~200mV~1V~2V~5V~10V~20V~50V~100V~200V~500V~1000V;



4. Three AC frequency for option: 50Hz,60 Hz,400 Hz;



5. Auto protection or manual resetting function for over load;



6. Over load rang is 10% for each level of voltage, current;



7. Clip-on transformer testing: matching with our product of standard coil, measuring range AC 0~750A ( above 1000A for part of meters) DC 0~1000A, error: ±0.3%;

0~750A 0~1000A AC And DC Power Sources Ohmmeter Testing 1

Technical Indicators

1. Stability:

DC < 0.01% of full range / 2 min;

AC < 0.03% of full range / 2 min;

2. AC distortion: <0.5%
3. DC ripple coefficient: <0.1%
4. Output frequency and accuracy: 50 Hz,60 Hz,400 Hz: <1%
5. Voltage Current Output range and accuracy: (23℃±2℃ > 10% range);
6. Power supply consumption: AC DC 220V±10%, 50 Hz±1Hz, <180VA;
7. Working environment: Temperature: 5℃~35℃; relative humidity: ≤80%;
8. Working time: continuous
9. Size and weight: 73*59*32cm; 21KG



Product pictures

0~750A 0~1000A AC And DC Power Sources Ohmmeter Testing 20~750A 0~1000A AC And DC Power Sources Ohmmeter Testing 3

0~750A 0~1000A AC And DC Power Sources Ohmmeter Testing 40~750A 0~1000A AC And DC Power Sources Ohmmeter Testing 50~750A 0~1000A AC And DC Power Sources Ohmmeter Testing 60~750A 0~1000A AC And DC Power Sources Ohmmeter Testing 7





PACKING AND SHIPPING
(1)We will ship products within 7-15 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
If you need detailed specification, please feel free to contact us.0~750A 0~1000A AC And DC Power Sources Ohmmeter Testing 8





Company introduction
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.

0~750A 0~1000A AC And DC Power Sources Ohmmeter Testing 9



0~750A 0~1000A AC And DC Power Sources Ohmmeter Testing 10



0~750A 0~1000A AC And DC Power Sources Ohmmeter Testing 11

0~750A 0~1000A AC And DC Power Sources Ohmmeter Testing 12






0~750A 0~1000A AC And DC Power Sources Ohmmeter Testing 130~750A 0~1000A AC And DC Power Sources Ohmmeter Testing 140~750A 0~1000A AC And DC Power Sources Ohmmeter Testing 15




Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user’s questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others.
Warranty
* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.
* Our products are guaranteed with one year warranty and life-long tech support.
* Provide solutions within 24 hours when there is problems feedback from customer.

0~750A 0~1000A AC And DC Power Sources Ohmmeter Testing 16





FAQ:



1.Q: Are you trading company or manufacturer?
A: We are manufacturer.

We have R&D department, OEM& ODM services available.



2.Q: How long is your delivery time?
A: We usually arrange shipment within 5-7 working days after checking the payment. However, for example, the delivery time of the complete set of test devices will be a little longer, which needs to be checked in real time.



3.Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample, but not for free; you need pay charge and the cost of freight.



4.Q: What is your term of payment?
A: Payment<=5000USD, 100% in advance. Payment>5000USD, 30% T/T in advance, balance before shipment.



5.Q: What is the payment method?
A: We can accept Bank Transfer, T/T.



6.Q: Will you provide OEM service?
A: OEM & ODM services available



7.Q: How long is the product warranty?
A: 1 year.
