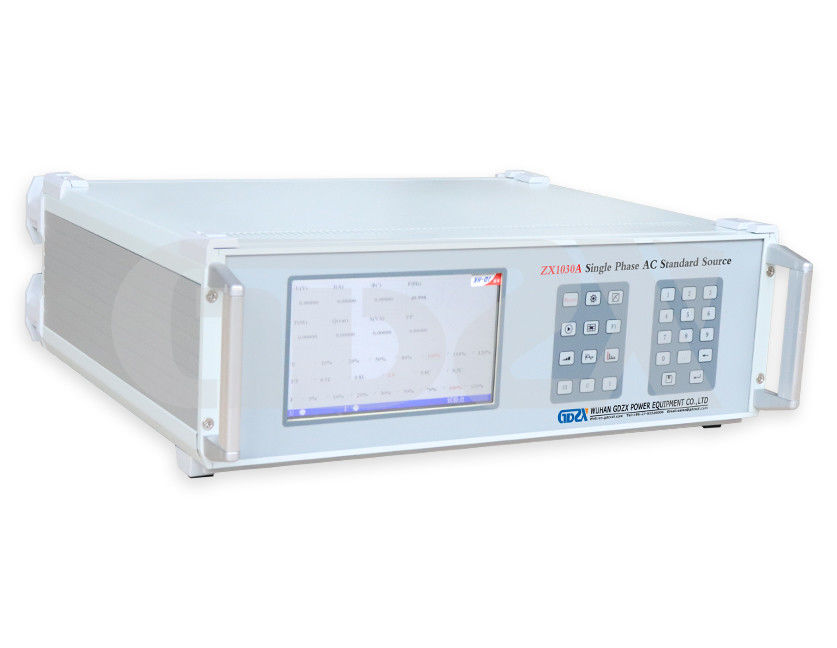

continuous Single Phase AC DC Power Source For ammeter voltmeter calibrating

Product Details

Place of Origin: Hubei, China

Brand Name: GDZX

Certification: ISO9001

Model Number: ZX1030E

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: US $2958.00-4859.00/SET

Packaging Details: Carton or Wooden Case

Delivery Time: 8-15 working days

Payment Terms: T/T, L/C

Supply Ability: 1200 Sets/year

Get Best Price
Product Details
Highlight:

Single Phase AC DC Power Source

,

Voltmeter Calibrating AC DC Power Source

,

Ammeter Calibrating AC DC Power Source

Product Name:
AC DC Power Source
Voltage Current Output Range And Accuracy::
(23℃±2℃ > 10% Range);
AC Distortion::
<0.5%
DC Ripple Coefficient::
<0.1%
Working Time::
Continuous
Application:
Ammeter Voltmeter Calibrating
Size And Weight::
73*59*32cm; 21KG
Product Name:
AC DC Power Source
Voltage Current Output Range And Accuracy::
(23℃±2℃ > 10% Range);
AC Distortion::
<0.5%
DC Ripple Coefficient::
<0.1%
Working Time::
Continuous
Application:
Ammeter Voltmeter Calibrating
Size And Weight::
73*59*32cm; 21KG
Product Description

Continuous Single Phase AC DC Power Source For Ammeter Voltmeter Calibrating



Product introduction



AC DC Power Source is one of the series products of high-precision multi-function standard source [source and meter integrated portable verification device] developed by our company. The core technology of this instrument is ARM + FPGA; high-speed and high-precision D / A converter and direct digital synthesis technology (DDS). The product has built-in high-precision parameter standards, adopts analog closed-loop feedback and digital PID adjustment, so that the output voltage, current, frequency, phase, power, electric energy (option), etc

continuous Single Phase AC DC Power Source For ammeter voltmeter calibrating 0


Features

1. 5½ LED digitally display output by actual value or by percentage;



2. AC/DC current output range: 0~100 uA ~500uA ~2mA~5mA~20mA ~50mA ~200mA ~500mA ~2A~5A~20A~30A(optional)~50A(optional);



3. AC/DC voltage output range: 0~200mV~1V~2V~5V~10V~20V~50V~100V~200V~500V~1000V;



4. Three AC frequency for option: 50Hz,60 Hz,400 Hz;



5. Auto protection or manual resetting function for over load;



6. Over load rang is 10% for each level of voltage, current;



7. Clip-on transformer testing: matching with our product of standard coil, measuring range AC 0~750A ( above 1000A for part of meters) DC 0~1000A, error: ±0.3%;

continuous Single Phase AC DC Power Source For ammeter voltmeter calibrating 1

Technical Indicators

1. Stability:

DC < 0.01% of full range / 2 min;

AC < 0.03% of full range / 2 min;

2. AC distortion: <0.5%
3. DC ripple coefficient: <0.1%
4. Output frequency and accuracy: 50 Hz,60 Hz,400 Hz: <1%
5. Voltage Current Output range and accuracy: (23℃±2℃ > 10% range);
6. Power supply consumption: AC DC 220V±10%, 50 Hz±1Hz, <180VA;
7. Working environment: Temperature: 5℃~35℃; relative humidity: ≤80%;
8. Working time: continuous
9. Size and weight: 73*59*32cm; 21KG



Product pictures

continuous Single Phase AC DC Power Source For ammeter voltmeter calibrating 2continuous Single Phase AC DC Power Source For ammeter voltmeter calibrating 3

continuous Single Phase AC DC Power Source For ammeter voltmeter calibrating 4continuous Single Phase AC DC Power Source For ammeter voltmeter calibrating 5continuous Single Phase AC DC Power Source For ammeter voltmeter calibrating 6continuous Single Phase AC DC Power Source For ammeter voltmeter calibrating 7





PACKING AND SHIPPING
(1)We will ship products within 7-15 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
If you need detailed specification, please feel free to contact us.continuous Single Phase AC DC Power Source For ammeter voltmeter calibrating 8
