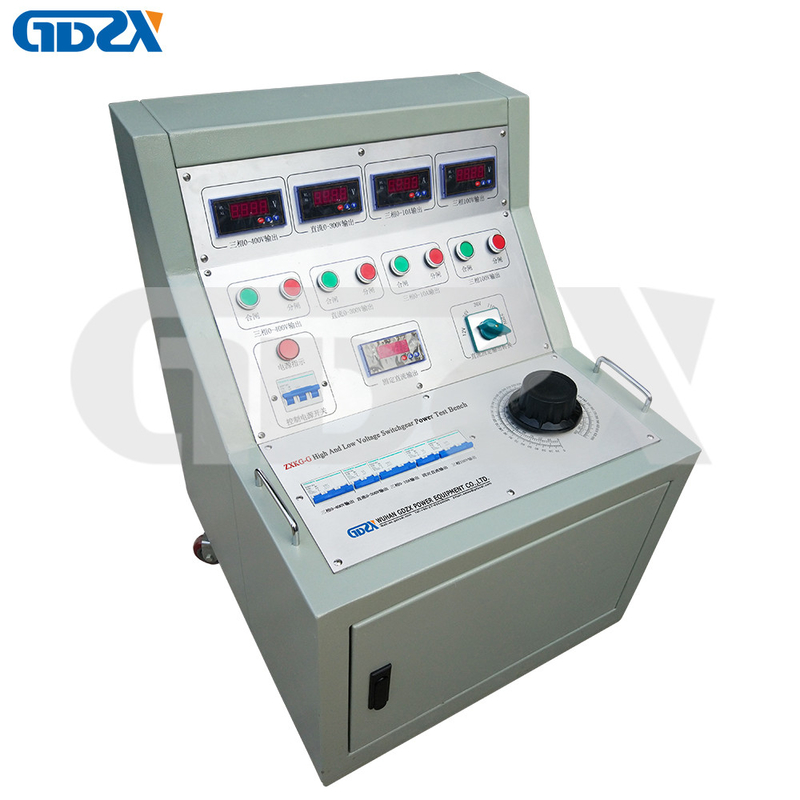

Three Phase High and Low Voltage Switchgear Power Test Equipment

High-low voltage switchgear electrifying test bed is used for high and low voltage switchgear producers to do various electrifying test before products leaving the factory. It can provide all kinds of ac, dc power, and is convenient for test to check if switch equipment is normal or not with much efficiency.

Features

• Intuitive reading: digitally display tested current, voltage and power factor
• High accuracy
• Accurate protection function: each circuit has air switch as protection.
• Easy carrying: small size, light weight comparing to other products

Technique Parameter:

Input Power: Three-phase four-wire AC380V

Output voltage and current

1. Three-phase AC100V output (fixed value) group 1

2. Three-phase AC 0-10A output (<100V value can be adjusted) group 1

3. AC 0-400V output, Current <10A group 1

4. DC operating voltage output DC 0 ~ 260V, group 1

5. Single-phase AC220V output (fixed value, plug form) in group 2

6. Three-phase AC380V output (fixed value, wiring terminal) group 1

7. DC fixed voltage 24V, 36V, 11V, 220V output group 1

8. Overall dimensions: 550 * 750* 800 mm

9. Weight: 45kg
