Portable Digital Underground Cable Fault Distance Locator 35KV AC 220V±10%

Portable Digital Underground Cable Fault Distance Locator 35KV AC 220V±10%
Portable Digital Underground Cable Fault Distance Locator 35KV AC 220V±10% Portable Digital Underground Cable Fault Distance Locator 35KV AC 220V±10% Portable Digital Underground Cable Fault Distance Locator 35KV AC 220V±10% Portable Digital Underground Cable Fault Distance Locator 35KV AC 220V±10% Portable Digital Underground Cable Fault Distance Locator 35KV AC 220V±10%

Large Image :  Portable Digital Underground Cable Fault Distance Locator 35KV AC 220V±10%

Product Details:

Place of Origin: CHINA
Brand Name: GDZX
Certification: ISO9001
Model Number: ZX-A10

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: carton
Payment Terms: L/C, T/T, Western Union, MoneyGram
Detailed Product Description
Distance: 5m ~ 40Km Sampling F: 15kHz
Operating Temperature:: -10ºC ~ 40ºC Power Supply: AC 110-270V Customizable
Maximum Detect Distance:: 30Km Power Supply:: AC 220V±10%
Detect Resolution:: 1m Coarse Positioning Accuracy:: ±2%
High Light:

underground cable fault locator equipment

,

underground wire fault locator

Portable digital Underground 35KV Cable Distance Test Cable Fault Locator


ZX-A10 cable fault tester

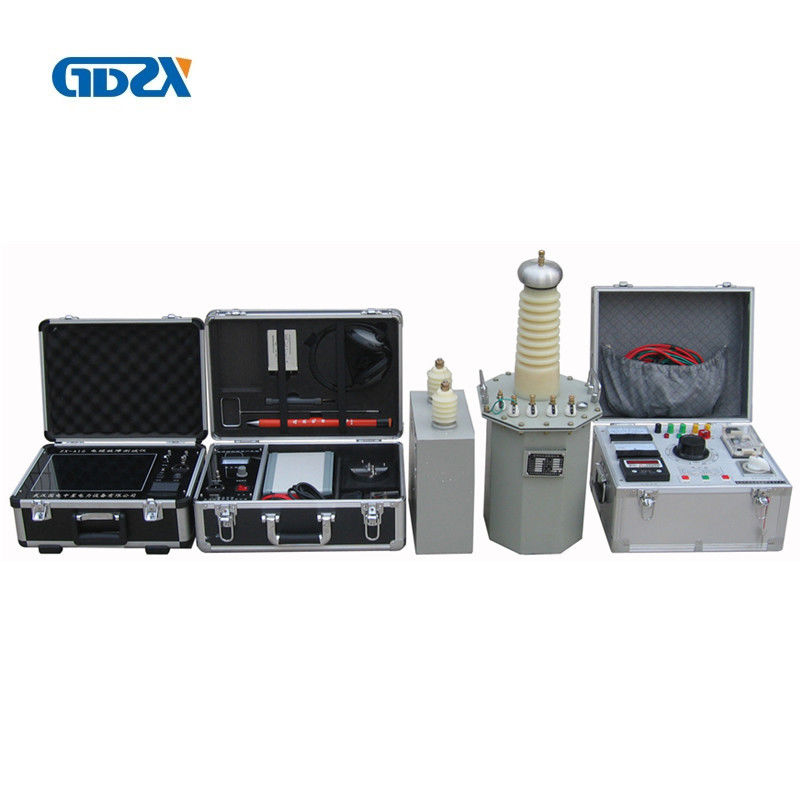

ZX-A10 CABLE FAULT LOCATOR integrated industrial embedded computer platform, Network Communications Service and USB communication system. The device consists 3 parts: main system, fault locator and cable line tester. It is used for cable fault location, cable line and depth test and daily maintenance of cable data. It can also be used for signal cable fault location for railway station and airport.

Features:

1. Embedded computer system into cable fault locator. Lithium-power supply for convenient field tests.
2. 12.1 inch touch-screen and windows XP system.
3. USB interface. 5 sampling frequency between 6.25 MHz to 100MHz for cable of different length.
4. Auto earch fault point and display the distance, the movement of double cursor can be accurate to 0.15m.

5. The waveform can be compressing or expanding freely.

6. System display two waveforms randomly which is close to standard waveform for your reference.
7. Total 40G waveforms and on-site wiring diagrams for your reference
8. Smart modular sampler to replace the on-site wiring, sampling totally separated with HV to ensure safety.

Portable Digital Underground Cable Fault Distance Locator 35KV AC 220V±10% 0Portable Digital Underground Cable Fault Distance Locator 35KV AC 220V±10% 1Portable Digital Underground Cable Fault Distance Locator 35KV AC 220V±10% 2Portable Digital Underground Cable Fault Distance Locator 35KV AC 220V±10% 3Portable Digital Underground Cable Fault Distance Locator 35KV AC 220V±10% 4Portable Digital Underground Cable Fault Distance Locator 35KV AC 220V±10% 5




Portable Digital Underground Cable Fault Distance Locator 35KV AC 220V±10% 6

Application:
1. Test cable fault for different voltage levels, different sections and different medium, including open circuit, short circuit, low resistance, high resistance leakage, high resistance failure flashover.
2. Testing signal cable fault for railway station, airport.
3. Testing wave propagation speed of the cable which length is known.
4. Testing the cable route and depth.
5. Display mode: 12.1 inch LCD (Windows XP)
6. Memory mode: Fixed and movable 20G/2G
7. Test methods: Low-voltage pulse method, impulse flash-over circuit method, flashover voltage method
8. Test distance: no less than 40km
9. The shortest testing distance (blind zone):5-10m
10. Location error: ±0.2m
11. Testing error: less than ±1%
12. Sampling frequency: 6.25MHz,10MHz,25MHz,50MHz,100MHz,(self-adaption)
13. Power: AC 220V±10% DC 12V(7AH)
14. Maximum power endurance: 4 hours


Path analyzer technical specifications:
1. Signal frequency: 15KHz sine wave
2. Output power: Pomax≥100W
3. Output impedence: Zo=Zc
4. Vibration mode: incontinuous
5. Net Weight: 9.8Kg
6. Ambient temperature: -10℃~+40℃
7. Overall dimension: 180mm×300mm×400mm
8. Relative humidity: RH≤85%(25℃)



Impulse Generator

1. DC output: 32kV, continuous adjustable

2. external capacitance: 1~8 F

3. impact time: 1~6 seconds

4. maximum pulse energy: 400 ~ 1800J

5. maximum output current: 40mA

6. voltage indication error: + 2%

7. supply voltage: 220VAC 50Hz

8. ambient temperature: -10℃~ +50℃

9. volume: 380 x 260 x 260 mm
