Intelligent digital Storage Battery Internal Resistance Tester

Intelligent digital Storage Battery Internal Resistance Tester
Intelligent digital Storage Battery Internal Resistance Tester Intelligent digital Storage Battery Internal Resistance Tester Intelligent digital Storage Battery Internal Resistance Tester Intelligent digital Storage Battery Internal Resistance Tester Intelligent digital Storage Battery Internal Resistance Tester Intelligent digital Storage Battery Internal Resistance Tester

Large Image :  Intelligent digital Storage Battery Internal Resistance Tester

Product Details:
Place of Origin: CHINA
Brand Name: GDZX
Certification: ISO9001
Model Number: ZX-NZY01
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: US $1799.00-4200.00/SET
Packaging Details: carton or wooden case
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 1200 sets/year
Detailed Product Description
Product Name: Storage Battery Internal Resistance Tester Voltage: 0.000V—25V DC
Resistance:: 0.001 MΩ--100mΩ Test Data Storage:  : 100,000 Cells Stored Internally
Voltmeter Resolution: 1mV; Power Supply: Li-ion Battery (4000mAh), 8~12hours Working Time After Full Charge
Operation Environment:: 0~40℃, 90% Relative Humidity, Non-condensing Tester Dimensions: L186*W98*H40 Mm
Analyzer Weight: 0.45KG
High Light:

battery internal resistance tester

,

battery internal resistance meter

ZX-NZY01 Storage Battery Internal Resistance Tester



Product introduction

ZX-NZY01 Storage Battery Internal Resistance Tester is a new generation of battery tester with touch-screen. It is strictly designed to evaluate and maintain all stationary power systems including Uninterruptible Power System.



Via accurate testing of resistance (or conductance) and voltage, it gives an indication of battery capacity and technical status. The measurement data can be read on the instrument display directly. And it can also be uploaded to PC simply by using the USB drive. With the analyzing software, you could not only keep a record of the testing result but also have detailed analyzing for the status of batteries in different testing conditions.

Intelligent digital Storage Battery Internal Resistance Tester 0



Features

  • One unit in two, smart switch to measure both internal resistance and conductance of batteries. Wide test range up to 6000Ah for Lead-Acid or Nickel-Cadmium single battery which is up to 16V.
  • Field proven accurate and repeatable measurement to identify battery health.
  • Very fast and consistent measurement of battery or multiple batteries (with setting once) in seconds.
  • It adopts advanced measurement way of AC signal discharge to test internal resistance or conductance.
  • User friendly TFT touch screen and key pad as alternative operation.
  • Big memory for measurement data storage of more than 100,000 cells.
  • Universal micro USB for data exportation and also tester charge.
  • Functional PC battery management software for recording of full battery info and easy report print out.
  • Battery pack is durable in the field with testing time of 8-12 hours.



Technical Indicators

Model Numbers:

ZX-NZY01P (Base Kit with pin probe);

ZX-NZY01T (Base Kit with testing clamp);

ZX-NZY01C (Complete Kit with both pin probe and testing clamp);

Applications:

Test single Lead-Acid or Nickel-Cadmium cell or battery string (one by one after setting once).

Cell types supported: 1.2V, 2V, 6V, 12V and other customized types up to 6000Ah.

Voltage: 0.000V—25V DC
Resistance: 0.001 mΩ--100mΩ
Conductance: 100 - 19,990 Siemens
Test Data Storage: 100,000 cells stored internally, unlimited with USB drive exportation
Accuracy:

Resistance/Conductance: 1%;

Voltage: 0.15%;

Voltmeter Resolution: 1mV;
User Programmable Functions:

• Customized battery types;

• Low voltage alarm setting;

• High resistance alarm setting;

• Test mode (push button/touch screen/autostart);

Cable Options:

• Pin probe

• Test Clamp

• Custom cables by quotation

Power supply: • Li-ion battery (4000mAh), 8~12hours working time after full charge
Display: 272*480 pixel, 4.3”TFT Touch Screen LCD
Data Transfer: USB via micro USB cable
Operation Environment: 0~40℃, 90% relative humidity, non-condensing
Storage Temperature: -20~50℃
Over Voltage Protection:

• Auto-reset disconnect

• Reverse polarity protected

Housing Material: Acid resistant ABS plastic santoprene overmold
Tester Dimensions: L186*W98*H40 mm
Analyzer Weight: 0.45KG

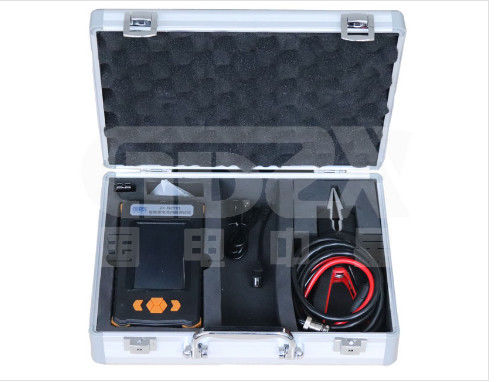

Product pictures

Intelligent digital Storage Battery Internal Resistance Tester 1Intelligent digital Storage Battery Internal Resistance Tester 2Intelligent digital Storage Battery Internal Resistance Tester 3Intelligent digital Storage Battery Internal Resistance Tester 4



PACKING AND SHIPPING
(1)We will ship products within 7-15 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
If you need detailed specification, please feel free to contact us.
