Storage Battery Internal Resistance Tester For Judging Battery Capacity

Product Details

Place of Origin: Hubei, China

Brand Name: GDZX

Certification: ISO9001

Model Number: ZX-NZY01

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: US $1799.00-4200.00/SET

Packaging Details: carton or wooden case

Delivery Time: 8-15 working days

Payment Terms: L/C, T/T

Supply Ability: 500 Set/Sets per Month

Get Best Price
Product Details
Highlight:

battery internal resistance tester

,

battery capacity tester

Product Name:
Storage Battery Internal Resistance Tester
Voltage:
0.000V—25V DC
Resistance::
0.001 MΩ--100mΩ
Display:
272*480 Pixel, 4.3”TFT Touch Screen LCD
Operation Environment:
0~40℃, 90% Relative Humidity,non-condensing
Power Supply::
Li-ion Battery (4000mAh), 8~12hours Working Time After Full Charge
Tester Dimensions:
L186*W98*H40 Mm
Analyzer Weight:
0.45KG
Product Name:
Storage Battery Internal Resistance Tester
Voltage:
0.000V—25V DC
Resistance::
0.001 MΩ--100mΩ
Display:
272*480 Pixel, 4.3”TFT Touch Screen LCD
Operation Environment:
0~40℃, 90% Relative Humidity,non-condensing
Power Supply::
Li-ion Battery (4000mAh), 8~12hours Working Time After Full Charge
Tester Dimensions:
L186*W98*H40 Mm
Analyzer Weight:
0.45KG
Product Description

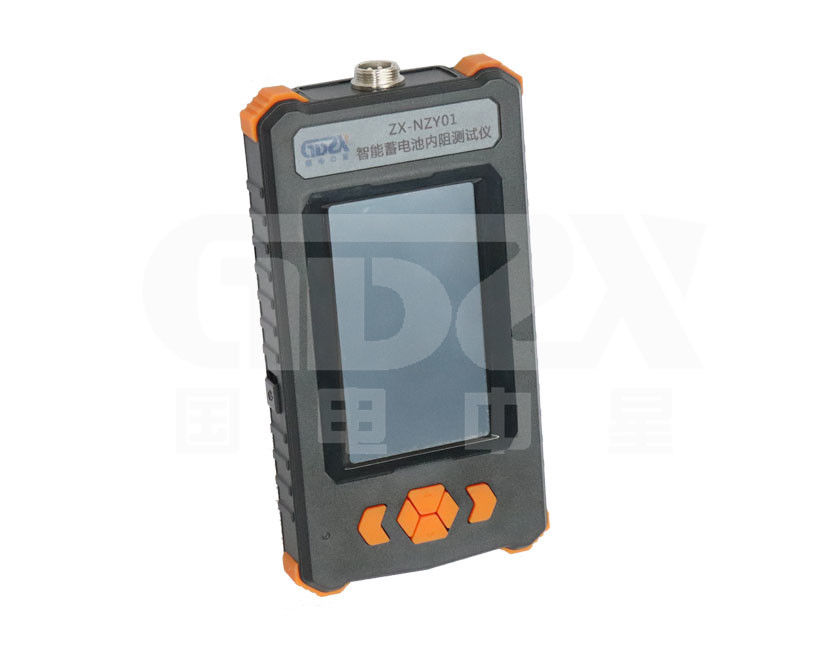

ZX-NZY01 Storage Battery Internal Resistance Tester



Product introduction

ZX-NZY01 Storage Battery Internal Resistance Tester is a new generation of battery tester with touch-screen. It is strictly designed to evaluate and maintain all stationary power systems including Uninterruptible Power System.



Via accurate testing of resistance (or conductance) and voltage, it gives an indication of battery capacity and technical status. The measurement data can be read on the instrument display directly. And it can also be uploaded to PC simply by using the USB drive. With the analyzing software, you could not only keep a record of the testing result but also have detailed analyzing for the status of batteries in different testing conditions.

Storage Battery Internal Resistance Tester For Judging Battery Capacity 0



Features

  • One unit in two, smart switch to measure both internal resistance and conductance of batteries. Wide test range up to 6000Ah for Lead-Acid or Nickel-Cadmium single battery which is up to 16V.
  • Field proven accurate and repeatable measurement to identify battery health.
  • Very fast and consistent measurement of battery or multiple batteries (with setting once) in seconds.
  • It adopts advanced measurement way of AC signal discharge to test internal resistance or conductance.
  • User friendly TFT touch screen and key pad as alternative operation.
  • Big memory for measurement data storage of more than 100,000 cells.
  • Universal micro USB for data exportation and also tester charge.
  • Functional PC battery management software for recording of full battery info and easy report print out.
  • Battery pack is durable in the field with testing time of 8-12 hours.

Storage Battery Internal Resistance Tester For Judging Battery Capacity 1

Technical Indicators

Model Numbers:

ZX-NZY01P (Base Kit with pin probe);

ZX-NZY01T (Base Kit with testing clamp);

ZX-NZY01C (Complete Kit with both pin probe and testing clamp);

Applications:

Test single Lead-Acid or Nickel-Cadmium cell or battery string (one by one after setting once).

Cell types supported: 1.2V, 2V, 6V, 12V and other customized types up to 6000Ah.

Voltage: 0.000V—25V DC
Resistance: 0.001 mΩ--100mΩ
Conductance: 100 - 19,990 Siemens
Test Data Storage: 100,000 cells stored internally, unlimited with USB drive exportation
Accuracy:

Resistance/Conductance: 1%;

Voltage: 0.15%;

Voltmeter Resolution: 1mV;
User Programmable Functions:

• Customized battery types;

• Low voltage alarm setting;

• High resistance alarm setting;

• Test mode (push button/touch screen/autostart);

Cable Options:

• Pin probe

• Test Clamp

• Custom cables by quotation

Power supply: • Li-ion battery (4000mAh), 8~12hours working time after full charge
Display: 272*480 pixel, 4.3”TFT Touch Screen LCD
Data Transfer: USB via micro USB cable
Operation Environment: 0~40℃, 90% relative humidity, non-condensing
Storage Temperature: -20~50℃
Over Voltage Protection:

• Auto-reset disconnect

• Reverse polarity protected

Housing Material: Acid resistant ABS plastic santoprene overmold
Tester Dimensions: L186*W98*H40 mm
Analyzer Weight: 0.45KG



Product pictures

Storage Battery Internal Resistance Tester For Judging Battery Capacity 2

Storage Battery Internal Resistance Tester For Judging Battery Capacity 3Storage Battery Internal Resistance Tester For Judging Battery Capacity 4

Storage Battery Internal Resistance Tester For Judging Battery Capacity 5

Storage Battery Internal Resistance Tester For Judging Battery Capacity 6



PACKING AND SHIPPING
(1)We will ship products within 7-15 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
If you need detailed specification, please feel free to contact us.
