|Product Name:||Storage Battery Internal Resistance Tester||Voltage:||0.000V—25V DC|
|Resistance::||0.001 MΩ--100mΩ||Display:||272*480 Pixel, 4.3”TFT Touch Screen LCD|
|Operation Environment:||0~40℃, 90% Relative Humidity,non-condensing||Power Supply::||Li-ion Battery (4000mAh), 8~12hours Working Time After Full Charge|
|Tester Dimensions:||L186*W98*H40 Mm||Analyzer Weight:||0.45KG|
TFT Display Battery Internal Resistance Tester,
25V DC Battery Internal Resistance Tester

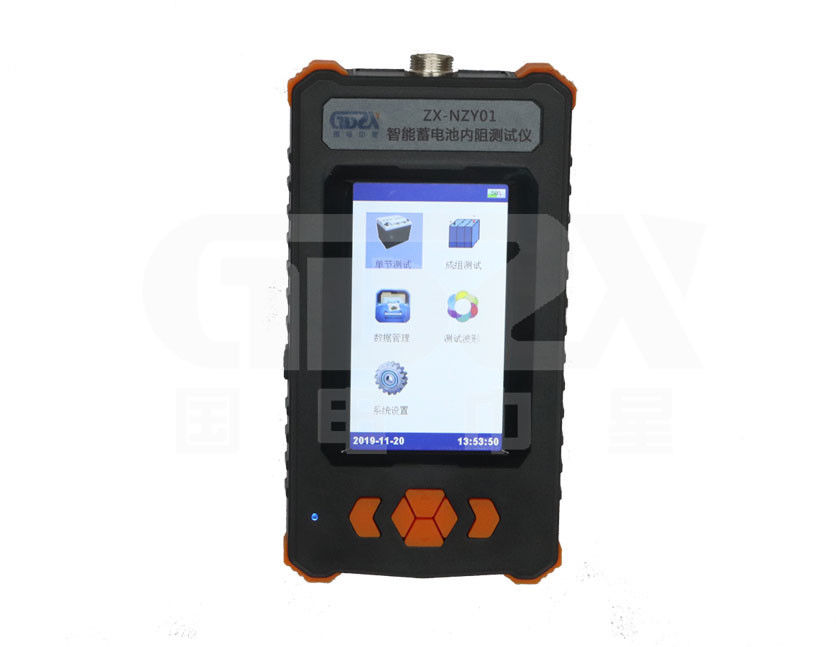

ZX-NZY01 Storage Battery Internal Resistance Tester is a new generation of battery tester with touch-screen. It is strictly designed to evaluate and maintain all stationary power systems including Uninterruptible Power System.
Via accurate testing of resistance (or conductance) and voltage, it gives an indication of battery capacity and technical status. The measurement data can be read on the instrument display directly. And it can also be uploaded to PC simply by using the USB drive. With the analyzing software, you could not only keep a record of the testing result but also have detailed analyzing for the status of batteries in different testing conditions.
ZX-NZY01P (Base Kit with pin probe);
ZX-NZY01T (Base Kit with testing clamp);
ZX-NZY01C (Complete Kit with both pin probe and testing clamp);
Test single Lead-Acid or Nickel-Cadmium cell or battery string (one by one after setting once).
Cell types supported: 1.2V, 2V, 6V, 12V and other customized types up to 6000Ah.
|Conductance:||100 - 19,990 Siemens|
|Test Data Storage:||100,000 cells stored internally, unlimited with USB drive exportation|
|User Programmable Functions:||
• Customized battery types;
• Low voltage alarm setting;
• High resistance alarm setting;
• Test mode (push button/touch screen/autostart);
• Pin probe
• Test Clamp
• Custom cables by quotation
|Power supply:||• Li-ion battery (4000mAh), 8~12hours working time after full charge|
|Display:||272*480 pixel, 4.3”TFT Touch Screen LCD|
|Data Transfer:||USB via micro USB cable|
|Operation Environment:||0~40℃, 90% relative humidity, non-condensing|
|Over Voltage Protection:||
• Auto-reset disconnect
• Reverse polarity protected
|Housing Material:||Acid resistant ABS plastic santoprene overmold|
|Tester Dimensions:||L186*W98*H40 mm|
PACKING AND SHIPPING
(1)We will ship products within 7-15 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
If you need detailed specification, please feel free to contact us.
