Lightweight Compact Transformer Testing Equipment Short Circuit Impedance Tester

Product Details

Place of Origin: CHINA

Brand Name: GDZX

Certification: ISO9001

Model Number: ZX-BZK

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD$1,300.00 - $2,599.00 / Sets

Packaging Details: carton

Delivery Time: 8-15DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 1200 /Sets per Year

Get Best Price
Product Details
Highlight:

transformer test instruments

,

current transformer test set

Voltage Range:
AC 3V-300V
Current Range:
AC 0.2A-20A
Power Supply::
AC220V±10%,50Hz±1Hz
Current Measuring Range:
AC 0.2A-20A
Working Temperature::
-10℃--50℃
Humidity:
0-80%
Dimension:
360*220*150mm
Net Weight:
About 5kg
Voltage Range:
AC 3V-300V
Current Range:
AC 0.2A-20A
Power Supply::
AC220V±10%,50Hz±1Hz
Current Measuring Range:
AC 0.2A-20A
Working Temperature::
-10℃--50℃
Humidity:
0-80%
Dimension:
360*220*150mm
Net Weight:
About 5kg
Product Description





PLEASE NOTE :

Dry type Testing Transformer ,Hipot Transformer Control Unit

Wuhan GDZX Power Equipment Co.,Ltd OFFER YOU :

1: FACTORY DIRECT PRICE.
2: NICE QUALITY.
3: QUICK SHIPPING WITHIN 15 DAYS.

4: SMALL ORDER WELCOME..

5: ONLINE PAYMENT.

6: SUPPORT One year free warranty, three years quality assurance, lifetime maintenance.

7: AFTER SALES SERVICES 24/7







Product introduction:

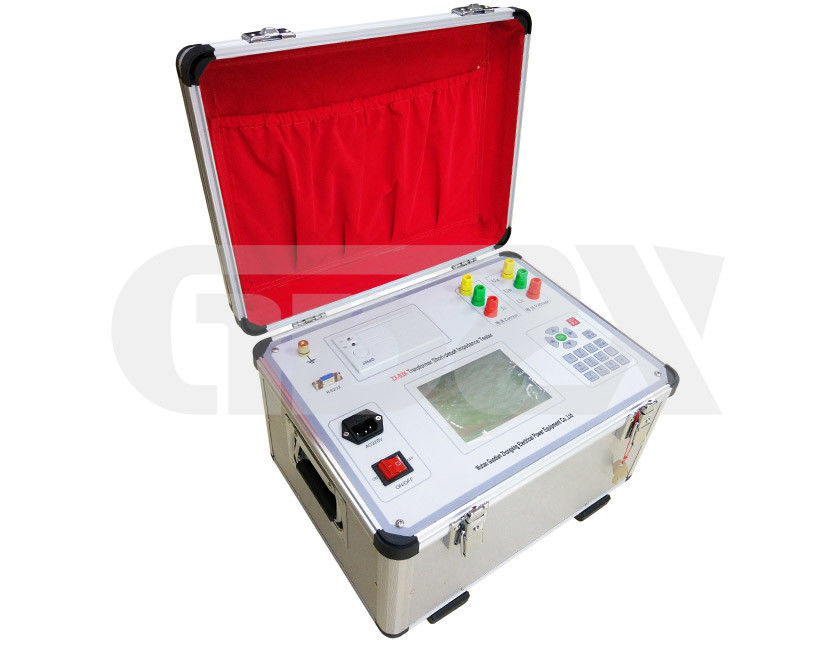

Lightweight Compact Transformer Testing Equipment Short Circuit Impedance Tester 1



Transformer Winding Testing Equipment Short-Circuit Impedance Tester



Low-Voltage Short-Circuit Impedance Test Is To The Most Direct Way To Check The Deformation Of The Winding After Transformer Suffered From Short-Circuit Current Or Mechanical Collision During Transportation And Installation, The Test Is Important To Help Determine Whether The Transformer Can Be Put Into Operation, And Whether Disintegration Is Necessary For Inspection. ZX-BZK Transformer Short-Circuit Impedance Tester Comes With Adjustable Power Output, Particularly Suitable For 110kV And Above Main Transformer On Site Measurement.

Lightweight Compact Transformer Testing Equipment Short Circuit Impedance Tester 2

Features

1. With switching power supply, just one time wiring connection can finish measurement for all the windings, no matter it is single phase transformer or three phase transformer

2. Single phase measurement mode. To three phase transformers, each phase short circuit impedance, reactance, inductance can be obtained automatically after three times boosting.

3. Adopts phase locking technology, synchronize sampling AC signal which ensures accuracy

4. current, voltage and power, frequency can be measured at the same time

5. Support external connection with CT/PT to extend measuring range

6. With memory to store data, with printer

7. LCD display with operation menu, data can be read clearly even under direct sunlight

Lightweight Compact Transformer Testing Equipment Short Circuit Impedance Tester 3

Technical Indicators

1. Measurement accuracy: Voltage, current 0.2%

2. Power: COSφ>0.1 0.5%; COSφ≤0.1 1.0%

3. Impedance: COSφ>0.1 0.5%; COSφ≤0.1 1.0%

4. Voltage measurement range: AC 3V-300V

5. Internal power supply output range: voltage 0-250V, current 0-10A

6. Current measuring range: AC 0.2A-20A

7. Working temperature: -10℃-50℃

8. Humidity: 0-80%

9. Power supply: AC220V±10%,50Hz±1Hz

10. Dimension: 360×220×150mm

11. Weight: about 5kg





For more details , pls contact me directly .

Your inquiry will be taken seriously .
