ZX-BCS Multifunctional 3 Phase Transformer Testing Equipment Turns Ratio Tester

Product Details

Place of Origin: CHINA

Brand Name: GDZX

Certification: ISO9001

Model Number: ZX-BCS

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD$3000

Packaging Details: Packed in wooden case or carton

Delivery Time: 8-15 Work days

Payment Terms: L/C,T/T,Western Union,MoneyGram,

Supply Ability: 1200 Set/Sets per Year

Get Best Price
Product Details
Highlight:

transformer test instruments

,

transformer testing machine

Testing Range:
0.9~10000
Test Speed:
Finish 3 Phase Test Within 1 Minute
Service Temperature:
-5℃ ─ 40℃
Relative Humidity:
<85%
Volume:
410mm×320mm×180mm
Testing Range:
0.9~10000
Test Speed:
Finish 3 Phase Test Within 1 Minute
Service Temperature:
-5℃ ─ 40℃
Relative Humidity:
<85%
Volume:
410mm×320mm×180mm
Product Description


Multifunctional 3 Phase Transformer Testing Equipment Turns Ratio Tester


PLEASE NOTE :

Dry type Testing Transformer ,Hipot Transformer Control Unit

Wuhan GDZX Power Equipment Co.,Ltd OFFER YOU :

1: FACTORY DIRECT PRICE.
2: NICE QUALITY.
3: QUICK SHIPPING WITHIN 15 DAYS.

4: SMALL ORDER WELCOME..

5: ONLINE PAYMENT.

6: SUPPORT One year free warranty, three years quality assurance, lifetime maintenance.

7: AFTER SALES SERVICES 24/7


Z connection Scott Connection Power Transformer Testing Equipment Turns Ratio Meter

Product introduction

ZX-BCS Multi-functional TTR meter

Testing Z connection Scott/inverse Scott connection Transformer

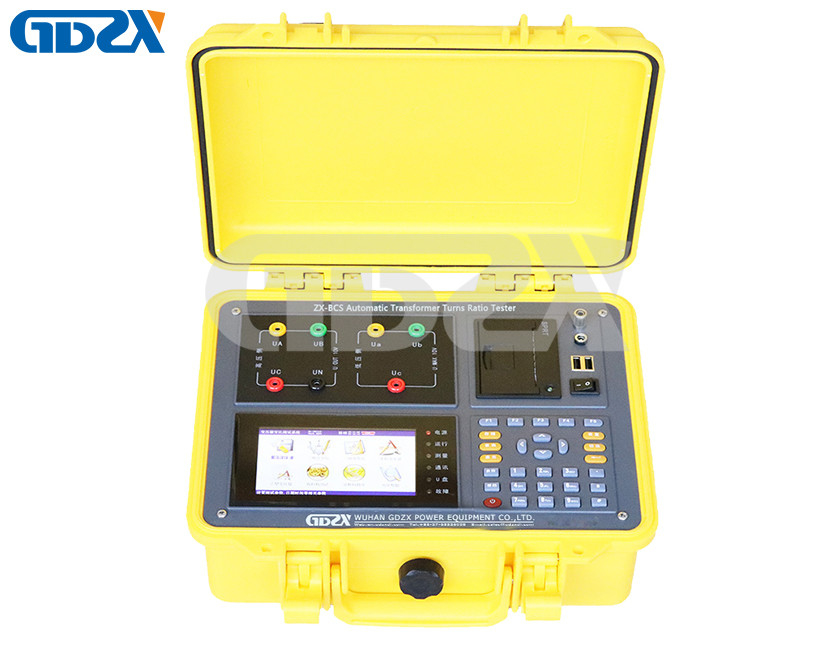

ZX-BCS Multifunctional 3 Phase Transformer Testing Equipment Turns Ratio Tester 1


  Features :


  1. Single phase input, three phase testing source output, Distortion < 0.1%
  2. Measure phase angle between HV & LV side, turns ratio & angle of “Non integral point” transformer
  3. Single-phase and three-phase winding automatic test.
  4. 3 phase turns ratio, phase angle, error, tapping position and value can be measured at one time
  5. Auto identify connecting group number
  6. Testing results displayed in the form of digit and hexagon vector diagram
  7. No external short-circuit needed for measuring Y/ ,/Y transformer
  8. Auto shift connection methods
  9. Testing transformer without nameplate
  10. Ratio and Ratio error in the position of each tapping switch can be gauged quickly, rating input
  11. Two functions of turns ratio measurement and actual operating voltage ratio measurement
  12. 7 inch LCD to display testing data and vector diagram
  13. Small size and light weight, yellow carrying case
  14. Built-in high capacity chargeable lithium battery.

   Product Parameters:


1. TTR measurement range: 0.8~10000.


2. High measurement speed: three-phase test can be completed within 40 seconds.


3. Measurement accuracy:

Voltage measurement accuracy on HV side: 0.05%

Voltage measurement accuracy on LV side: 0.1%

Phase angle measurement accuracy: 0.1°

TTR measurement accuracy: 0.1%(0.8-3000)0.2%(3000-10000)


4. Volume: 320mm*240mm*130mm.


5. Weight: 3Kg.



For more product details, please contact me directly
Your inquiry will be treated with heart .
ZX-BCS Multifunctional 3 Phase Transformer Testing Equipment Turns Ratio Tester 2
