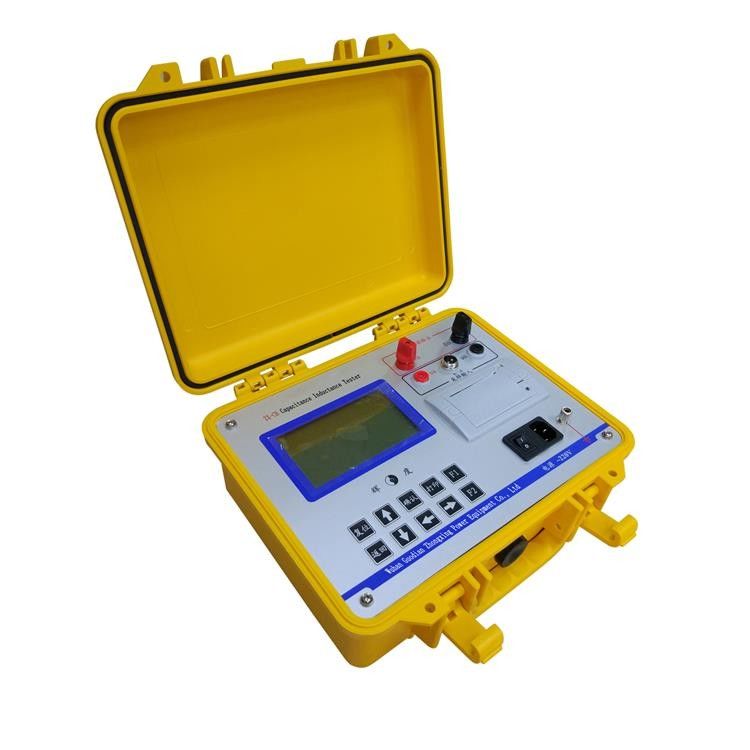

High Stability Capacitance Inductance Tester , Power Frequency Current Tester

Product Details

Place of Origin: Hubei, China

Brand Name: GDZX

Model Number: ZX-CH

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: $1,500.00 - $3,500.00 / Sets

Packaging Details: Carton or wooden box

Delivery Time: 7~10 work days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 1200 Set/Sets per Year

Get Best Price
Product Details
Highlight:

protection relay test equipment

,

protective relay test set

Product Name:
Capacitance Inductance Tester
Output Voltage:
~ 2V, ~ 20V
Output Current:
≤ 10A
Capacitance:
0.1uF ~ 2200uF
Inductance:
0.1mH ~ 10H
Resistance:
50mΩ-20000Ω
Current:
1mA ~ 15A
Voltage:
0 ~ 25V
Product Name:
Capacitance Inductance Tester
Output Voltage:
~ 2V, ~ 20V
Output Current:
≤ 10A
Capacitance:
0.1uF ~ 2200uF
Inductance:
0.1mH ~ 10H
Resistance:
50mΩ-20000Ω
Current:
1mA ~ 15A
Voltage:
0 ~ 25V
Product Description

High Stability Capacitance Inductance Tester , Power Frequency Current Tester



Functions

Ø 3 in 1 function: Test single capacitor of shunt capacitor bank (both single phase and 3 phase) without disconnecting wires, measure inductance of a variety of reactors, also can work as Power Frequency current tester

Ø Parameters measurement of U, I, P, F, Rc, R1, Rz, C, Cab, Cbc, Cca, Ca, Cb, Cc, L, Q, R



Features

² 240×128 screen backlit LCD display, clear in day and night, menu prompts, easy operation

² Non-volatile memory, storage capacity: 50 sets of measurement data.

² Real-time clock function for date and time calibration.

² Micro-thermal printer

² Over-current protection function

² Auto measurement, auto identify the test type (capacitance, inductance, resistance).



Technical index

v Output voltage: ~ 2V, ~ 20V

v Output current: ≤ 10A

v Measuring range

Capacitance: 0.1uF ~ 2200uF

Inductance: 0.1mH ~ 10H

Resistance: 50mΩ-20000Ω

Current: 1mA ~ 15A

Voltage: 0 ~ 25V

v Capacity range: 0 ~ 20,000 KVAR

v Measurement accuracy

Capacitance: ± (1% + 5 words)

Inductance: ± (1% + 5 words)

Current: ± (1% + 5 words)

Voltage: ± (1% + 5 words)

Capacity: ± (1% + 5 words)

v Resolution

Voltage: 0.1 mV

Current: 0.1mA

Capacitance: 0.1nF

Inductance: 0.1mH

v Ambient temperature: -10 ℃ ~ 50 ℃

v Ambient humidity: ≤85% RH

v . Power supply: AC220V±10%

v Power frequency: 50±1Hz

v Instrument power: 250W

v Dimension: 330 × 280 × 140mm

v G.W.: 20kg
