Wuhan GDZX Power Equipment Co., Ltd sales@gdzxdl.com 86--17396104357
Product Details
Place of Origin: Hubei, China
Brand Name: GDZX
Certification: ISO9001
Model Number: DDG
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: $1,000.00 - $3,000.00 / Sets
Packaging Details: Carton or wooden box
Delivery Time: 7~10 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100 Set/Sets per Month
Product Name: |
Primary Current Injection Tester |
Voltage Output: |
500A 1000A 2000A... |
Structure: |
Separated Or Integrated |
Dimension: |
Can Be Customized |
Product Name: |
Primary Current Injection Tester |
Voltage Output: |
500A 1000A 2000A... |
Structure: |
Separated Or Integrated |
Dimension: |
Can Be Customized |

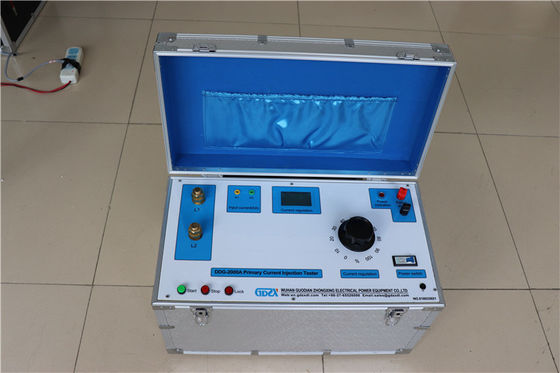

Continuous Running Primary Current Injector 2000A 3000A Primary Current Injection Tester
Features
1 Pointer type: Two ammeters large & small range indicating
2 Free adjustable auto-transformer, simple operation
3 Manual pointer type digital type, auto type for options
4 Integrated or separated structures, easy moving
Parameter
| TYPE | Cap | Primary | Secondary | Dimension(mm) | Weight | Structure | ||
| kVA | V1 | A1 | V2 | A2 | L×W×H | KG | ||
| 500A | 3 | 200 | 15 | 6 | 500 | 430×338×550 | 48 | Integrated |
| 1000A | 6 | 200 | 30 | 6 | 1000 | 500×380×600 | 80 | Integrated |
| 2000A | 12 | 220 | 50 | 6 | 2000 | 550×420×700 400×520×800 | 65 45 | Separated |
| 2500A | 15 | 380 | 39.5 | 6 | 2500 | 600×430×790 580×480×820 | 85 65 | Separated |
| 3000A | 18 | 380 | 55 | 6 | 3000 | 620×440×800 | 160 | Separated |
| 4000A | 24 | 380 | 63 | 6 | 4000 | 640×450×820 300×500×500 | 105 85 | Separated |
| 5000A | 30 | 380 | 79 | 6 | 5000 | 600×430×900 300×500×500 | 145 135 | Separated |
| 6000A | 36 | 380 | 95 | 6 | 6000 | 600×430×900 300×500×500 | 150 140 | Separated |
| 8000A | 48 | 380 | 126 | 6 | 8000 | 600×450×950 350×550×550 | 180 | Separated |
| 10000A | 60 | 380 | 158 | 6 | 10000 | 800×600×1100 380×550×600 | 200 | Separated |
| 20000A | 60 | 380 | 158 | 6 | 20000 | 800×600×1100 380x550x600 | 240 | Separated |
* Can be customized
