600V 30kOhm Portable Grounding Resistance Tester Earth Insulation Tester for Soil Resistivity Measurement

Product Details

Place of Origin: China

Brand Name: GDZX

Certification: ISO9001

Model Number: ZX2571L

Payment & Shipping Terms

Minimum Order Quantity: 1Set

Price: US $250.00-$650.00 /SET

Packaging Details: packing bag

Delivery Time: 3-20 work day

Payment Terms: L/C,T/T,Western Union,

Supply Ability: 1000Set/year

Get Best Price
Product Details
Highlight:

HV Partial Discharge Detector

,

Handheld Partial Discharge Detector

,

Switchgear Partial Discharge Tester

Grounding Resistance:
0.00Ω To 30.00kΩ
Soil Resistivity:
0.00Ωm To 9999kΩm
Ground Voltage:
0.00V To 600.0V
Test Frequency:
128Hz
Data Storage:
500 Sets
Weight:
1230g (including Battery)
Grounding Resistance:
0.00Ω To 30.00kΩ
Soil Resistivity:
0.00Ωm To 9999kΩm
Ground Voltage:
0.00V To 600.0V
Test Frequency:
128Hz
Data Storage:
500 Sets
Weight:
1230g (including Battery)
Product Description
Product Overview

ZX2571L Ground Resistance Soil Resistivity Tester (also known as a Four-Wire Ground Tester or Precision Ground Resistance Tester) is a widely used instrument for measuring grounding resistance. It features a large gray-white LCD backlight screen and microprocessor technology, supporting two-wire, three-wire, and four-wire resistance testing as well as soil resistivity measurement.

It is suitable for telecommunications, power systems, meteorology, computer rooms, oil fields, power distribution lines, iron tower transmission lines, gas stations, factory grounding networks, lightning rods, and other applications. The instrument delivers precise, fast, simple, stable, and reliable testing.

Controlled by a microprocessor, the tester automatically detects the connection status of each interface, as well as the interference voltage and interference frequency of the ground network. It also features an auxiliary grounding resistance value test function and can store up to 500 sets of data. Resistance measurement range: 0.01 Ω to 30.00 kΩ; grounding voltage range: 0.01 V to 600.0 V.

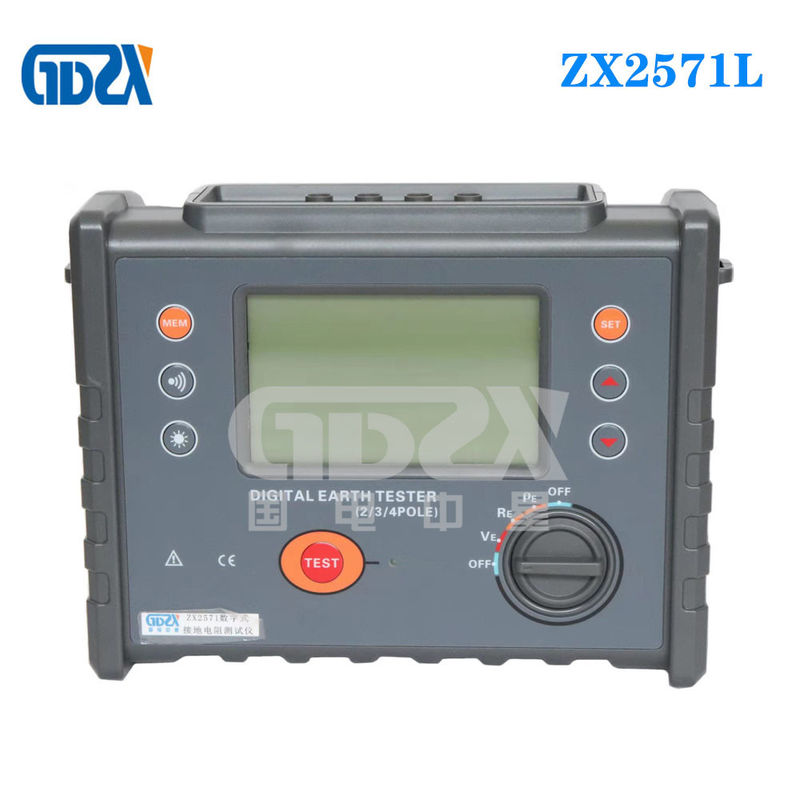

ZX2571L Ground Resistance Soil Resistivity Tester front view with LCD display and control panel
Measuring Range and Accuracy
Category Measurement Range Intrinsic Error Resolution
Earth Resistance (R) 0.00 Ω – 30.00 Ω ±2%rdg ±5dgt 0.01 Ω
30.0 Ω – 300.0 Ω ±2%rdg ±3dgt 0.1 Ω
300 Ω – 3000 Ω ±2%rdg ±3dgt 1 Ω
3.00 kΩ – 30.00 kΩ ±4%rdg ±3dgt 10 Ω
Soil Resistivity (ρ) 0.00 Ωm – 99.99 Ωm ρ = 2πaR (see remark 2) 0.01 Ωm
100.0 Ωm – 999.9 Ωm 0.1 Ωm
1000 Ωm – 9999 Ωm 1 Ωm
10.00 kΩm – 99.99 kΩm 10 Ωm
100.0 kΩm – 999.9 kΩm 100 Ωm
1000 kΩm – 9999 kΩm 1 kΩm
Earth Voltage AC 0.00 – 600 V ±2%rdg ±3dgt 0.01 V
Remarks:
  1. Reference conditions: Accuracy when Rh, Rs < 100 Ω. Operating conditions: Rh max = 3 kΩ + 100R < 50 kΩ; Rs max = 3 kΩ + 100R < 50 kΩ.
  2. Depending on the measurement accuracy of R, π = 3.14, a: 1 m to 100 m.
ZX2571L tester measurement range and accuracy reference diagram
Technical Indicators
Function Two-, three-, and four-wire grounding resistance measurement; soil resistivity; ground voltage; AC voltage
Ambient Temperature & Humidity 23 °C ±5 °C, below 75% RH
Power Supply DC 9 V, 6 × LR14 dry battery; standby for more than 100 hours
Interference Current < 2 A (should be avoided)
Measure R Electrode Spacing a > 5d
Measured Electrode Spacing a > 20h
Auxiliary Earth Resistance Reference conditions < 100 Ω; operating conditions < 5 kΩ
Range Grounding resistance: 0.00 Ω to 30.00 kΩ
Soil resistivity: 0.00 Ωm to 9999 kΩm
Ground voltage: 0.00 V to 600.0 V
Measurement Method Precision 4-wire and 3-wire measurement; simple 2-wire grounding resistance
Measuring Methods Grounding resistance: rated current change method
Soil resistivity: four-pole method
Ground voltage: average rectification (S-ES interface)
Test Frequency 128 Hz
Short-Circuit Test Current AC > 20 mA (sine wave)
Open Circuit Test Voltage AC 28 V max
Electrode Spacing Range Settable from 1 m to 100 m
Change Gear Grounding resistance: fully automatic shifting from 0.00 Ω to 30.00 kΩ
Soil resistivity: 0.00 Ωm to 9000 kΩm automatic shifting
Backlight Gray screen backlight, suitable for dim places
Display Mode 4-digit super-large LCD display, blue screen backlight
Measuring Indicator LED flash during measurement
LCD Frame Dimension 111 mm × 65 mm
LCD Display Area 108 mm × 65 mm
Dimension L × W × H: 240 mm × 188 mm × 85 mm
Standard Test Wire 4 wires: red 20 m, black 20 m, yellow 10 m, green 10 m (each)
Simple Test Wire 2 wires: yellow 1.5 m and green 1.5 m (each)
Auxiliary Earthing Rod 4 pcs
Measuring Rate Voltage to ground: about 3 times/second
Earth resistance, soil resistivity: about 7 seconds/time
Circuit Voltage Below AC 600 V
Data Storage 500 sets; "MEM" icon storage indicator; "FULL" icon flashes when storage is full
Data Read Data read function with "MR" icon display
Overflow Display Overflow function with "OL" icon display when exceeding measuring range
Alarm Function Alarm when the measured value exceeds the alarm setting value
Battery Voltage Low battery voltage symbol display
Power Consumption Standby: about 40 mA (backlight off)
Power on with backlight: about 43 mA
Measurement: about 75 mA (backlight off)
Weight Tester: 1230 g (including battery)
Testing wires: 1300 g
Auxiliary earthing rod: 720 g (4 pcs)
Working Temperature & Humidity -10 °C to 40 °C; below 80% RH
Storage Temperature & Humidity -20 °C to 60 °C; below 70% RH
Overload Protection Measuring earth ground resistance: between each interface of H-E, S-ES, AC 280 V / 3 seconds
Insulation Resistance Over 20 MΩ (between circuit and enclosure at 500 V)
Withstanding Voltage AC 3700 V/rms (between circuit and enclosure)
Electromagnetic Features IEC61326 (EMC)
Protection Type IEC61010-1 (CAT III 300 V, CAT IV 150 V, Pollution Degree 2); IEC61010-031; IEC61557-1 (grounding resistance); IEC61557-5 (soil resistivity); JJG 366-2004
