Multifunctional XP System Microcomputer Six Phase Relay Secondary Injection Protection Tester



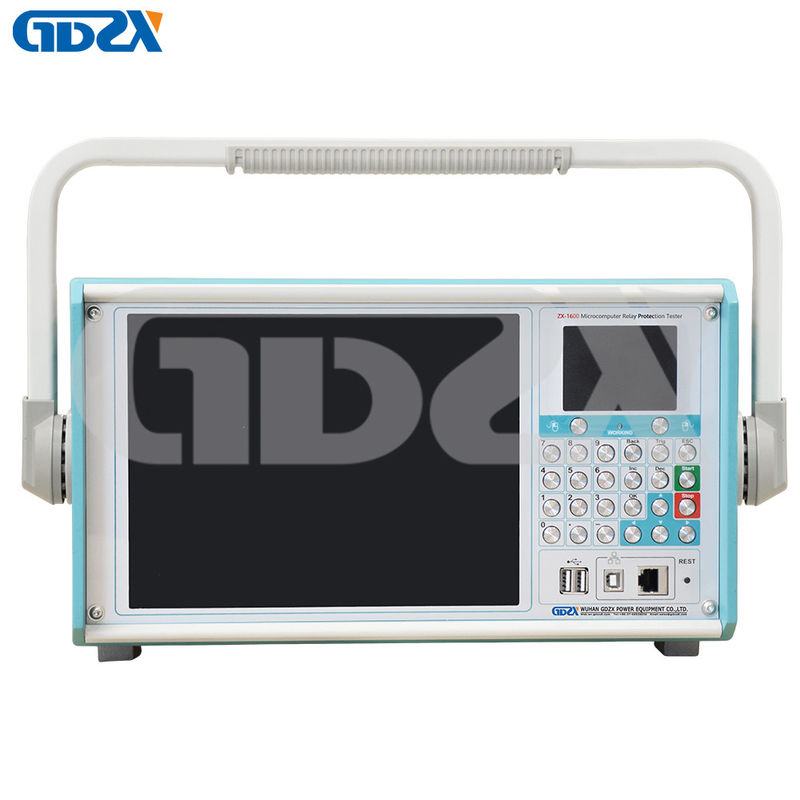

  ZX-1600 microcomputer relay protection Tester adopts high performance IPC as the host, Window XP operating system, device panel with large size and color TFT display, industrial keyboard inside, the front panel is provided with a plurality of USB which is convenient for data access, data communication and software upgrades.

The whole process and results of the experiment are displayed on the screen. The language is Chinese, The user interface is simple and clear intuitive and convenient. It easy Operation and direct display by industrial keyboard.

XP System Microcomputer Six Phase Relay Protection Tester Secondary Injection 0



Features

1. Windown XP operation system, multiple keyboard shortcuts, user-friendly interface

2. High performance embedded IPC and high resolution TFT color LCD displaying massive information

3. ultra-thin keyboard and touchpad, operation just like ordinary PC

4. USB communication interface, convenient for data access and software maintenance

5. Test without auxiliary devices, auto display and record data, auto finish vectorgraph and characteristic curve

6. Advanced D/A converter which ensured high precision waveform, good linearity and nice transient response and amplitude-frequency characteristic

7. Direct output of ac voltage/current, dc voltage/current, variable amplitude/angle/frequency

8. high fidelity linear power amplifier, no wave distortion or peak clipping even when current reach the maximum

9. Switch value input terminal can Intelligently identify active or passive contact and polarity

10. Can scan all kinds of safety setting, real-time storage and print and vector diagram display

11. Carrying box design, little volume, good heat radiation, little weight

12. Self-protection function





Technical Indicators



Power supply AC input voltage Rated value: 220V ± 10%
Reference value: 220V ± 2%
AC power frequency Rated value:50Hz ± 10%
Reference value:50Hz ± 2%
Working environment environment temperature -10℃~+40℃
relative humidity ≤90%
atmospheric pressure 80~110kPa
Size 54*39*68cm
Synchronism voltage current synchronism ≤10μS
Input switch

16 independent switch contact input, auto identify polarify of the active

contact.


1. AC current source



1) Six-phase common neutral current source, current rise and fall time <100μs

2) Maximum output power: 450VA / phase

3) Output accuracy:

0.1A ~ 1A Accuracy ± 5mA

1A ~ 10A Accuracy ± 0.1%

10A ~ 40A Accuracy ± 0.2%

4) Resolution:

0.1A ~ 10A resolution 1mA

10A ~ 40A resolution 5mA

5) Single-phase continuous output time:

0.1A ~ 10A output time unlimited

10A ~ 20A output time ≥90 seconds

20A ~ 30A output time ≥20 seconds

30A ~ 40A output time ≥15 seconds



2. AC voltage source

1) Six-phase common neutral voltage source, current rise and fall time <100μs

2) Maximum output power: ≥75VA / phase

3) Output accuracy:

1V ~ 5V accuracy ± 5mV

5V ~ 125V accuracy ± 0.1%

4) Resolution:

1V ~ 5V resolution 1mV

5V ~ 125V resolution 5mV



3. DC current source

1) Single-phase output range: -10A ~ + 10A or 0 ~ 20A

2) Maximum output power: 300VA / phase

3) Output accuracy:

± 0.1A ~ ± 2A Accuracy ± 10mA

± 2A ~ ± 10A Accuracy ± 0.2%

4) Resolution: 5mA



4. DC voltage source

1) DC voltage output range: -150V ~ + 150V or 0 ~ 300V

2) Maximum output power: ≥100VA

3) Output accuracy:

± 1V ~ ± 5V accuracy ± 10mV

± 5V ~ ± 150V Accuracy ± 0.2%

4) Resolution:

± 1V ~ ± 5V resolution 5mV

± 5V ~ ± 150V Resolution 10mV



5. AC voltage and current source angle

1) Phase angle range: 0 ° ~ 360 °

2) Accuracy: ± 0.1 °

3) Resolution: 0.01 °



6. Frequency of AC voltage and current source

1) Frequency range: 1 ~ 2000Hz

2) It can superimpose 2 ~ 20 times harmonics of any amplitude and DC

3) Output accuracy:

1Hz ~ 65Hz ± 0.001Hz

65Hz ~ 2000Hz ± 0.02Hz

4) Resolution: 0.001 Hz



7. Timing accuracy:

1ms ~ 1S ± 1ms

1S ~ 999999S ± 0.2%



8. Opening amount

1) 16 independent switch contact inputs, automatically identify the polarity of the active contact

2) Compatible with empty contacts and 15V ~ 250V active contacts



9. Output switch

1) 8 pairs of programmable switch empty contact output

2) Contact capacity: 250VDC, 0.5A or 250VAC, 0.5A



10. Synchronization

1) Voltage and current synchronization ≤10μS



11. Power supply

1) AC input voltage

a. Rated value: 220V ± 10%

b. Reference value: 220V ± 2%

2) AC power supply frequency:

a. Rated value: 50Hz ± 10%

b. Reference value: 50Hz ± 2%



12. Use environment

1) Ambient temperature: -10 ℃ ~ + 40 ℃

2) Relative humidity: ≤90%

3) Atmospheric pressure: 80 ~ 110kPa
