DDG Programmable Portable Multifunctional Large Current Generator 3~60kvA

Product Details

Place of Origin: CHINA

Brand Name: GDZX

Certification: ISO9001

Model Number: DDG

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 799~11999 USD/set

Packaging Details: wooden case

Delivery Time: 7

Supply Ability: 100 Piece/Pieces per Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Multifunctional Large Current Generator, Programmable Large Current Generator, 60kvA Large Current Generator


Warranty:	1 Year	Capacity:	3~60kvA
Weight:	48~240kg	Structure:	Integrated/Separated
Current:	500~20000A	Output Opening Voltage:	5V
Output Waveform:	Standard Sine Wave	Current Stability:	1.5%
Current Accuracy:	0.5 Class	Insulation Resistance:	20MΩ
Input Current Mode:	True RMS Continuously Adjustable

Warranty:	1 Year
Capacity:	3~60kvA
Weight:	48~240kg
Structure:	Integrated/Separated
Current:	500~20000A
Output Opening Voltage:	5V
Output Waveform:	Standard Sine Wave
Current Stability:	1.5%
Current Accuracy:	0.5 Class
Insulation Resistance:	20MΩ
Input Current Mode:	True RMS Continuously Adjustable

Product Description

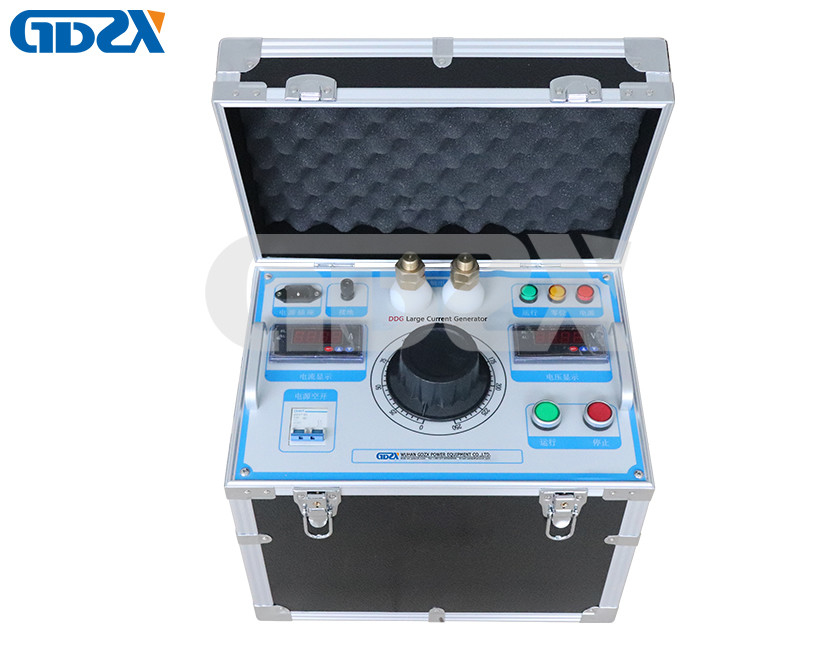

DDG Large Current Generator

Product Introduction :

This primary current injection test set is a high current generator instrument. It is applied in protective device inspection, secondary circuit current test, current transformer test, circuit breaker test, other current loaded tests and temperature-rise tests. It is widely used in power plants, power distribution stations, electrical plants, scientific research, laboratories, etc

Main characteristics:

With two ammeters for large and small range monitoring
The auto-transformer can adjust freely
Pointer type or Digital LED indicating type, rotary knob operation, simple to operate
Integrated or separated structures, easy to move

Technical indicators:

For more information , click this link to send us inquiry now !

Product pictures:

Our company :

Wuhan GDZX Power Equipment Co.,ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Peru , Malysia, Vietnam ,Singapore and so on.
Our main products are High voltage tester , Cable Fault Locator, Power Quality Analyzer, Standard Power source , Testing Transformer and so on.

DDG Programmable Portable Multifunctional Large Current Generator 3~60kvA 7

DDG Programmable Portable Multifunctional Large Current Generator 3~60kvA 8

DDG Programmable Portable Multifunctional Large Current Generator 3~60kvA 9

Packaging & Delivery

1. Delivery within 8-15 work days
2. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
3. Experienced and professional logistic agent .

DDG Programmable Portable Multifunctional Large Current Generator 3~60kvA 10

DDG Programmable Portable Multifunctional Large Current Generator 3~60kvA 11

DDG Programmable Portable Multifunctional Large Current Generator 3~60kvA 12
