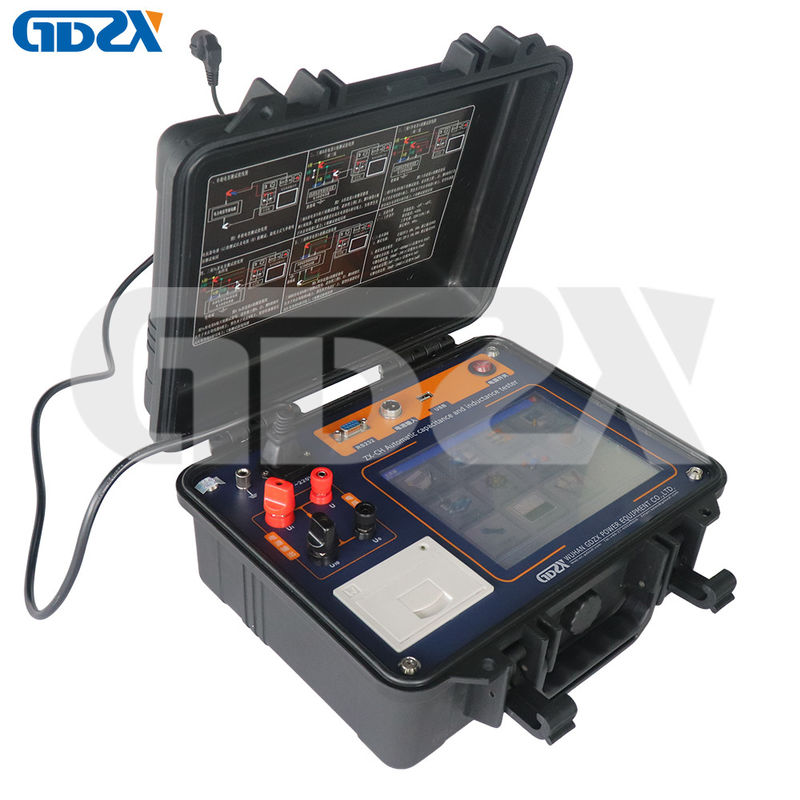

ZX-CH Electric Three Phase Capacitance Inductance Tester Of Capacitance Bridge Test Meter

Overview

Reactive power compensation capacitor is an important equipment to satisfy the reactive power balance of the power system. In recent years, the problem of reactive power has received general attention from the electrical industry, and a large number of reactive power compensation devices have been put into operation in the distribution network. Power supply requires real-time balance of active and reactive power in the system. Therefore, the reactive power compensation device should meet the requirements of automatic tracking and real-time compensation, which inevitably requires frequent switching and switching of reactive power compensation capacitor banks. The switching operation of the capacitor bank will produce overcurrent and overvoltage shocks, which will cause damage to the capacitor. In order to ensure the reliability of the equipment, early detection of capacitor defects and avoid the expansion of faults, regular inspections are required. In the field, capacitors are all connected in groups in parallel. The traditional method is to remove the capacitor bus and then measure with an old-fashioned capacitor meter. Since the capacitor bank is composed of dozens to hundreds of small capacitors, it is necessary to disconnect the wires to measure the capacitance. The amount is large, and frequent removal of the wires will cause the screws to slip or not tighten, leaving a safety hazard, and it is also easy to cause secondary damage to the capacitor. Therefore, it is very desirable to have a test instrument that can measure the capacitance of each small capacitor without removing the wires, reduce the burden on maintenance personnel, improve the efficiency of maintenance work, and improve the safety of the distribution network operation.

Technical index

1. Test voltage: AC 25V±10%, 50Hz

AC 1.25V±10%, 50Hz 25VA

2. Measuring range and accuracy:

Measurable capacitance range: 0.1uF~6800uF±(reading 1%+0.01uF)

Measurable inductance range: 50uH~20H ±(reading 3%+0.05uH)

Measurable current range: 5mA~20A±(reading 3%+0.05mA)

Measurable resistance range: 20mΩ~20kΩ±(reading 3%+0.1mΩ)

3. Dimensions: 400mm×300mm×200mm

Packing List

(1)We will ship products within 5-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.

1.Q: Are you trading company or manufacturer?
A: We are manufacturer.

We have R&D department, OEM& ODM services available.

2.Q: How long is your delivery time?
A: We usually arrange shipment within 5-7 working days after checking the payment. However, for example, the delivery time of the complete set of test devices will be a little longer, which needs to be checked in real time.

3.Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample, but not for free; you need pay charge and the cost of freight.

4.Q: What is your term of payment?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 50% T/T in advance, balance before shipment.

5.Q: What is the payment method?
A: We can accept Bank Transfer, T/T, L/C.

6.Q: Will you provide OEM service?
A: OEM & ODM services available

7.Q: How long is the product warranty?
A: 1 year.
