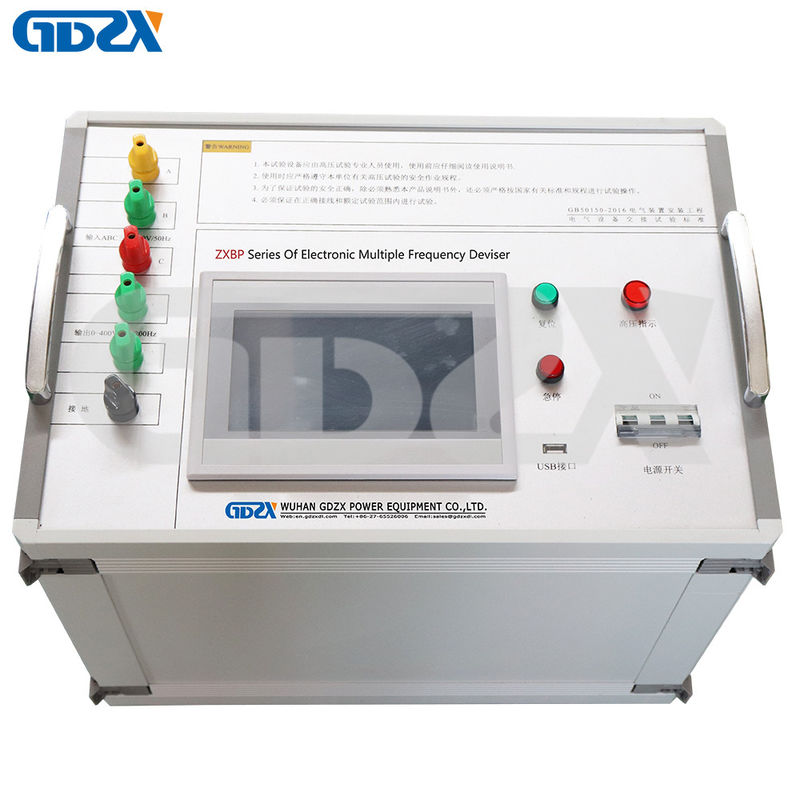

ZXBP GDZX Brand Electronic Multiple Frequency Power Generator

Product Details

Place of Origin: Hubei, China

Brand Name: GDZX

Certification: ISO9001

Model Number: ZXBP series electronic multiple frequency generator

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: US $500.00-15000.00/SET

Packaging Details: carton or wooden case

Delivery Time: 8-20 working days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 1200 Sets / Year

Get Best Price
Product Details
Highlight:

50Hz Frequency Power Generator

,

20kVA Electronic Power Generator

Capacity:
0-20kVA
Input Voltage:
AC, Three-phase, 380V±10%
Power Frequency:
50Hz
Output Voltage:
0 ~ 400V (Variable Voltage After Adding Booster Transformer, Additional)
Output Frequency:
50Hz, 100Hz, 150Hz, 200Hz (optional)
Waveform Distortion Rate:
<3%
Capacity:
0-20kVA
Input Voltage:
AC, Three-phase, 380V±10%
Power Frequency:
50Hz
Output Voltage:
0 ~ 400V (Variable Voltage After Adding Booster Transformer, Additional)
Output Frequency:
50Hz, 100Hz, 150Hz, 200Hz (optional)
Waveform Distortion Rate:
<3%
Product Description
ZXBP series electronic multiple frequency generator


Product introduction

The induction withstand voltage test of transformer and transformer is an important test to ensure that the product quality meets the national standard. The induction voltage test between turns, layers, segments and phases of transformer winding is an important item in transformer insulation test. The longitudinal insulation test needs to pass the frequency doubling power supply device, apply the test voltage, and carry out the voltage withstand test.
ZXBP series electronic multi-frequency generator is designed and manufactured to meet the above requirements, and has been proved by the majority of users: its operation is simple, reliable performance, and can better meet the needs of transformer and transformer induction withstand voltage test.


Features


1. Small size, light weight, easy to carry, easy to power.
2. Not only to produce triple frequency, but also to produce 1, 2, 3, 4 times the frequency of the test voltage output.
3. The operation and wiring are simple, and the requirements for the field test power supply capacity are greatly reduced.


ZXBP GDZX Brand Electronic Multiple Frequency Power Generator 0


Product pictures

ZXBP GDZX Brand Electronic Multiple Frequency Power Generator 1ZXBP GDZX Brand Electronic Multiple Frequency Power Generator 2ZXBP GDZX Brand Electronic Multiple Frequency Power Generator 3ZXBP GDZX Brand Electronic Multiple Frequency Power Generator 4ZXBP GDZX Brand Electronic Multiple Frequency Power Generator 5



PACKING AND SHIPPING
(1)We will ship products within 7-15 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
If you need detailed specification, please feel free to contact us.ZXBP GDZX Brand Electronic Multiple Frequency Power Generator 6




Company introduction
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.



ZXBP GDZX Brand Electronic Multiple Frequency Power Generator 7

ZXBP GDZX Brand Electronic Multiple Frequency Power Generator 8


ZXBP GDZX Brand Electronic Multiple Frequency Power Generator 9


ZXBP GDZX Brand Electronic Multiple Frequency Power Generator 10ZXBP GDZX Brand Electronic Multiple Frequency Power Generator 11ZXBP GDZX Brand Electronic Multiple Frequency Power Generator 12



Service and Warranty
Service
* Provide professional consulting service; dedicated salesperson and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user’s questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others.
Warranty
* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.
* Our products are guaranteed with one year warranty and life-long tech support.
* Provide solutions within 24 hours when there is problems feedback from customer.

ZXBP GDZX Brand Electronic Multiple Frequency Power Generator 13




FAQ:


1.Q: Are you trading company or manufacturer?
A: We are manufacturer.

We have R&D department, OEM& ODM services available.


2.Q: How long is your delivery time?
A: We usually arrange shipment within 5-7 working days after checking the payment. However, for example, the delivery time of the complete set of test devices will be a little longer, which needs to be checked in real time.


3.Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample, but not for free; you need pay charge and the cost of freight.


4.Q: What is your term of payment?
A: Payment<=5000USD, 100% T/T in advance. Payment>5000USD, 30% T/T in advance, balance before shipment.


5.Q: What is the payment method?
A: We can accept Bank Transfer, T/T.


6.Q: Will you provide OEM service?
A: OEM & ODM services available


7.Q: How long is the product warranty?
A: 1 year.
