Product Details
Place of Origin: China
Brand Name: GDZX
Certification: ISO
Model Number: ZXHL-200C
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: US $ $2100 - $2400
Packaging Details: Carton or wooden box
Payment Terms: L/C, T/T
Environmental Temperature:: |
-10 ℃~50 ℃ |
Resolution:: |
0.1uΩ |
Charging Voltage:: |
12.6V |
Output Current:: |
200A, 150A, 100A, 50A |
Accuracy:: |
± (reading* 0.5%+1u Ω) |
Host Size:: |
220mm*168mm*65mm |
Host Weight:: |
1.6kg |
Environmental Temperature:: |
-10 ℃~50 ℃ |
Resolution:: |
0.1uΩ |
Charging Voltage:: |
12.6V |
Output Current:: |
200A, 150A, 100A, 50A |
Accuracy:: |
± (reading* 0.5%+1u Ω) |
Host Size:: |
220mm*168mm*65mm |
Host Weight:: |
1.6kg |

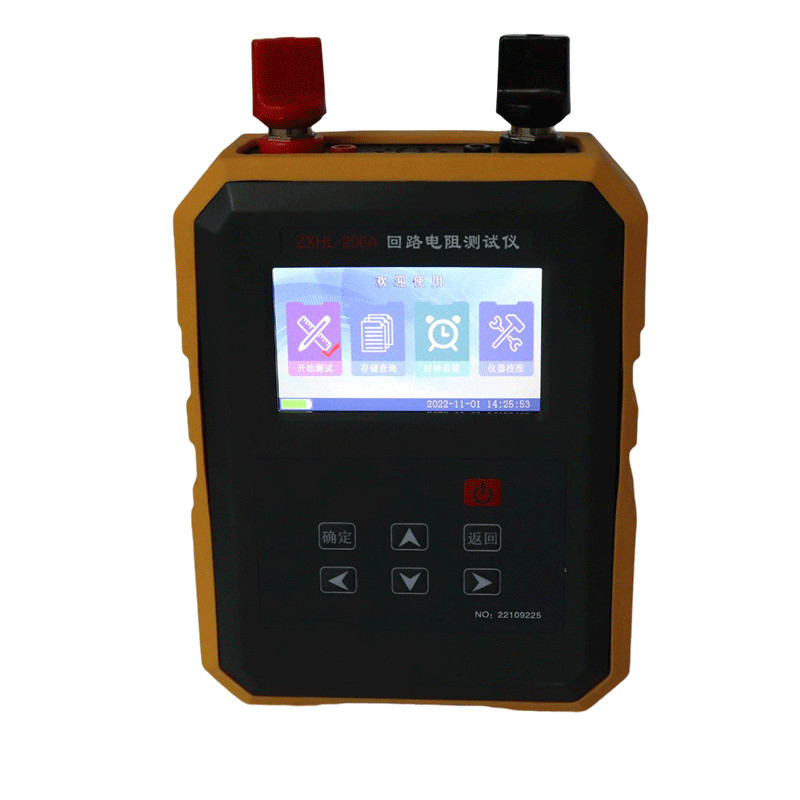

ZXHL-200C Loop Resistance Tester
Introduction
The tester is mainly suitable for testing the contact resistance of the high and low voltage switch, the DC resistance of the high and low voltage cable line and other micro ohm resistance measurement, the test speed is fast and the accuracy is high.
1. Output current up to 200A, multi-grade current optional, wide measuring range.
2. A variety of measurement time options to meet a variety of field applications.
3. Wide range, high precision, resolution 0.1uΩ.
4. Lithium battery power supply, a single charge can be carried out more than 500 consecutive tests, the measurement process is simple and convenient.
5. With open circuit protection, overheat protection and other protection functions.
6. Using 4.3 inch industrial high brightness color LCD screen, the display is clearly visible in strong sunlight.
7. Equipped with external printer, easy to print data.
8. With local storage and U disk storage, easy to save data.
| Output current | 200A,150A,100A,50A |
| Measurement range | 200A 0-1000u Ω,150A 0-1400u Ω,100A 0-2000u Ω,50A 0-10m Ω |
| Accuracy | ± (reading × 0.5%+1u Ω) |
| Resolution | 0.1u Ω |
| Measurement time | Fast, 10 ~ 60 seconds optional |
| Automatic shutdown | 5 minutes no operation automatically shut down |
| Working power supply | built-in lithium battery or external charger, charger input 100 ~ 240VAC, 50Hz/60Hz |
| Charging voltage | 12.6V |
| Charging current | ≤3A |
| Host size | 220mm ×168mm ×65mm |
| Host weight | 1.6kg (excluding test line) |
