Product Details
Place of Origin: China
Brand Name: GDZX
Certification: ISO
Model Number: DDG-1000A3
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $2,300.00-$2600.00/set
Packaging Details: Carton or wooden box
Payment Terms: L/C, T/T
Input Voltage :: |
AC380V 50Hz Three-phase Four-wire |
Power :: |
15KVA 1*3 |
Output Current: |
AC0 ~ 1000A Three-phase Output Stepless Adjustable |
Output Voltage :: |
(>5V) |
Output Current Mode:: |
Continuous Adjustable True RMS Value |
Current Stability :: |
1.0% |
Protection Settings:: |
Overcurrent, Overvoltage |
Input Voltage :: |
AC380V 50Hz Three-phase Four-wire |
Power :: |
15KVA 1*3 |
Output Current: |
AC0 ~ 1000A Three-phase Output Stepless Adjustable |
Output Voltage :: |
(>5V) |
Output Current Mode:: |
Continuous Adjustable True RMS Value |
Current Stability :: |
1.0% |
Protection Settings:: |
Overcurrent, Overvoltage |

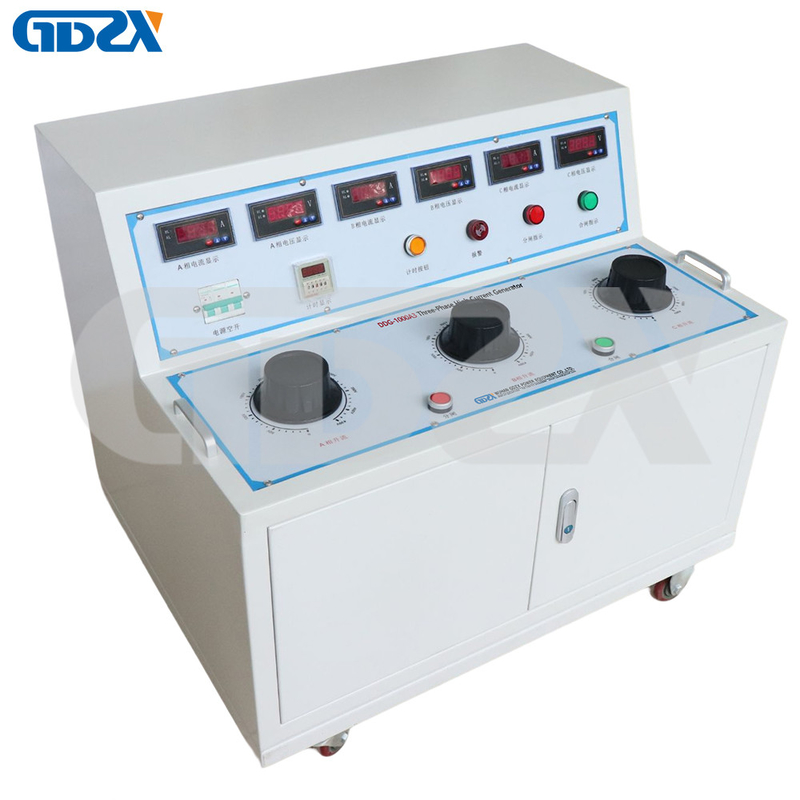

DDG-1000A3 Three-Phase High Current Generator
Introduction
DDG-1000A3 three-phase high current generator is a special equipment designed and manufactured for the electrical equipment test of power departments and industrial and mining enterprises, which is suitable for the current load test and temperature test of various switches, current transformers and other electrical equipment. This product adopts split/integral structure according to the different volume and weight. It has the characteristics of output current pole-free adjustment, stable current rise, large load variation range, reliable operation, simple and safe operation, etc. It can be used as the current source equipment for the upflow or temperature rise test in industrial and mining enterprises.
1. According to the volume, weight of the different use of split/integral structure;
2. With output current stepless adjustment, the current rises smoothly;
3. Large load variation range, reliable work, simple and safe operation;
4. It can be used as a current source equipment for upflow or temperature rise test in industrial and mining enterprises.
| Input voltage : | AC380V 50Hz three-phase four-wire |
| Power : | 15KVA 1*3 |
| Output current : | AC0 ~ 1000A three-phase output stepless adjustable, panel with digital display ammeter |
| Output voltage : | (>5V) |
| Output waveform: | The output current is a standard sine wave, small burr, better than the power system requirements of the index standard, ripple coefficient is less than 1.0%. Standard sine wave. |
| Measurement accuracy: | Each current can be smoothly and continuously adjustable, and the accuracy is higher than 1.0. The current voltmeter is displayed as a true and effective value with high accuracy and stability. |
| Output current mode: | continuous adjustable true RMS value |
| Current stability : | 1.0% |
| Structure form: | integrated |
| Protection Settings: | overcurrent, overvoltage |
Wuhan GDZX Power Equipment Co.,Ltd. is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
