Easy Operation Battery Charge Discharge Test Equipment , Battery Capacity Tester

Easy Operation Battery Charge Discharge Test Equipment , Battery Capacity Tester
Easy Operation Battery Charge Discharge Test Equipment , Battery Capacity Tester Easy Operation Battery Charge Discharge Test Equipment , Battery Capacity Tester

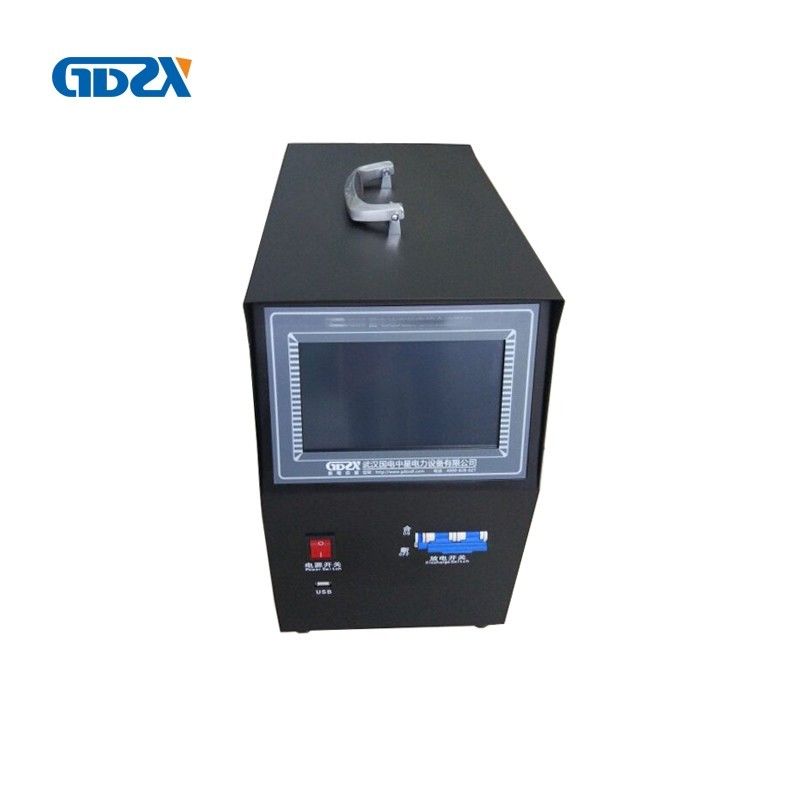

Large Image :  Easy Operation Battery Charge Discharge Test Equipment , Battery Capacity Tester

Product Details:

Place of Origin: CHINA
Brand Name: GDZX
Certification: ISO
Model Number: XDCF3986

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $999.00 - $4,000.00 / Sets
Packaging Details: CARTON
Delivery Time: 5-15 Work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1200 Sets /per Year
Detailed Product Description
Discharge Range: 96~270V Charge Voltage: Output 180~286V Continuous Adjustable
Power Supply: AC 3P4W 380V Input Load Voltage: 220V
Charge/discharge Time: 0~99 Hour 59 Min Cooling Method: Forced Air Cooling
High Light:

battery internal resistance meter

,

battery capacity tester

Battery Test Equipment Intelligent Battery capacity meter charge and discharge Tester



This device is a complex unit which provides one-stop-solution for battery maintenance, with functions of charge and discharge, single cell test, wireless online monitoring and battery activation, which will enable you to know your batteries comprehensively.





Features

1. LCD display, easy operation, high intelligence, Parameters(U, I, Time, capacity) setting, auto test.

2. On line monitor current, battery string voltage, individual cell voltage, time, capacity, save and print

3. Automatic charge and discharge function

4. Set charge and discharge cycle times, activation function

5. Auto-stop function: auto stop when any of the following conditions: time, capacity, single cell or battery string protection voltage are met.

6. Alarm and protection function: when voltage is abnormal and temperature is too high.

7. Calibration and correction function: of current, single cell or battery string voltage

8. Data transferring function: tested data can be transferred to U disk then to PC for processing

9. With RS232 communication interface

10. It integrates charge, discharge, single cell test, live monitoring and activation function into one machine.

11. Intelligent three stage charge, constant current discharge, real time on line monitoring

12. Safe, no hot-red phenomenon, long life because of using new type PTC ceramic resistance

13. No worry about storage capacity

14. It can generate all kinds of charts via data processing software

15. Portable design



Technique Parameters



Item Range Accuracy
discharge voltage range 96~270V Resolution: 10mV; error 0.1V
Total charge voltage output 180~286Vcontinuous adjustable Resolution: 10mV error 0.1V
Charge/discharge Single cell voltage 0.000V~16.00V Resolution:1mV;error10V
Charge/discharge current 0~30A Resolution 0.1mV;error1A
Power supply AC 3P4W 380V
Input load voltage 220V
charge/discharge time 0~99 hour 59 min
Cooling method Forced air cooling
discharge load PTC ceramic resistance





Easy Operation Battery Charge Discharge Test Equipment , Battery Capacity Tester 0
