|Product Name:||Insulation Resistance Tester||Rated Voltage(V):||100；250；500；1000；2500V；5000V|
|Insulation Resistance Range（GΩ）:||0.01MΩ～2000GΩ||Output Short-circuit Current:||≥5mA(5KV)|
|DC Voltage Range:||0～1000V||AC Voltage Range:||0～750V|
|Working Temperature And Humidity:||－10℃～+50℃＜85%RH||Power Supply:||12.6V Rechargeable Battery|
|Size And Weight::||49*39*22CM; 7KG|
insulation test equipment,
insulation resistance test instrument

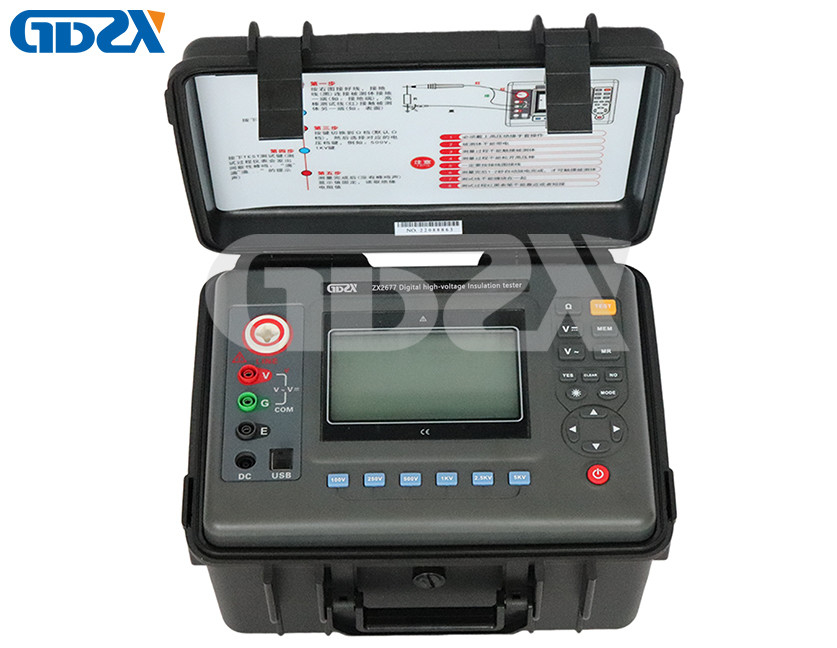

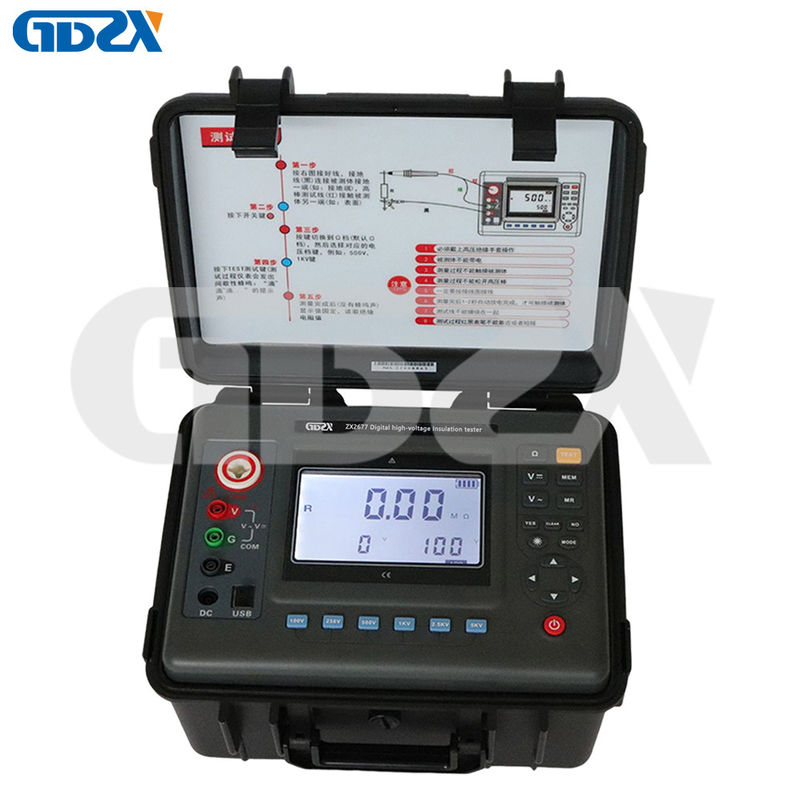

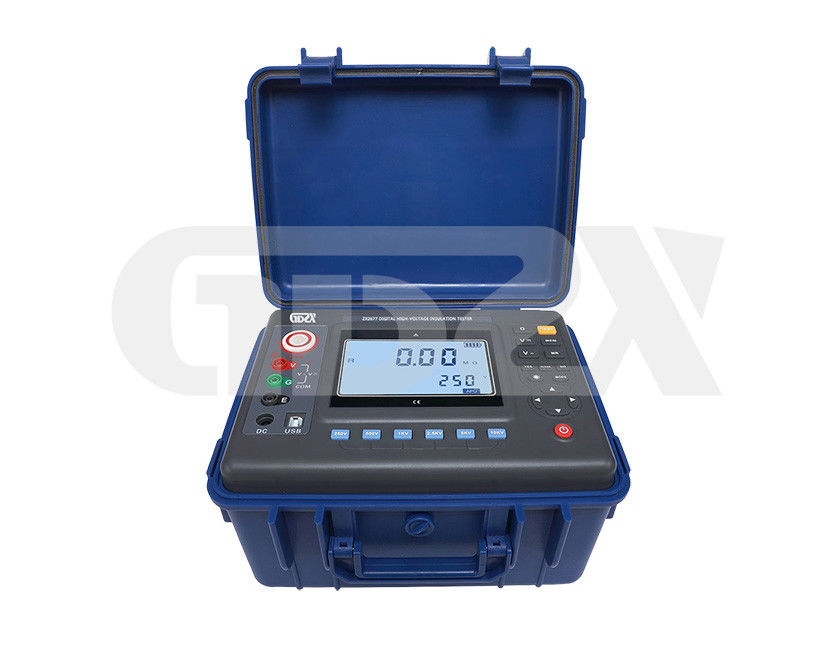

ZX2677 Digital Insulation Resistance Tester
1.The instrument has a large LCD screen gray backlit display, data storage, data access, alarm, automatic shutdown and other functions.
2.The function of measuring AC voltage absorption ratio and polarization index of DC voltage.
3.Digital insulation resistance meter consists of medium and large scale integrated circuits.
4. The output power of the watch is large, and the output voltage level is a lot (with 6 voltage levels).
5.Rated insulation test voltage range 100V ~ 5000V, insulation resistance measurement range 0.01MΩ ~ 2000GΩ.
6.DC voltage measurement range 0 ~ 1000V, AC voltage measurement range 0 ~ 750V.
|Function||Insulation resistance test, voltage test|
|Base conditions||23°C±5°C,below 75%rh|
|Test Voltage(V)||rated voltage×(1±10%)|
|Insulation Resistance Range(GΩ)||0.01MΩ～2000GΩ|
|Insulation Resistance Resolution||0.01MΩ|
|DC Voltage Range||0～1000V|
|DC Voltage Range Resolution||0.1V|
|AC Voltage Range||0～750V|
|AC Voltage Range||0.1V|
|Output short-circuit Current||≥5mA(5KV)|
|Absorption Ratio and Polarization Index Measurement||Have|
|Power Supply||12.6V rechargeable battery|
|Backlight||Controllable gray screen backlight, suitable for use in dim places|
|Dispaly mode||4-bit large LCD display, gray screen backlight|
|LCD display size||108mm×65mm|
|USB interface||With USB interface, software monitoring, storage data can be uploaded to the computer, save and print|
|Communication Line||USB communication line 1PC|
|Test Line||High voltage rob red 3meter, high voltage test line black 1.5meter, green 1.5meter|
|Data Storage||500 groups, "FULL" symbol indicates that storage is full|
|Data Review||Data review function: "MR" symbol display|
|Overflow Display||Exceed measurement range overflow function: “OL ” symbol display|
|Alarm Function||Alarm when the measured value smaller than the alarm setting value|
|Power Consumption||Standby: 30mA Max(backlight off)|
|Turn on backlight: 42mA Max|
|Measure:300mA Max(backlight off)|
|Instrument weight||2720g(including battery)|
|Battery voltage||When the battery voltage is low, low battery symbol will display|
|Automatic shut-down||automatic shutdown after 15 minutes boot|
|Insulation Resistance||≥50MΩ(between Measuring line and housing)|
|Pressure Resistance||AC3kV/50Hz 1min|
|Working Temperature and Humidity||－10℃～+50℃＜85%RH|
|Storage Temperature and Humidity||－15℃～+55℃＜90%RH|
|Suitable for Safety Regulations||IEC61010-1,IEC1010-2-31,IEC61557-1,5,IEC60529(IP54) pollution grade 2,CAT Ⅲ 300V|
