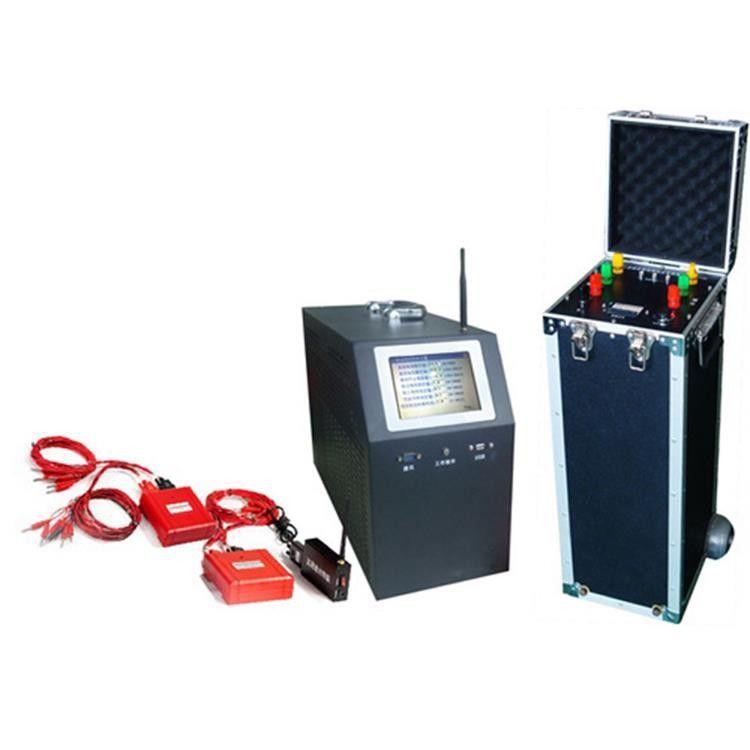

Integrated Heavy Duty Battery Discharge Tester Instrument Multifunction DC System

Product Details

Place of Origin: Hubei, China

Brand Name: GDZX

Certification: ISO9001

Model Number: ZX-CFD

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: $6,500.00 - $8,500.00 / Sets

Packaging Details: Carton or wooden box

Delivery Time: 7~10 work days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 100 Set/Sets per Month

Get Best Price
Product Details
Highlight:

battery internal resistance tester

,

battery capacity tester

Product Name:
DC System Integrated Testing Instrument Battery Tester
Power Supply:
AC220V±15%, 50HZ
Environment Temperature:
-20℃-+55℃
DC Voltage:
0~280V ±0.5%
Product Name:
DC System Integrated Testing Instrument Battery Tester
Power Supply:
AC220V±15%, 50HZ
Environment Temperature:
-20℃-+55℃
DC Voltage:
0~280V ±0.5%
Product Description



Integrated Heavy Duty Battery Discharge Tester Instrument Multifunction DC System



Introduction

The instrument was designed with many functions include stabilized voltage accuracy testing, stabilized current accuracy, ripple coefficient testing and battery discharging, it is installed with comprehensive analyzing software which can analyze the tested data after being uploaded into PC.



Features

1. The software is specially designed for DC system measurement

2. Adopts ARM, DSP and 16 bit Flash memory

3. Touch panel, simple operation

4. Can store, review the testing results or upload data into PC

5. Module structure, reliable running and reasonable design

6. Menu operation, easy to use

7. Software can be upgraded via U disk

8. Data can be analyzed via DC system comprehensive analysis software installed in PC

9. large LCD display, user-friendly interface

10. Full automation, once set the parameters, it automatically adjust AC voltage, load loading resistance, measure parameters, record testing results and stop measuring,

11. Real time on line test, record, single cell and battery bank voltage

12. RS232 and USB communication interface

13. Powerful data processing function: curve indication, report generating, accurate calculating

14. Protection function, auto stop or manually stop measurement

15. Three phase digital control voltage regulator with high precision high stability

16. Module assembly structure, small volume, little weight, easy for transporting or moving



Technique Parameters

Separate structure of Three phase voltage regulator and discharge test load

Three phase voltage regulator power: 15KVA, rated current: 50A

Environment temperature: -20℃-+55℃

Discharge test load working Power supply: AC220V±15% frequency 50HZ

Rated discharge current: ≤100A ( current can be customized)

DC voltage: Vdc: 0~280V ±0.5%

Ripple voltage Vpp: 0~10V ±0.5%

DC current measurement: 0~100A ±1%

Discharge current: 0~100A

Memory: 128M bit FLASH

Communication interface: USB

Display: 320×240 color graphic LCD + touch panelMain machine size and weight: 500×360×420(mm) 15Kg

Regulator size and weight: 260×350×600(mm) 18Kg

Applicable voltage grade: 110V, 220V(48V system, current 200A)
