|Measurement Range:||1～2000mΩ||Output Current:||10A|
|Measurement Accuracy:||±(0.5%+2d)||Measuring Radius:||50 M|
|Display:||Nixie Light Display||Power Supply:||AC220V|
220V Earth Continuity Tester,
10A Earth Continuity Tester,
Nixie Light Display Ground Continuity Tester
Earth Insulation Tester

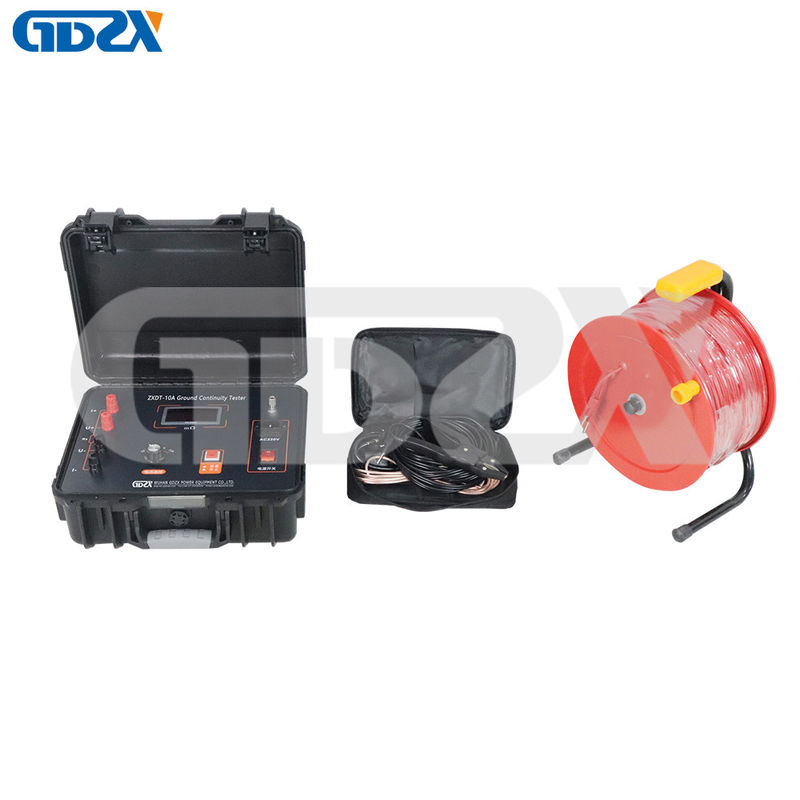

10A 1 - 200mΩ AC 220V Ground / Earth Continuity Tester Equipment
Ground down lead and earth mat of electrical equipment reliable and effective connection is the fundamental guarantee of instrument safety operation.
Ground down lead is the connection part of electrical equipment and earth mat.
In the long-term running, the connection part may be rusty even ruptured due to moisture and other factors, which will cause the resistance increases which at connection point of ground down lead and the main earth mat, and thus cannot meet the requirements of electrical power regulations and standard.
This device is specially used to test the electrical integrity of earthing device
1. Outputs 10A current, strong anti-interference ability, current output delay function
2. Constant current output, no need manual adjustments
3. High measuring speed, no charge-discharge process, 2 second for one point measurement
4. Simple operation: just pressing one key will get the measured result
5. DC resistance measurement
6. Panels and chassis is an organic whole, high shock resistant
