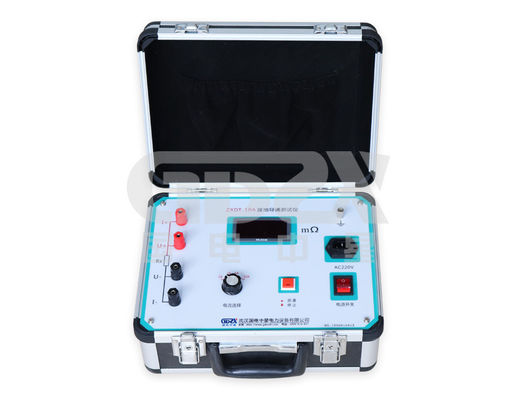

10A AC220V Earth Continuity Tester With Output current delay function

10A AC220V Earth Continuity Tester With Output current delay function
10A AC220V Earth Continuity Tester With Output current delay function 10A AC220V Earth Continuity Tester With Output current delay function 10A AC220V Earth Continuity Tester With Output current delay function 10A AC220V Earth Continuity Tester With Output current delay function 10A AC220V Earth Continuity Tester With Output current delay function 10A AC220V Earth Continuity Tester With Output current delay function

Large Image :  10A AC220V Earth Continuity Tester With Output current delay function

Product Details:
Place of Origin: Hubei, China
Brand Name: GDZX
Certification: ISO9001
Model Number: ZXDT-10A
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: $1359.00~$3689.00 / Sets
Packaging Details: Carton or Wooden Case
Delivery Time: 8-15 working days
Payment Terms: T/T, L/C
Supply Ability: 1200 Sets/ year
Detailed Product Description
Product Name: Ground Continuity Tester Power Supply: AC220V
Display: Nixie Light Display Work Mode:: Continuous
Measurement Range: 1~2000mΩ Output Current: 10A
Measurement Accuracy: ±(0.5%+2d) Measuring Radius: 50 M
High Light:

220V Earth Continuity Tester

,

10A Earth Continuity Tester

,

Nixie Light Display Ground Continuity Tester

ZXDT-10A Ground Continuity Tester

Product introduction

Ground down lead and earth mat of electrical equipment reliable and effective connection is the fundamental guarantee of instrument safety operation. Ground down lead is the connection part of electrical equipment and earth mat. In the long-term running, the connection part may be rusty even ruptured due to moisture and other factors, which will cause the resistance increases which at connection point of ground down lead and the main earth mat, and thus cannot meet the requirements of electrical power regulations and standard. ZXDT-10A Ground Continuity Tester is specially used to test the electrical integrity of earthing device.

10A AC220V Earth Continuity Tester With Output current delay function 0


Features

1. Outputs 10A current, strong anti-interference ability, current output delay function.

2. Constant current output, no need manual adjustments.

3. High measuring speed, no charge-discharge process, 2 second for one point measurement.

4. Simple operation: just pressing one key will get the measured result.

5. DC resistance measurement.

6. Panels and chassis is an organic whole, high shock resistant.

10A AC220V Earth Continuity Tester With Output current delay function 1


Technical Indicators

Measurement Range: 1~2000mΩ
Output current: 10A
Measurement Accuracy: ±(0.5%+2d)
Measuring Radius: 50 m
Display: Nixie light display
Work Mode: Continuous
Power supply: AC220V
Work Environment: Temperature: -10℃~40℃
Relative Humidity: ≤90%RH( no condensing)
Dimension: 290*260*100mm3





Product pictures
10A AC220V Earth Continuity Tester With Output current delay function 210A AC220V Earth Continuity Tester With Output current delay function 310A AC220V Earth Continuity Tester With Output current delay function 410A AC220V Earth Continuity Tester With Output current delay function 510A AC220V Earth Continuity Tester With Output current delay function 610A AC220V Earth Continuity Tester With Output current delay function 710A AC220V Earth Continuity Tester With Output current delay function 810A AC220V Earth Continuity Tester With Output current delay function 9



PACKING AND SHIPPING
(1)We will ship products within 7-15 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
If you need detailed specification, please feel free to contact us.10A AC220V Earth Continuity Tester With Output current delay function 10





Company introduction
Wuhan GDZX Power Equipment Co.,Ltd. is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.

10A AC220V Earth Continuity Tester With Output current delay function 11



10A AC220V Earth Continuity Tester With Output current delay function 12



10A AC220V Earth Continuity Tester With Output current delay function 13

10A AC220V Earth Continuity Tester With Output current delay function 14






10A AC220V Earth Continuity Tester With Output current delay function 1510A AC220V Earth Continuity Tester With Output current delay function 1610A AC220V Earth Continuity Tester With Output current delay function 17




Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user’s questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others.
Warranty
* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.
* Our products are guaranteed with one year warranty and life-long tech support.
* Provide solutions within 24 hours when there is problems feedback from customer.

10A AC220V Earth Continuity Tester With Output current delay function 18





FAQ:



1.Q: Are you trading company or manufacturer?
A: We are manufacturer.

We have R&D department, OEM& ODM services available.



2.Q: How long is your delivery time?
A: We usually arrange shipment within 5-7 working days after checking the payment. However, for example, the delivery time of the complete set of test devices will be a little longer, which needs to be checked in real time.



3.Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample, but not for free; you need pay charge and the cost of freight.



4.Q: What is your term of payment?
A: Payment<=5000USD, 100% in advance. Payment>5000USD, 40% T/T in advance, balance before shipment.



5.Q: What is the payment method?
A: We can accept Bank Transfer, T/T.



6.Q: Will you provide OEM service?
A: OEM & ODM services available



7.Q: How long is the product warranty?
A: 1 year.
