Optical Digital Handheld Messages Analyzer For Intelligent Substation

Optical Digital Handheld Messages Analyzer For Intelligent Substation
Optical Digital Handheld Messages Analyzer For Intelligent Substation Optical Digital Handheld Messages Analyzer For Intelligent Substation

Large Image :  Optical Digital Handheld Messages Analyzer For Intelligent Substation

Product Details:
Place of Origin: China
Brand Name: GDZX
Certification: ISO9001
Model Number: ZX-602
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Packaging Details: Packing wooden case or carton
Delivery Time: 7-20 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P, WeChat, Paypal
Supply Ability: 1200sets/year
Detailed Product Description
Power Supply: 4.2V,3.0A Battery: Li-On Rechargeable,11000mAh
Endurance Time: > 6 Hours Volume: 250mm*140mm*44mm
Weight: <1Kg USB Interface: 1pc,USB Storage Device
Accuracy: <400ns Fast Departure Time: <10μs
High Light:

Optical Handheld Messages Analyzer

,

Intelligent Substation Handheld Messages Analyzer

,

Intelligent Substation Relay Protection Tester

Handheld Messages Analyzer, Optical Digital Relay Protection Tester For Intelligent Substation

Product introduction

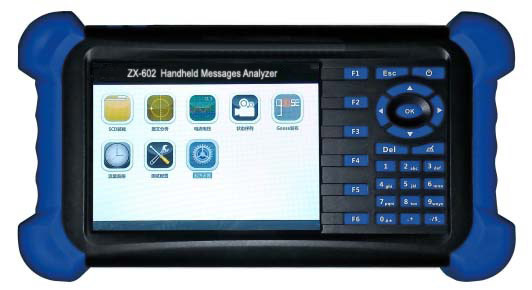

     ZX-602 Handheld Messages Analyzer can be used for fast test of protection devices, intelligent terminals, merging units and transducers. It is multi-functional with high precision and is essential equipment for installation, debugging, and maintenance of intelligent substation.

 Optical Digital Handheld Messages Analyzer For Intelligent Substation 0



Features



1. Capacitive mul-touch panel (5.7”), built in 11000mAh rechargeable li-battery, the continuous voyage ability over 6 hours

2. With 3 pairs optical Ethernet interface, 1 pair optical serial interface, 1 IRIG-B/PPS synchronous interface, support single-mode fiber connection

3. G-net interface for optical Ethernet interface, 100/1000Mbits/s self-adaptive

4. 2 channel hard switching input contact and 4 channel hard switching output contact, for intelligent terminal response testing

5. Support connection with USB storage device, for data import/export

6. Support IEC61850-9-1/2/LE,Goose,IEC60044-7/8 FT3,MMS,STNP,GRMP,IEEE-1588,IRIG-B,PPS,SCL standards.

7. Multi-functional, can test bay level, process level protection device, merging unit, intelligent terminal, mutual inducors.

8. Graph demonstration of various electrical parameters, direct result reading

9. A9+FPGA dual-core IPC performance, fast operation speed, message sending dispersion <0.1us, receiving time error <25ns

10. Small and portable, simple to use



Technical Indicators


Technical parameter
Optical fiber Ethernet port 3pairs*100/1000Mbits/s,adaptive,LC, multimode,310nm;IEC61850-9-1/2/LE,Goose,IEEE-1588;With optical power measurement; Transmission dispersion:<0.1μs
Receiving time scale accuracy:<25ns
1588 timing accuracy:<80ns
Optical fiber serial port

1 pair*(2-10Mbits / s), LC, multimode, 850nm;

IEC60044-7/8,FT3;Support man code or asynchronous serial port transmission mode;

Transmission dispersion:<0.1μs
Receiving time scale accuracy:<25ns
Synchronous interface 1 pair*IRIG-B/PPS optical port, LC, multimode, 850nm Accuracy:<400ns
Hard input 2 pairs,10-250VDC or empty contact, automatic identification, no polarity
Hard out 2 pairs, empty contact / quick opening, AC/DC breaking capacity:0.5A,250 Fast departure time:<10μs
Electric Ethernet port 1pc,RJ-45,100Mbits/s
USB interface 1pc,USB storage device
Screen 5.7’,Capacitive screen, multi touch
Power supply 4.2V,3.0A
Battery Li-On rechargeable,11000mAh Endurance time: > 6 hours
Volume 250mm*140mm*44mm Weight:<1Kg





Company introduction
      Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.Optical Digital Handheld Messages Analyzer For Intelligent Substation 1
Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.

* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user’s questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others.

Warranty
* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.
* Our products are guaranteed with one year warranty and life-long tech support.
* Provide solutions within 24 hours when there is problems feedback from customer.Optical Digital Handheld Messages Analyzer For Intelligent Substation 2

PACKING AND SHIPPING
(1)We will ship products within 5-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
If you need detailed specification, please feel free to contact us.Optical Digital Handheld Messages Analyzer For Intelligent Substation 3
