250kPa Gas Relay Calibrator With Single Pipe Structure

250kPa Gas Relay Calibrator With Single Pipe Structure
250kPa Gas Relay Calibrator With Single Pipe Structure

Large Image :  250kPa Gas Relay Calibrator With Single Pipe Structure

Product Details:
Place of Origin: China
Brand Name: GDZX
Certification: ISO9001
Model Number: ZX-RLC
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: US $22994.00-$40589.00 /SET
Packaging Details: Packing wooden case or carton
Delivery Time: 7-20 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P, WeChat, Paypal
Supply Ability: 1200sets/year
Detailed Product Description
Product Name: Gas Relay Calibrator Flow Velocity Range Of φ25mm Pipe Diameter: 0.6-4.2m/s;
Light Gas Volume Detection Range: 0 ~ 950mL. Seal Detection Time Range: 1 ~ 60min.
Seal Detection Pressure Range: 0 ~ 250kPa; QJ-40 Relay Detection Range: 1mm-150mm.
Digits Of Light Gas Volume Display: 0.0mL, Accuracy: 1.0%; QJ-40 Display Digits: 0.0mm, Accuracy: 1.0 Level.
Sealed Display Digits: 0.0kPa, Accuracy: 0.5%;
High Light:

250kPa Gas Relay Calibrator

,

Single Pipe Structure Gas Relay Calibrator

,

250kPa Relay Protection Tester

250kPa Gas Relay Calibrator With Single-pipe Structure Design


Product introduction

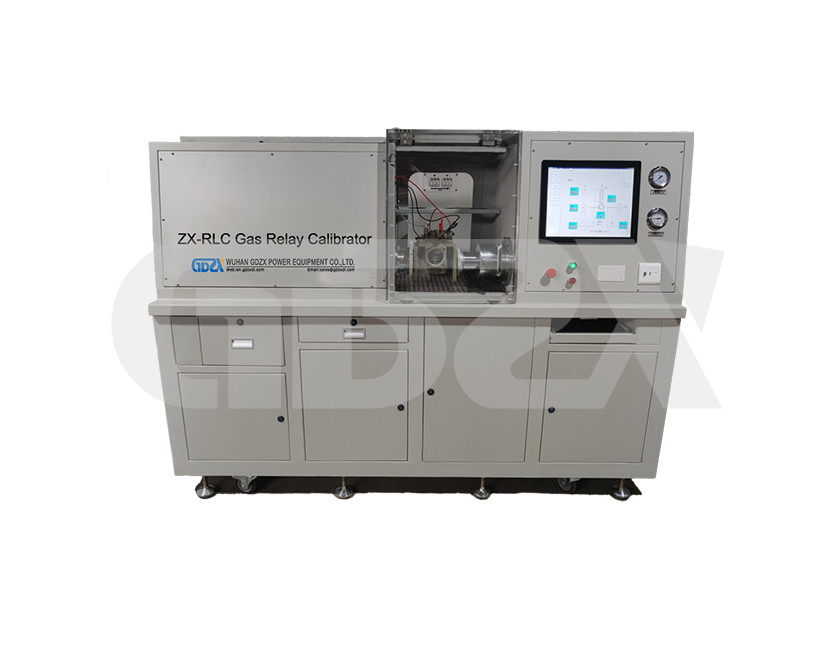

      The ZX-RLC Gas Relay Calibrator adopts an integrated design. The device is embedded with a full-color capacitive touch display and a wireless keyboard and mouse. It can easily and intuitively perform related operations on the flow rate, volume, and seal detection of the system, and simultaneously edit and print the related test report, and can save the data for reading and printing at any time.

     This product adopts a single-pipe structure design, which greatly reduces the volume and cost of the three-pipe equipment. Embedded integrated design, friendly operation interface, high degree of automation of the whole machine.

250kPa Gas Relay Calibrator With Single Pipe Structure 0







Features

1. Acquisition system: advanced CAN bus architecture is adopted for upper and lower computer communication, which improves the response time of high-speed data acquisition and the service life of the acquisition system. There are three pairs of heavy gas flow rate and light gas volume sampling nodes, which can complete the sampling of three nodes in one test project and display the status of the three nodes.

2. Pipeline structure: 80-caliber main detection pipeline is adopted, with 25-caliber and 50-caliber tapered pipe structures, flowmeters and relays are provided with straight flow straight sections, and the front 8D and 5D can meet the relevant fluid standards.

3. Flow rate part: A vector frequency converter is used to control the circulating oil flow of the centrifugal oil pump, which reduces the pulsating flow to the flowmeter and the relay when the oil pump is output, and improves the stability of the oil flow. Adopt 25 and 50 flowmeter pulse output high-speed frequency measurement, 25 flowmeter to detect the flow rate of 25 caliber relay, 50 flowmeter to detect the flow rate of 50 and 80 caliber relay (V = Qv / S (V = flow rate; Qv = flow rate; S = pipe cut Area), thereby improving the accuracy of flow rate detection.

4. Volume part: Adopt the pulse counting of the gear metering pump, control the motor speed of the metering pump through the analog output signal, accurately record the number of pulses, and improve the volume detection accuracy and detection range.

5. Pressure part: The centrifugal oil pump is used to apply the oil pressure by blocking rotation, and the pressure transmitter analog output is sampled.

6. Clamping part: adopts unilateral suspension centering hydraulic automatic clamping mechanism, the concentric deviation is less than ± 3mm, which greatly reduces the clamping work intensity.

7. Human-computer interaction: The integrated design is adopted. The device is embedded with a full-color capacitive touch display and a wireless keyboard and mouse. It can easily and intuitively perform related operations on the flow rate, volume, and seal detection of the system, and edit and print the related detection report at the same time. Data can be saved for reading and printing at any time.


Technical Indicators


1. Measuring range



(1) Detection of heavy gas flow rate

Flow velocity range of φ25mm pipe diameter: 0.6 ~ 4.2m / s;

Flow velocity range of φ50 mm pipe diameter: 0.6 ~ 3.2m / s;

The flow velocity range of φ80mm pipe diameter: 0.6 ~ 2.2m / s.



(2) Light gas volume detection

Detection range: 0 ~ 950mL.



(3) Seal detection pressure and time range

Seal detection pressure range: 0 ~ 250kPa;

Seal detection time range: 1 ~ 60min.



(4) QJ-40 relay detection

Detection range: 1mm-150mm.



2. Precision



(1) Flow rate detection accuracy: 1.5 grades, flowmeter accuracy: 0.5 grades, heavy gas flow velocity display digits: 0.00m / s;



(2) Digits of light gas volume display: 0.0mL, accuracy: 1.0%;



(3) Sealed display digits: 0.0kPa, accuracy: 0.5%;



(4) QJ-40 display digits: 0.0mm, accuracy: 1.0 level.



1. Measuring range



(1) Detection of heavy gas flow rate

Flow velocity range of φ25mm pipe diameter: 0.6 ~ 4.2m / s;

Flow velocity range of φ50 mm pipe diameter: 0.6 ~ 3.2m / s;

The flow velocity range of φ80mm pipe diameter: 0.6 ~ 2.2m / s.



(2) Light gas volume detection

Detection range: 0 ~ 950mL.



(3) Seal detection pressure and time range

Seal detection pressure range: 0 ~ 250kPa;

Seal detection time range: 1 ~ 60min.



(4) QJ-40 relay detection

Detection range: 1mm-150mm.



2. Precision



(1) Flow rate detection accuracy: 1.5 grades, flowmeter accuracy: 0.5 grades, heavy gas flow velocity display digits: 0.00m / s;



(2) Digits of light gas volume display: 0.0mL, accuracy: 1.0%;



(3) Sealed display digits: 0.0kPa, accuracy: 0.5%;



(4) QJ-40 display digits: 0.0mm, accuracy: 1.0 level.






Test cases

250kPa Gas Relay Calibrator With Single Pipe Structure 1250kPa Gas Relay Calibrator With Single Pipe Structure 2250kPa Gas Relay Calibrator With Single Pipe Structure 3




Company introduction
      Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.250kPa Gas Relay Calibrator With Single Pipe Structure 4
