ZXC38 2500V / 5000V Insulation Test Equipment for Internal Water Cooling Generator

Product Details

Place of Origin: China

Brand Name: GDZX

Certification: ISO9001

Model Number: ZXC38

Payment & Shipping Terms

Minimum Order Quantity: 1Set

Price: US $2269.00-$4139.00 /SET

Packaging Details: Packing wooden case or carton

Delivery Time: 7-20 work days

Payment Terms: L/C,T/T,Western Union,MoneyGram,D/A,D/P,WeChat,Paypal

Supply Ability: 1200sets/year

Get Best Price
Product Details
Highlight:

2500V Insulation Test Equipment

,

5000V Insulation Test Equipment

,

Internal Water Cooling Generator Insulation Tester

Product Name:
Internal Water Cooling Generator Insulation Tester
Test Range:
0.1 MΩ-200GΩ
Accuracy:
± (10%+ 5words)
Display:
Digital Display Plus Simulation Progress Bar Display
Temperature Measurement:
25℃~125℃
Test Voltage:
2.5kV, 5.0kV FOR OPTIONS
Output Short Circuit Current:
≥25mA
Measuring Time:
1 Min ~ 10 Min ( Related To Testing Method)
Charging Power Supply:
180~270VAC, 50Hz/60Hz±1%
Working Temperature And Humidity:
-10 ℃~ 40 ℃, 20~80%RH
Product Name:
Internal Water Cooling Generator Insulation Tester
Test Range:
0.1 MΩ-200GΩ
Accuracy:
± (10%+ 5words)
Display:
Digital Display Plus Simulation Progress Bar Display
Temperature Measurement:
25℃~125℃
Test Voltage:
2.5kV, 5.0kV FOR OPTIONS
Output Short Circuit Current:
≥25mA
Measuring Time:
1 Min ~ 10 Min ( Related To Testing Method)
Charging Power Supply:
180~270VAC, 50Hz/60Hz±1%
Working Temperature And Humidity:
-10 ℃~ 40 ℃, 20~80%RH
Product Description
2500V/5000V Internal Water Cooling Generator Insulation Characteristic Tester

Product introduction

      ZXC38 Internal Water cooling generator Insulation Tester can be used for measuring internal water cooling generator or laboratory insulation test.

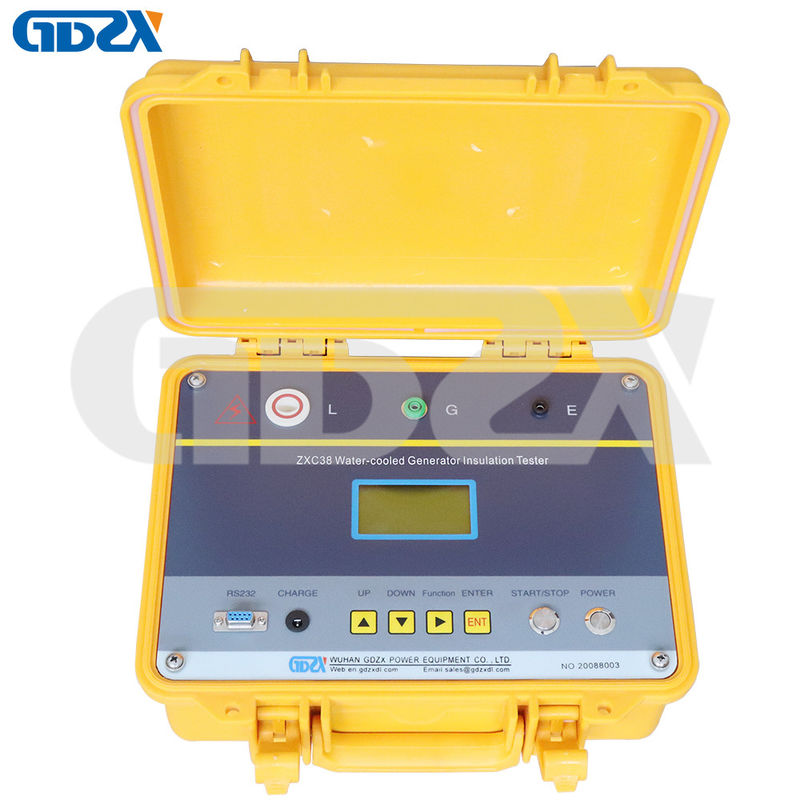

ZXC38 2500V / 5000V Insulation Test Equipment for Internal Water Cooling Generator 0


Features

1. 32 bit micro controller, menu operation

2. Large output current (>25mA under 2500V), short circuit current≧25mA

3. safe and reliable with hv generator fully enclosed and with protective resistor inside.

4. strong anti-interference ability, can satisfy EHV substation site operation

5. auto discharge after test and real-time monitor discharge process

6. suitable for measuring insulation resistance, DAR ( R60S/R15S) and PI (R10min/R1min) of water cooled generator

7. testing voltage 2500V/5000V, can measure up to 2TΩ insulation resistance

8. auto compensation to water polarization potential, measuring being accurate even when the resistance between the base and water collecting pipe is less than 10KΩ

9. high output power, load resistance between circuit to water collecting pipe can be as low as 100kΩ (2500V)/150kΩ(5000V),insulation resistance can be low as 1MΩ(2500V)/2MΩ(5000V)

10. simulation progress bar displaying the insulation resistance value, logarithmic scale, easy to read

11. Three and a half bit LCD digital meter

12. Time display (minute/second, 32 minutes a cycle), and beep every 15 seconds,

13. auto test and record value of R15S, R60S, R10min, DAP, PI.


Technical Indicators

1. Test range: 0.1 MΩ-200GΩ
2. Accuracy: ± (10%+ 5words)
3. Display: digital display plus simulation progress bar display
4. Temperature measurement: -25℃~125℃
5. Test Voltage: 2.5kV, 5.0kV FOR OPTIONS
6. Output short circuit current: ≥25mA
7. Measuring time: s 1 min ~ 10 min ( related to testing method)
8. Charging Power supply: 180~270VAC, 50Hz/60Hz±1%
9. Working temperature and humidity: -10 ℃~ 40 ℃, 20~80%RH

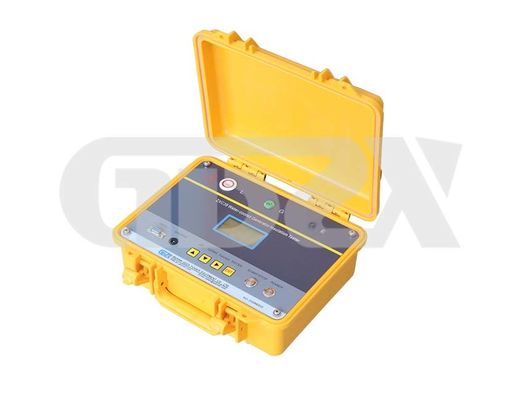

ZXC38 2500V / 5000V Insulation Test Equipment for Internal Water Cooling Generator 1
