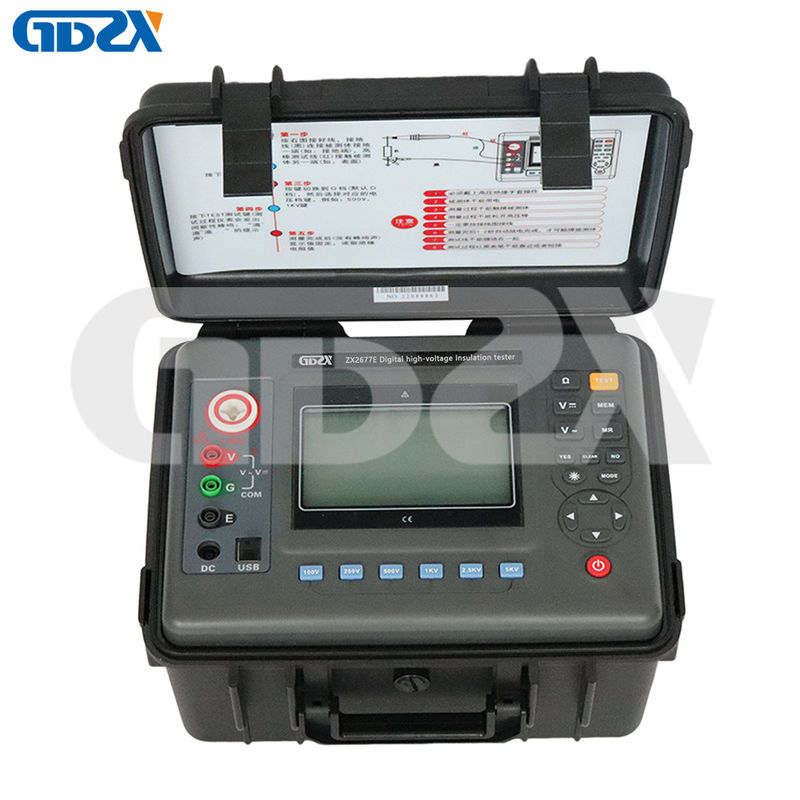

Portable 10KV Digital Insulation Resistance Tester Shockproof With LCD Display

Portable 10KV Digital Insulation Resistance Tester Shockproof With LCD Display
Portable 10KV Digital Insulation Resistance Tester Shockproof With LCD Display Portable 10KV Digital Insulation Resistance Tester Shockproof With LCD Display Portable 10KV Digital Insulation Resistance Tester Shockproof With LCD Display Portable 10KV Digital Insulation Resistance Tester Shockproof With LCD Display

Large Image :  Portable 10KV Digital Insulation Resistance Tester Shockproof With LCD Display

Product Details:
Place of Origin: China
Brand Name: GDZX
Certification: ISO9001
Model Number: ZX2677E
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: US $919.00-1879.00/SET
Packaging Details: Packing wooden case or carton
Delivery Time: 7-20 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P, WeChat, Paypal
Supply Ability: 1200sets/year
Detailed Product Description
Product Name: Digital High-voltage Insulation Tester Base Conditions: 23°C±5°C,below 75%rh
Rated Voltage(V): 250;500;1000;2500;5000V;10KV; Test Voltage(V): Rated Voltage*(1±10%)
Insulation Resistance Range(GΩ): 0.01MΩ~2000GΩ Voltage Range: DC:0~1000V; AC: 0~750V
Power Supply: 12V Rechargeable Battery; Data Storage: 500 Groups, "FULL" Symbol Indicates That Storage Is Full;
Instrument Weight: 2750g(including Battery); Working Temperature And Humidity: -10℃~+50℃,<85%RH;
High Light:

10KV Digital Insulation Resistance Tester

,

Shockproof Digital Insulation Resistance Tester

,

10KV Insulation Resistance Test Equipment

Portable 10KV 2000GΩ LCD Display Digital High-voltage Insulation Resistance Tester
Insulation Resistance Tester

Product introduction

      ZX2677E Digital insulation resistance meter also known as megohmmeter, high voltage insulation resistance tester, etc., for the insulation resistance test. The instrument has a large LCD screen gray backlit display, data storage, data access, alarm, automatic shutdown and other functions. At the same time, it also has the function of measuring AC voltage absorption ratio and polarization index of DC voltage. The machine is beautiful and upscale, has a wide range, high resolution, convenient operation, easy to carry, accurate, reliable, stable performance, strong anti-interference ability. Moreover, it has a shockproof, dustproof, moisture-proof structure and is a commonly used and indispensable instrument for telecommunications, electricity, meteorology, computer rooms, oil fields, electromechanical installation and maintenance, and industrial enterprises that use electricity as industrial power or energy.

Portable 10KV Digital Insulation Resistance Tester Shockproof With LCD Display 0Portable 10KV Digital Insulation Resistance Tester Shockproof With LCD Display 1



Features

1. The instrument has a large LCD screen gray backlit display, data storage, data access, alarm, automatic shutdown and other functions.

2. The function of measuring AC voltage absorption ratio and polarization index of DC voltage.

3. Digital insulation resistance meter consists of medium and large scale integrated circuits.

4. The output power of the watch is large, and the output voltage level is a lot (with 6 voltage levels).

5. Rated insulation test voltage range 250V ~ 10kV, insulation resistance measurement range 0.01MΩ ~ 2000GΩ.

6. DC voltage measurement range 0 ~ 1000V, AC voltage measurement range 0 ~ 750V.

Portable 10KV Digital Insulation Resistance Tester Shockproof With LCD Display 2


Technical Indicators

Function Insulation resistance test, voltage test
Base conditions 23°C±5°C,below 75%rh
Rated voltage(V) 250;500;1000;2500;5000V;10KV
Test Voltage(V) rated voltage×(1±10%)
Insulation Resistance Range(GΩ) 0.01MΩ~2000GΩ Resolution:0.01MΩ
DC Voltage Range 0~1000V Resolution:0.1V
AC Voltage Range 0~750V Resolution:0.1V
Output short-circuit Current ≥5mA(10KV)

Absorption Ratio and Polarization

Index Measurement

Have
Power Supply 12V rechargeable battery
Backlight Controllable gray screen backlight, suitable for use in dim places
Dispaly mode 4-bit large LCD display, gray screen backlight
LCD display size 108mm×65mm
Instrument size L/W/H:277.2mm×227.5mm×153mm
USB interface With USB interface, software monitoring, storage data can be uploaded to the computer, save the print
Communication Line USB communication line 1PC
Test Line High voltage rob red 3meter, high voltage test line black 1.5meter, green 1.5meter
Data Storage 500 groups, "FULL" symbol indicates that storage is full
Data Review Data review function: "MR" symbol display
Overflow Display Exceed measurement range overflow function: “OL ” symbol display
Alarm Function Alarm when the measured value smaller than the alarm setting value
Power Consumption Standby: 30mA Max(backlight off), turn on backlight: 42mA Max, measure:300mA Max(backlight off)
Instrument weight 2750g(including battery)
Battery voltage When the battery voltage is low, low battery symbol “ battery ”will display
Automatic shut-down automatic shutdown after 15 minutes boot
Insulation Resistance ≥50MΩ(between Measuring line and housing)
Pressure Resistance AC3kV/50Hz 1min
Working Temperature and Humidity -10℃~+50℃<85%RH
Storage Temperature and Humidity -15℃~+55℃<90%RH
Suitable for Safety Regulations IEC61010-1,IEC1010-2-31,IEC61557-1,5,IEC60529(IP54) pollution grade 2,CAT Ⅲ 300V




Portable 10KV Digital Insulation Resistance Tester Shockproof With LCD Display 3







Test cases
Portable 10KV Digital Insulation Resistance Tester Shockproof With LCD Display 4

Portable 10KV Digital Insulation Resistance Tester Shockproof With LCD Display 5Portable 10KV Digital Insulation Resistance Tester Shockproof With LCD Display 6Portable 10KV Digital Insulation Resistance Tester Shockproof With LCD Display 7
Portable 10KV Digital Insulation Resistance Tester Shockproof With LCD Display 8
Portable 10KV Digital Insulation Resistance Tester Shockproof With LCD Display 9Portable 10KV Digital Insulation Resistance Tester Shockproof With LCD Display 10

Company introduction

Wuhan GDZX Power Equipment Co.,Ltd. is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
Portable 10KV Digital Insulation Resistance Tester Shockproof With LCD Display 11
Portable 10KV Digital Insulation Resistance Tester Shockproof With LCD Display 12
Portable 10KV Digital Insulation Resistance Tester Shockproof With LCD Display 13Portable 10KV Digital Insulation Resistance Tester Shockproof With LCD Display 14
Portable 10KV Digital Insulation Resistance Tester Shockproof With LCD Display 15Portable 10KV Digital Insulation Resistance Tester Shockproof With LCD Display 16
Portable 10KV Digital Insulation Resistance Tester Shockproof With LCD Display 17

 Portable 10KV Digital Insulation Resistance Tester Shockproof With LCD Display 18
Portable 10KV Digital Insulation Resistance Tester Shockproof With LCD Display 19
