Product Details
Place of Origin: China
Brand Name: GDZX
Certification: ISO9001
Model Number: ZXBX-12
Payment & Shipping Terms
Minimum Order Quantity: 1Set
Price: US $20423.00-$36000.00 /SET
Packaging Details: Packing wooden case or carton
Delivery Time: 7-20 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P, WeChat, Paypal
Supply Ability: 1200sets/year
Product Name: |
Portable Electricity Recording Analyzer |
Voltage Input Range: |
-10V ~ 10V, -200V ~ 200V, -400V ~ 400V; |
Current Input Range: |
-20mA ~ 20mA |
Switch Signal Range: |
DC12-220V |
Maximum Breaking Capacity Of The Switch: |
AC220V/1A |
Product Name: |
Portable Electricity Recording Analyzer |
Voltage Input Range: |
-10V ~ 10V, -200V ~ 200V, -400V ~ 400V; |
Current Input Range: |
-20mA ~ 20mA |
Switch Signal Range: |
DC12-220V |
Maximum Breaking Capacity Of The Switch: |
AC220V/1A |
Portable Electricity Recording Analyzer For Transient Signal Recording
Product introduction
Features
| Type | |
| Current channel number | Standard six phase |
| Voltage channel number | Standard six phase |
| AC current output range | 30A / phase or 180A (six phase parallel) |
| DC current output range | 10A DC /phase |
| AC voltage output range | 120V AC /phase |
| DC voltage output range | 160V DC / phase |
| AC current output> |
|
The virtual value of each phase output when six phase current output :0～30A, output precision :0.1 grade The virtual value of each phase output when three phase current output: 0～60A The virtual value of six phase parallel current output : 0～180A The allowed virtual value when the phase current work long time:10A |
|
The maximum output power of phase current :450VA The maximum output power when six phase parallel current output :1000VA The allowed working time when six phase parallel current maximum output :10s Frequency range(fundamental wave) : 0～1000Hz Harmonic order :0～20 |
| DC current output |
|
Current output :0～±10A / phase ,output precision :0.2 grade The maximum load volatage output :20V |
| AC voltage output |
|
The virtual value of phase voltage output :0～120V, output precision :0.1 grade The virtual value of line voltage output :0～240V The output power of phase voltage/ line voltage :80VA / 100VA Frequency range(fundamental wave) :0～1000Hz Harmonic order:0～20 |
| DC voltage output |
|
The output amplitude of phase voltage :0～±160V , output precision:0.2 grade The output amplitude of line voltage :0～±320V The output power of phase voltage/ line voltage:70VA / 140VA Input and output |
|
8 channels input Free contact : 1～20mA, 24V Electric potential contacts :“0”:0 ～ +6V； “1”:+11 V ～ +250 V 4 channels output : DC:220 V／0.2 A；AC:220 V／0.5 A Time measurment range: 0.1ms ～ 9999s, measurement accuracy ＜0.1ms |

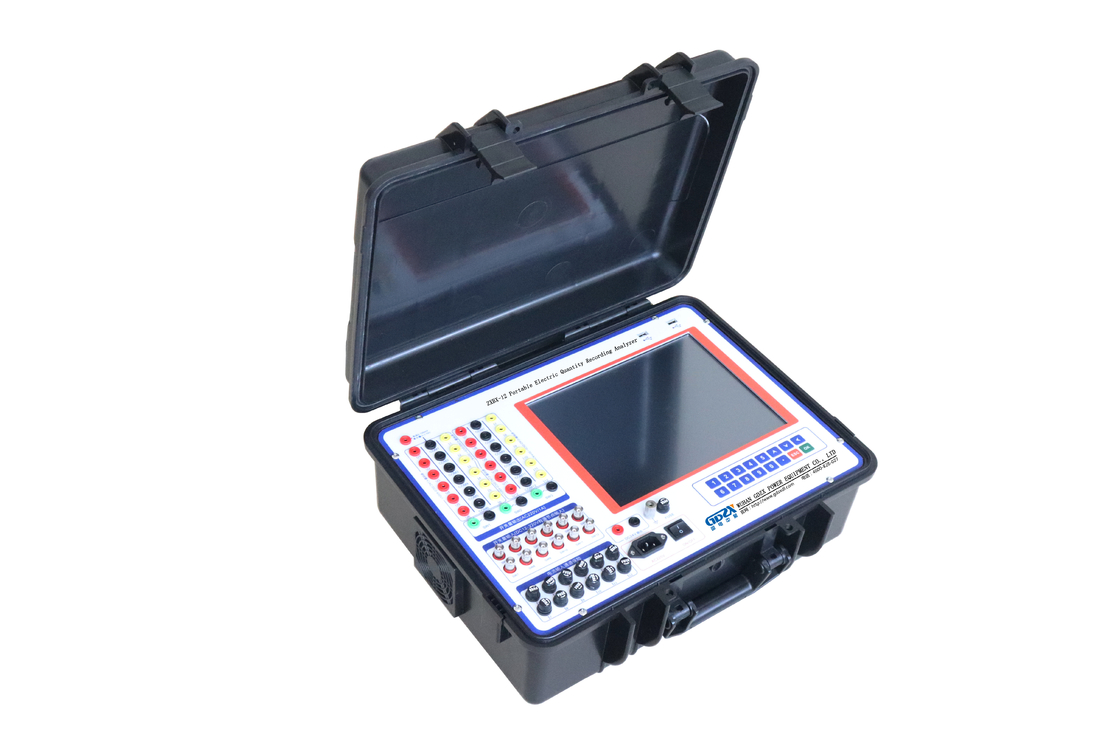

Product pictures

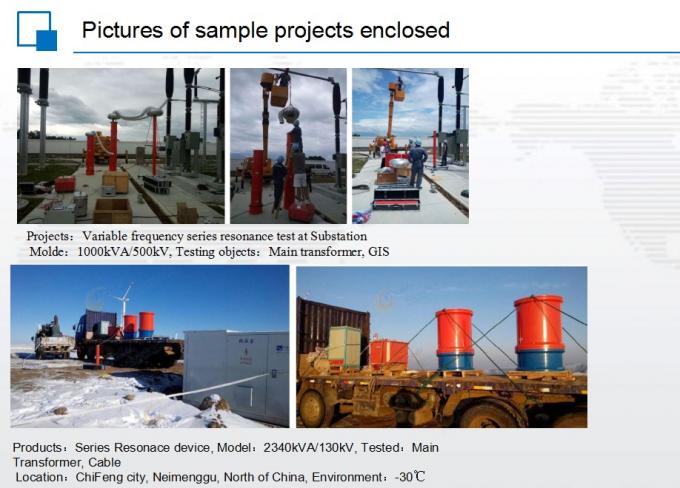

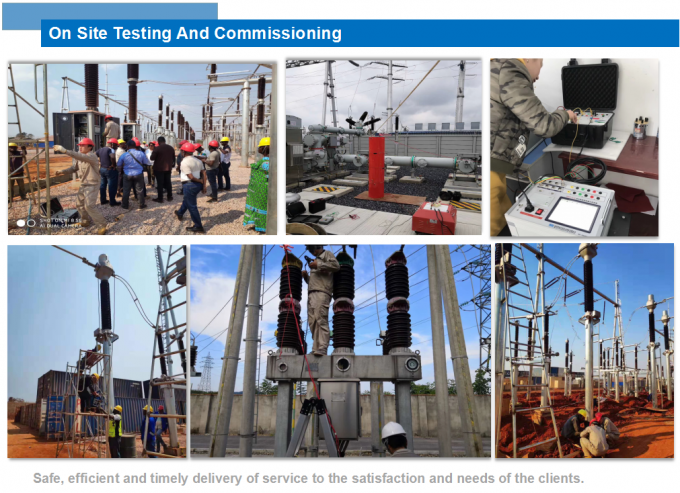

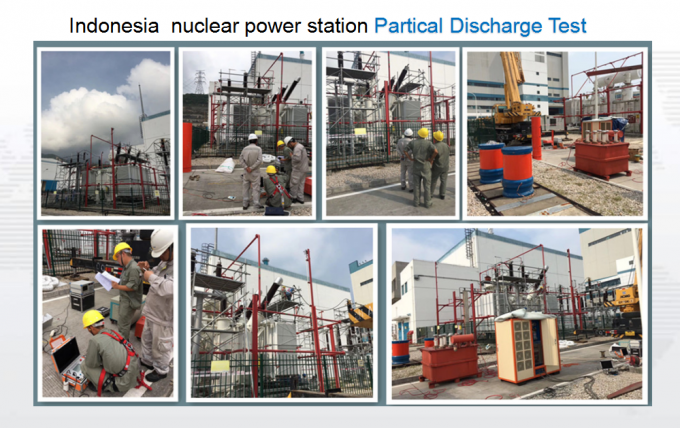

Test cases
(1)We will ship products within 5-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.

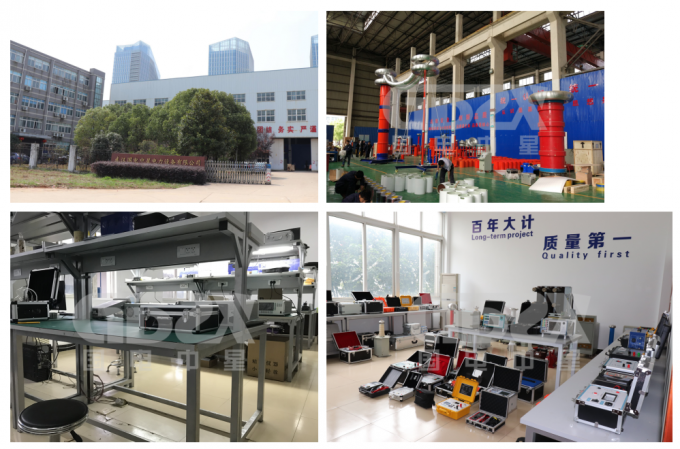

Wuhan GDZX Power Equipment Co.,Ltd. is a manufacturer of power test equipment. Integrating design , production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user’s questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others.
Warranty
* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.
* Our products are guaranteed with one year warranty and life-long tech support.
* Provide solutions within 24 hours when there is problems feedback from customer.
1.Q: Are you trading company or manufacturer?
A: We are manufacturer.
We have R&D department, OEM& ODM services available.
2.Q: How long is your delivery time?
A: We usually arrange shipment within 5-7 working days after checking the payment. However, for example, the delivery time of the complete set of test devices will be a little longer, which needs to be checked in real time.
3.Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample, but not for free; you need pay charge and the cost of freight.
4.Q: What is your term of payment?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 50% T/T in advance, balance before shipment.
5.Q: What is the payment method?
A: We can accept Bank Transfer, T/T, L/C.
6.Q: Will you provide OEM service?
A: OEM & ODM services available
7.Q: How long is the product warranty?
A: 1 year.
