Power System Alternator Electric Parameters Signal Recorder and Analyzer

Product Details

Place of Origin: China

Brand Name: GDZX

Certification: ISO9001

Model Number: ZXBX-12

Payment & Shipping Terms

Minimum Order Quantity: 1Set

Price: US $20423.00-$36000.00 /SET

Packaging Details: Packing wooden case or carton

Delivery Time: 7-20 work days

Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P, WeChat, Paypal

Supply Ability: 1200sets/year

Get Best Price
Product Details
Highlight:

Electric Parameters Signal Recording Analyzer

,

AC220V Electricity Recording Analyzer

Product Name:
Portable Electricity Recording Analyzer
Voltage Input Range:
-10V ~ 10V, -200V ~ 200V, -400V ~ 400V;
Current Input Range:
-20mA ~ 20mA
Switch Signal Range:
DC12-220V
Maximum Breaking Capacity Of The Switch:
AC220V/1A
Product Name:
Portable Electricity Recording Analyzer
Voltage Input Range:
-10V ~ 10V, -200V ~ 200V, -400V ~ 400V;
Current Input Range:
-20mA ~ 20mA
Switch Signal Range:
DC12-220V
Maximum Breaking Capacity Of The Switch:
AC220V/1A
Product Description

Portable Electricity Recording Analyzer For Transient Signal Recording


Product introduction

      ZXBX-12 portable power recording analyzer is a transient signal recording instrument developed for power system applications. The instrument's internal software is preset with a test template for generator debugging, so users can easily complete generator short-circuit characteristics through the recorder, no-load characteristic test, excitation system disturbance test, excitation system 10% step test, deexcitation constant measurement, self-quasi-simultaneous synchronization device verification, unit load rejection record and tests.
     This type of power recording analyzer has rich software components so that users can freely perform graphical analysis, combination calculation, effective value calculation, AC power calculation, three-phase symmetry analysis, harmonic analysis, and curve correlation through the software components.


Features

1. Draw test curves in real time, and provide a variety of curve analysis tools to enable users to zoom and position the curve at will.

2. The graphics in the current oscilloscope can be edited, including free logos, color changes, etc., to facilitate the production of test reports.

3. A spectrum analysis tool is provided so that users can easily obtain the spectrum graph of the signal.

4. The signal can be arbitrarily selected as the X axis, and the Y axis is used to draw the relationship curve of the signal.

5. A harmonic analysis tool is provided, which can perform harmonic analysis on the collected signal, and the harmonic order is 1024 times.

6. Combined calculation tools enable users to add, subtract, multiply, divide and integrate the collected signals.

7. Calculate the effective value and power of the selected channel signal.

8. Perform power and symmetry analysis on the selected three-phase signals.

9. Draw a phasor diagram of the selected signal.

10. Select the channel signal type through software: DC instantaneous value or AC effective value.

11. Built-in generator three-phase short-circuit characteristic curve, no-load characteristic curve, excitation system disturbance test, demagnetization time constant, frequency and voltage characteristics, load rejection test, standard test template for auto-simultaneous synchronization test, software automatically calculates test result parameters .

12. The instrument can automatically generate Word test report and Excel test report.

13. The test report automatically marks the curve, so that the test report is fully automated.

14. The names and units of all sampling channels can be redefined.

15. The test environment settings and instrument settings for various tests are automatically saved.

16. Automatically calculate the test parameters of various test templates.

17. Simple and convenient channel filtering method.

Technical Indicators
Type
Current channel number Standard six phase
Voltage channel number Standard six phase
AC current output range 30A / phase or 180A (six phase parallel)
DC current output range 10A DC /phase
AC voltage output range 120V AC /phase
DC voltage output range 160V DC / phase



AC current output>

The virtual value of each phase output when six phase current output :0~30A, output precision :0.1 grade

The virtual value of each phase output when three phase current output: 0~60A

The virtual value of six phase parallel current output : 0~180A

The allowed virtual value when the phase current work long time:10A

The maximum output power of phase current :450VA

The maximum output power when six phase parallel current output :1000VA

The allowed working time when six phase parallel current maximum output :10s

Frequency range(fundamental wave) : 0~1000Hz

Harmonic order :0~20

DC current output

Current output :0~±10A / phase ,output precision :0.2 grade

The maximum load volatage output :20V

AC voltage output

The virtual value of phase voltage output :0~120V, output precision :0.1 grade

The virtual value of line voltage output :0~240V

The output power of phase voltage/ line voltage :80VA / 100VA

Frequency range(fundamental wave) :0~1000Hz

Harmonic order:0~20

DC voltage output

The output amplitude of phase voltage :0~±160V , output precision:0.2 grade

The output amplitude of line voltage :0~±320V

The output power of phase voltage/ line voltage:70VA / 140VA

Input and output

8 channels input

Free contact : 1~20mA, 24V

Electric potential contacts :“0”:0 ~ +6V; “1”:+11 V ~ +250 V

4 channels output : DC:220 V/0.2 A;AC:220 V/0.5 A

Time measurment range:

0.1ms ~ 9999s, measurement accuracy <0.1ms



Product pictures

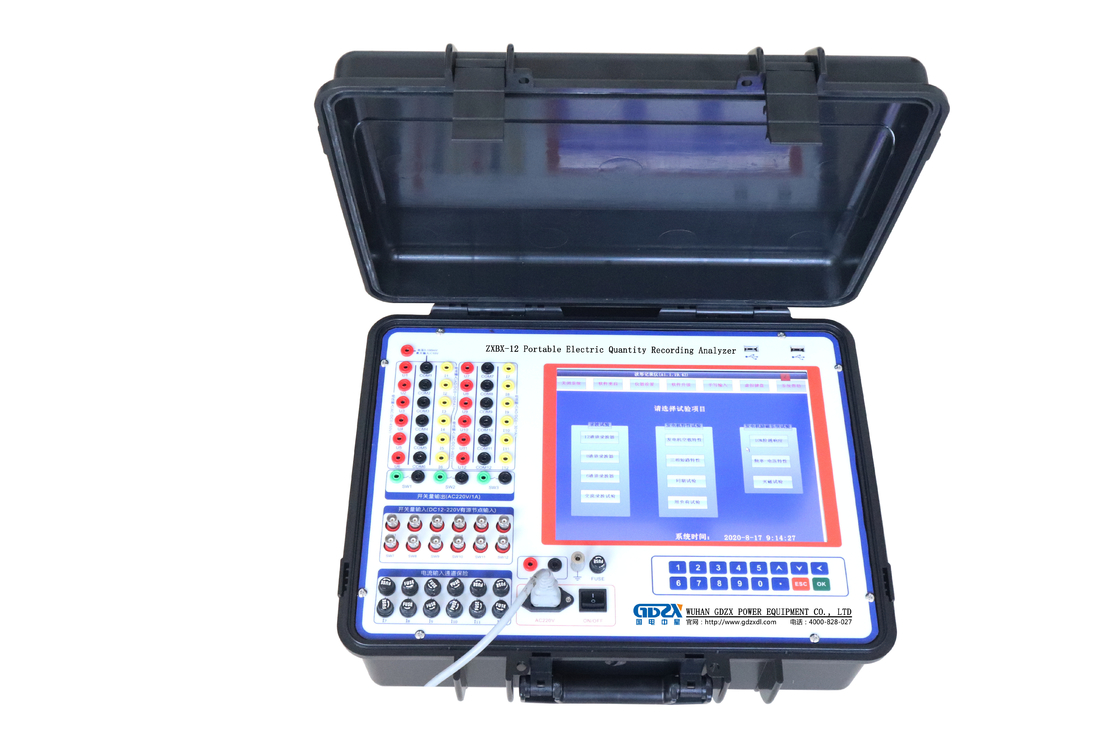

Power System Alternator Electric Parameters Signal Recorder and Analyzer 0



Test cases

Packaging & Shipping

(1)We will ship products within 5-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
