Highlight:
Secondary Injection Relay Protection Tester
Product Name: |
Optical Fiber Digital Relay Protection Tester |
Power Supply: |
AC: 220V±15%, Frequency, 50Hz±10Hz |
Dimension: |
380*130*300(mm) |
Weight: |
5.5Kg |
Resolution: |
1mV, 4~20mA Output Type Can Be Customized |
Synchronization Accuracy: |
<80ns |
Binary Input: |
8 Channels, 10-250VDC Or Idle Contact, Self-identifying, No Polarity |

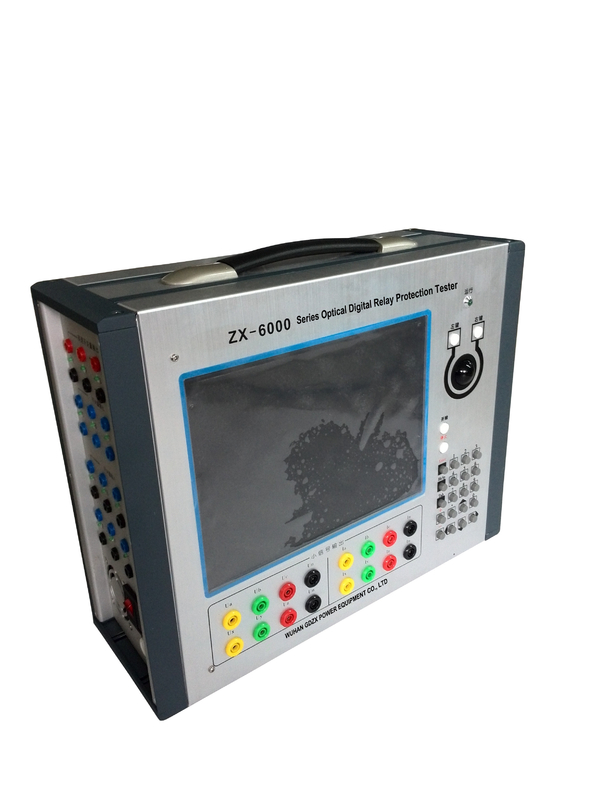

ZX-6000 Portable Optical Fiber Digital Relay Protection Tester With GPS
Product introduction
ZX-6000 optical digital relay protection tester is a new generation of intelligent relay protection tester designed according to State Grid Corporation's "Intelligent Substation Relay Protection Technical Specifications" and "Smart Substation Technical Guidelines". It can realize the full-function test of the optical digital protection device, and can simulate the output of the collector to realize the closed-loop test of the MU. It has GPS, IRIG-B code, PPS synchronization interface and supports IEEE1588 hour mode.
Features
1. 4/6/8 pairs of 100M fiber optic communication Ethernet interface, can send or receive IEC61850-9-1/2 format SV, Goose,IEEE-1588 message
2. The whole machine support maximum 24 groups of SV message + 64 groups of Goose message output at the same time
3. 3/5 pairs 2~10M fiber optic ports, can send and receive IEC60044-7/8 FT3,extended FT3,private FT3 format SV message
4. 12 channels small signal simulating output for testing small signal input protection devices
5. Built in GPS synchronization module, one interface for receiving IRIG-B/PPS code synchronization or as providing IRIG-B code synchronization source
6. Complete SCL(SCD,CID,ICD,NPI) file parsing, auto configuration of SV, GS message
7. Message detecting, monitoring, packet capture, message auto analysis function
8. PCAP message replaying, PCAP file editing function
9. Abnormal SV, GS, TF3 frame simulation test function
10. Network pressure and Goose storm test function
11. Intelligent terminal SOE response time test function, accuracy <0.1ms
12. Synchronization test function, synchronization mode support both IRIG-B and IEEE-1588
13. Built in IPC, can operate independently or connect with PC, same software with PC
14. With Fiber optic communication port for data transfer, mirroring, loopback
Technical Indicators
| Fiber-optic Ethernet Interface |
4/6/8 pairs x100Mbits/s, ST, multimode, 1310nm, IEC61850-9-1/2/LE, Goose, IEEE-1588 |
Send dispersion:<0.1μs |
| Receiving time accuracy:<25ns |
| Maximum output flow:＞95M |
| 1588 time-synchronization accuracy: <80ns |
| Fiber-optic Serial interface |
3/5 pairs × (2~10Mbits/s),ST, multimode,850nm, IEC60044-7/8, FT3, support Manchester code or asynchronous serial
port transmission method
|
Send dispersion:<0.1μs
Time-synchronization accuracy:<25ns |
| Synchronous interface |
Built in GPS,1 pair × IRIG-B/PPS optical port,ST,multimode, 850nm |
Accuracy: <400ns |
| Electrical Ethernet interface |
1 pcs, RJ-45,100Mbits/s |
|
| Small signal output |
12×(0~7.07VAC/0~10VDC)resolution: 1mV, 4~20mA output type can be customized |
Amplitude accuracy: 0.1% |
| Phase accuracy: 0.1° |
| Frequency accuracy:0.001Hz |
| Binary input |
8 channels, 10-250VDC or idle contact, self-identifying, no polarity |
|
| Binary output |
number: 8 channels, idle contact/fast output, AD/DC breaking capability: 0.5A,250V |
Fast output time: <10μs |
| Screen |
10.4’ LED,1024×768 |
|
| Power supply |
AC: 220V±15%, Frequency, 50Hz±10Hz |
|
| Dimension |
380 ×130 ×300(mm) |
Weight 5.5Kg |
| Item/Model |
Optical type |
Digital-Analog Integrated type |
| ZX-6000 |
ZX-6003 |
ZX-6001 |
ZX-6002 |
| Optical Network Interface |
●4/6 pairs |
● 8 pairs |
● 6 pairs |
● 6 pairs |
| Optical Serial Interface |
●4/5 pairs |
● 3 pairs |
● 5 pairs |
● 5 pairs |
| Synchronous interface |
●1 pair |
● 1 pair |
● 1 pair |
● 1 pair |
| Small signal simulation |
●12 ways |
●12 ways |
● 12 ways |
● 12 ways |
| Current source output |
/ |
/ |
● 3x(0~30A) |
● 6x(0~30A) |
| Voltage source output |
/ |
/ |
● 4x(0~125V) |
● 6x(0~125V) |
| Binary output |
● 8 pairs |
● 8 pairs |
● 8 pairs |
● 8 pairs |
| Binary input |
● 8 pairs |
● 8 pairs |
● 8 pairs |
● 8 pairs |
| Auxiliary DC output |
/ |
/ |
● 1 channel |
● 1channel |
Company introduction
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user’s questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others.
Warranty
* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.
* Our products are guaranteed with one year warranty and life-long tech support.
* Provide solutions within 24 hours when there is problems feedback from customer.
PACKING AND SHIPPING
(1)We will ship products within 5-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
If you need detailed specification, please feel free to contact us.
