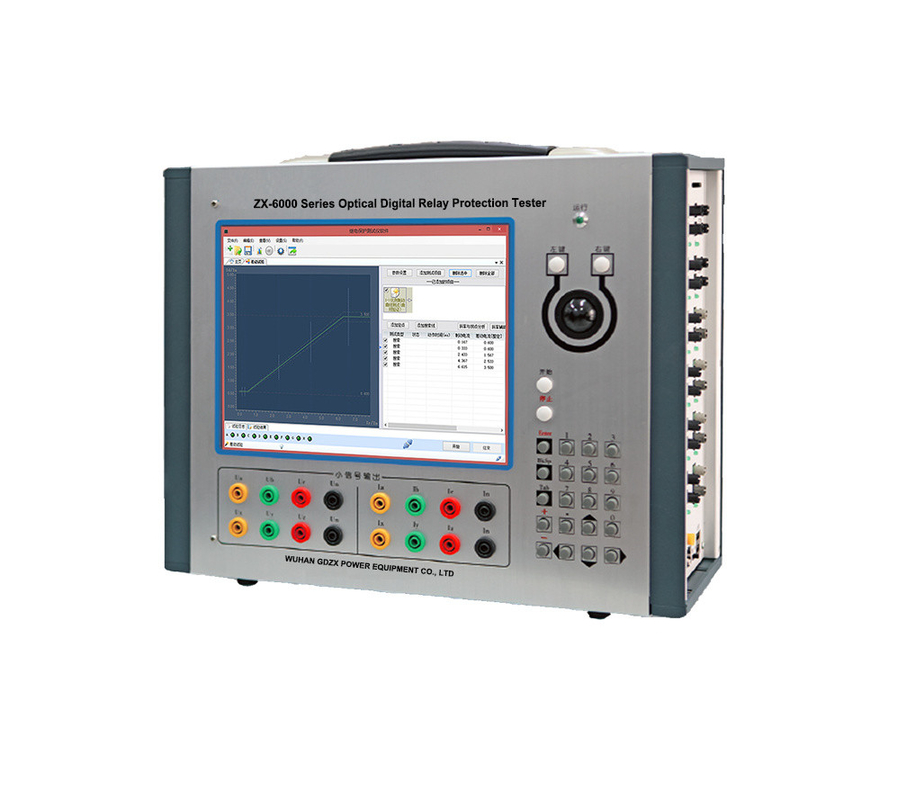

ZX-6000 Portable Optical Fiber Digital Relay Protection Tester With GPS
Product introduction
The ZX-6000 optical digital relay protection tester is a new generation intelligent relay protection tester designed according to the State Grid Corporation's "Technical Specification for Relay Protection in Intelligent Substations" and "Technical Guidelines for Intelligent Substations". It can achieve full functional testing of optical digital protection devices and simulate the output of the collector to achieve closed-loop testing of MU. It has GPS, IRIG-B code, PPS synchronization interfaces and supports IEEE1588 time mode, providing conditions for station debugging and station to station joint debugging. The testing software provides rich testing function modules, which can conduct special tests on protection and measurement devices, merging units, intelligent terminals, switches, etc. It is a rare instrument for substation debugging, intelligent equipment research and development, and intelligent substation relay protection technology training.
| Fiber-optic Ethernet Interface | 4/6/8 pairs x100Mbits/s, ST, multimode, 1310nm, IEC61850-9-1/2/LE, Goose, IEEE-1588 | Send dispersion:<0.1μs |
| Receiving time accuracy:<25ns | ||
| Maximum output flow:＞95M | ||
| 1588 time-synchronization accuracy: <80ns | ||
| Fiber-optic Serial interface |
3/5 pairs × (2~10Mbits/s),ST, multimode,850nm, IEC60044-7/8, FT3, support Manchester code or asynchronous serial port transmission method |
Send dispersion:<0.1μs Time-synchronization accuracy:<25ns |
| Synchronous interface | Built in GPS,1 pair × IRIG-B/PPS optical port,ST,multimode, 850nm | Accuracy: <400ns |
| Electrical Ethernet interface | 1 pcs, RJ-45,100Mbits/s | |
| Small signal output | 12×(0~7.07VAC/0~10VDC)resolution: 1mV, 4~20mA output type can be customized | Amplitude accuracy: 0.1% |
| Phase accuracy: 0.1° | ||
| Frequency accuracy:0.001Hz | ||
| Binary input | 8 channels, 10-250VDC or idle contact, self-identifying, no polarity | |
| Binary output | number: 8 channels, idle contact/fast output, AD/DC breaking capability: 0.5A,250V | Fast output time: <10μs |
| Screen | 10.4’ LED,1024×768 | |
| Power supply | AC: 220V±15%, Frequency, 50Hz±10Hz | |
| Dimension | 380 ×130 ×300(mm) | Weight 5.5Kg |
| Item/Model | Optical type | Digital-Analog Integrated type | ||
| ZX-6000 | ZX-6003 | ZX-6001 | ZX-6002 | |
| Optical Network Interface | ●4/6 pairs | ● 8 pairs | ● 6 pairs | ● 6 pairs |
| Optical Serial Interface | ●4/5 pairs | ● 3 pairs | ● 5 pairs | ● 5 pairs |
| Synchronous interface | ●1 pair | ● 1 pair | ● 1 pair | ● 1 pair |
| Small signal simulation | ●12 ways | ●12 ways | ● 12 ways | ● 12 ways |
| Current source output | / | / | ● 3x(0~30A) | ● 6x(0~30A) |
| Voltage source output | / | / | ● 4x(0~125V) | ● 6x(0~125V) |
| Binary output | ● 8 pairs | ● 8 pairs | ● 8 pairs | ● 8 pairs |
| Binary input | ● 8 pairs | ● 8 pairs | ● 8 pairs | ● 8 pairs |
| Auxiliary DC output | / | / | ● 1 channel | ● 1channel |
