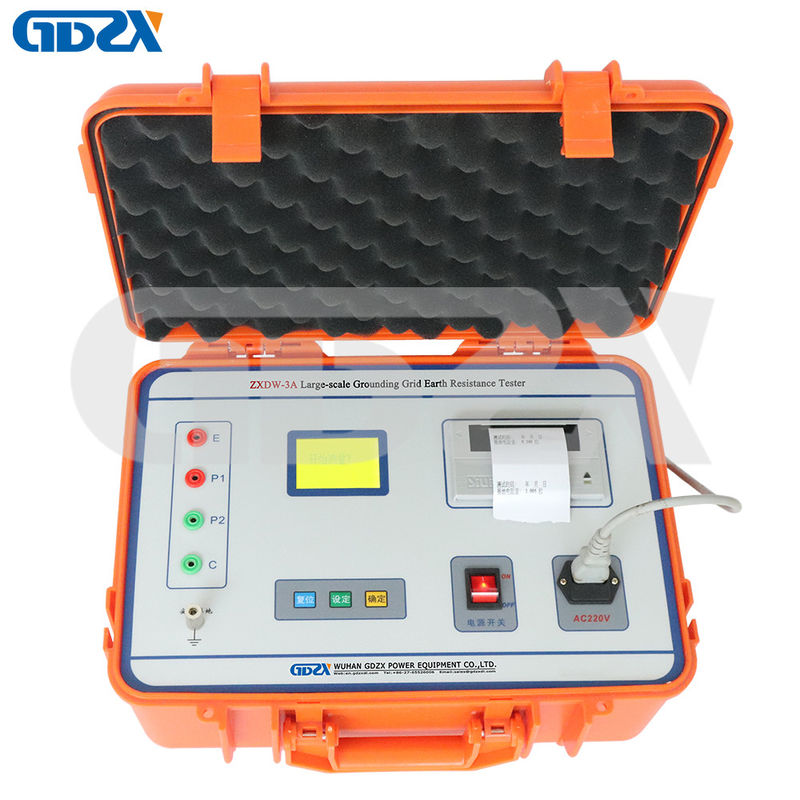

ZXDW-3A Large-scale Grounding Grid Earth Resistance Tester Earth Ground Meter

Product Details

Place of Origin: CHINA

Brand Name: GDZX

Certification: ISO9001

Model Number: ZXDW-3A

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD

Packaging Details: CARTON

Payment Terms: L/C,T/T,Western Union,MoneyGram

Get Best Price
Product Details
Highlight:

digital insulation resistance tester

,

insulation resistance test instrument

Features:
45Hz 55Hz, Double Frequency, Sine Wave
Measuring Range:
0~15Ω
Accuracy:
1%
U Output:
0-100V
I Output:
0-3A
Resolution:
0.001Ω
Features:
45Hz 55Hz, Double Frequency, Sine Wave
Measuring Range:
0~15Ω
Accuracy:
1%
U Output:
0-100V
I Output:
0-3A
Resolution:
0.001Ω
Product Description

ZXDW-3A Large-scale Grounding Grid Earth Resistance Tester


This device applies to test frequency ground resistance, contact voltage, pace voltage and earth electric resistivity.


Features


1. Good frequency equivalence. sine wave(measured current wave), two frequencies for testing.

2. Strong anti-jamming ability, test results stable, reliable. Error caused from 15V/50Hz disturbance: 0.001Ω

3. High precision, can test the ground network of small impedance.

4. Powerful: test all characteristic parameters like ground impedance, resistive and reactance component

5. disconnection alarm function

6. Easy to operate, menu operated, directly display the test results.

7. Do not need high current wire.

8. small volume, little weight, convenient to carry


Parameters


Impedance measurement range
0~15Ω
Resolution
0.001Ω
Measurement error
±(reading×1%+0.005Ω)
Output voltage
0~100V (45Hz,55Hz, double frequency, sine wave)
Maximum output current
0~3A (45Hz,55Hz, double frequency, sine wave)
Operation environment
Temperature -10℃~50℃, <90%RH
Measured wire required value
Section surface of current wire copper core≥1.0 mm2


Section surface of voltage wire copper core≥0.2 mm2
Power supply
AC 220V±10%, 50Hz
Dimension
440×350×310mm3
Weight
10kg


ZXDW-3A Large-scale Grounding Grid Earth Resistance Tester Earth Ground Meter 0

ZXDW-3A Large-scale Grounding Grid Earth Resistance Tester Earth Ground Meter 1

ZXDW-3A Large-scale Grounding Grid Earth Resistance Tester Earth Ground Meter 2

ZXDW-3A Large-scale Grounding Grid Earth Resistance Tester Earth Ground Meter 3

ZXDW-3A Large-scale Grounding Grid Earth Resistance Tester Earth Ground Meter 4

Packaging & Shipping

ZXDW-3A Large-scale Grounding Grid Earth Resistance Tester Earth Ground Meter 5

ZXDW-3A Large-scale Grounding Grid Earth Resistance Tester Earth Ground Meter 6ZXDW-3A Large-scale Grounding Grid Earth Resistance Tester Earth Ground Meter 7ZXDW-3A Large-scale Grounding Grid Earth Resistance Tester Earth Ground Meter 8


Packaging & Shipping

(1)We will ship products within 5-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.

ZXDW-3A Large-scale Grounding Grid Earth Resistance Tester Earth Ground Meter 7

ZXDW-3A Large-scale Grounding Grid Earth Resistance Tester Earth Ground Meter 10
