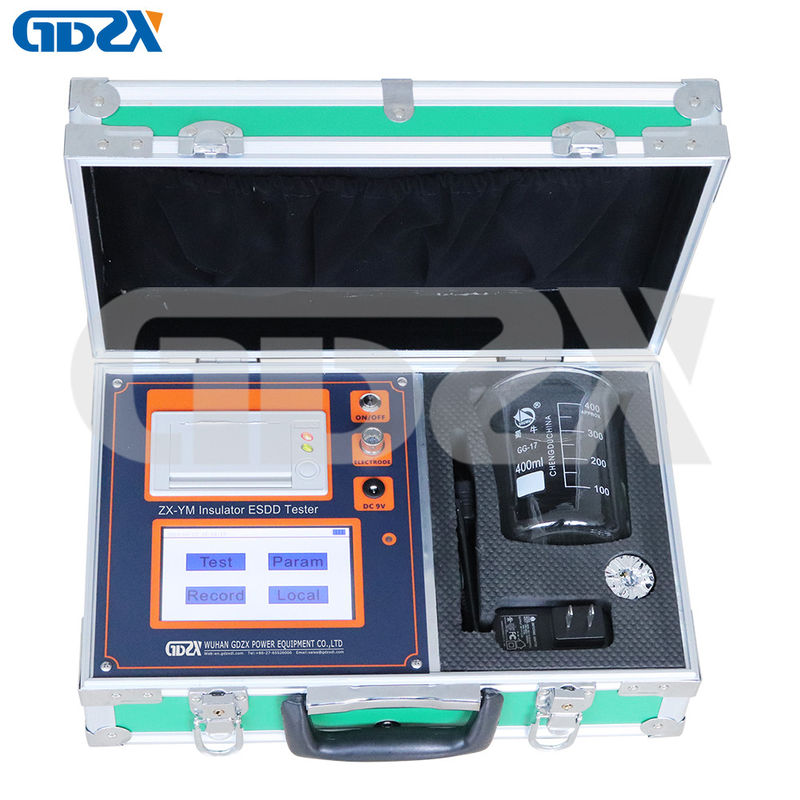

ZX-YM High Precision Hand Held ESDD Tester Equivalent Salt Deposit Density Tester

Name: ZX-YM High Precision Hand Held ESDD Tester Equivalent Salt Deposit Density Tester
Brand: Wuhan GDZX Power Equipment Co., Ltd
SKU: ZX-YM
Price: 1,600.00 USD
Availability: InStock

Product Details

Place of Origin: Hubei, China

Brand Name: GDZX

Certification: ISO9001

Model Number: ZX-YM

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: $1200 - 2000 / Set

Packaging Details: Carton or wooden box

Delivery Time: 7~10 work days

Payment Terms: L/C,D/A,D/P,T/T

Supply Ability: 500 Set/Sets per Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                insulation test equipment, digital insulation resistance tester


Product Name:	ESDD Tester Equivalent Salt Deposit Density Tester	Measuring Range:	0.0001mg/cm2~9.9999mg/cm2
Testing Temperature:	0℃~100℃	Conductivity:	0~200000μs/cm

Product Name:	ESDD Tester Equivalent Salt Deposit Density Tester
Measuring Range:	0.0001mg/cm2~9.9999mg/cm2
Testing Temperature:	0℃~100℃
Conductivity:	0~200000μs/cm

Product Description

Introduction

The device is used for anti-pollution flash-over testing in electric power system, which can especially measure insulator surface ESDD ( equivalent salt deposit density ), and also can measure liquid conductivity and temperature. It is featured with high precision, wide measurement range, convenient operation and usually used in electric power system or teaching and science research department.

Features

1. Automatic range switching, fast measuring speed (3s/time)

2. Wide measuring range: 0.0001mg/cm2~9.9999mg/cm2

3. English interface

4. 480*272 (5′) color touch screen

5. Can display and print out the ESDD, conductivity, temperature, pollution class, RUSCD ( reference unified specific creepage distance )

6. Temperature self-compensating, auto display standard conductivity and ESDD under 20℃

7. Auto remove salt content, which reduces the requirement for cleaning fluid.

8. Auto convert off line measurement value of ESDD to live line measurement value of ESDD

9. Can store hundred thousand groups of testing results, can export data to U disk and print out

10. Single record can be browsed, deleted, or exported, the total records can be deleted

11. Built-in 2600mAh Li-battery, it is suitable for field work

Parameters

Measuring range	ESDD	0.0001mg/cm2~9.9999mg/cm2 (X-4.5 type insulator as standard)
	Testing temperature	0℃~100℃
	Conductivity	0~200000μs/cm
Basic error	ESDD measuring resolution	0.0001 mg/cm2
	Full range accuracy	±2%
	Temperature measuring resolution	0.1℃ accuracy ±0.5℃
	Conductivity measuring resolution	0.01μs/cm
Ambient temperature	0℃~60℃
Ambient humidity	<90%
Size and weight	Dimension	356×260×133mm
Size and weight	Weight	2.5Kg

ZX-YM High Precision Hand Held ESDD Tester Equivalent Salt Deposit Density Tester 0

ZX-YM High Precision Hand Held ESDD Tester Equivalent Salt Deposit Density Tester 1

ZX-YM High Precision Hand Held ESDD Tester Equivalent Salt Deposit Density Tester 2

ZX-YM High Precision Hand Held ESDD Tester Equivalent Salt Deposit Density Tester 3

Packaging & Shipping

ZX-YM High Precision Hand Held ESDD Tester Equivalent Salt Deposit Density Tester 4

ZX-YM High Precision Hand Held ESDD Tester Equivalent Salt Deposit Density Tester 5

Packaging & Shipping

(1)We will ship products within 5-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.

ZX-YM High Precision Hand Held ESDD Tester Equivalent Salt Deposit Density Tester 9

Company Information

Wuhan GDZX Power Equipment Co.,Ltd. is a manufacturer of power test equipment. Integrating design , production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.

ZX-YM High Precision Hand Held ESDD Tester Equivalent Salt Deposit Density Tester 10

ZX-YM High Precision Hand Held ESDD Tester Equivalent Salt Deposit Density Tester 11

ZX-YM High Precision Hand Held ESDD Tester Equivalent Salt Deposit Density Tester 12

ZX-YM High Precision Hand Held ESDD Tester Equivalent Salt Deposit Density Tester 15

ZX-YM High Precision Hand Held ESDD Tester Equivalent Salt Deposit Density Tester 16

ZX-YM High Precision Hand Held ESDD Tester Equivalent Salt Deposit Density Tester 17

Our Services

Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user’s questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others.
Warranty
* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.
* Our products are guaranteed with one year warranty and life-long tech support.
* Provide solutions within 24 hours when there is problems feedback from customer.

ZX-YM High Precision Hand Held ESDD Tester Equivalent Salt Deposit Density Tester 18

ZX-YM High Precision Hand Held ESDD Tester Equivalent Salt Deposit Density Tester 19

FAQ

1.Q: Are you trading company or manufacturer?
A: We are manufacturer.

We have R&D department, OEM& ODM services available.

2.Q: How long is your delivery time?
A: We usually arrange shipment within 5-7 working days after checking the payment. However, for example, the delivery time of the complete set of test devices will be a little longer, which needs to be checked in real time.

3.Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample, but not for free; you need pay charge and the cost of freight.

4.Q: What is your term of payment?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 40% T/T in advance, balance before shipment.

5.Q: What is the payment method?
A: We can accept Bank Transfer, T/T, PayPal, Western Union, Money Gram, Cash etc.

6.Q: Will you provide OEM service?
A: OEM & ODM services available

7.Q: How long is the product warranty?
A: 1 year.
