BY2671 500V 1000V 2000V 2500V Digital Insulation Resistance Tester

Name: BY2671 500V 1000V 2000V 2500V Digital Insulation Resistance Tester
Brand: Wuhan GDZX Power Equipment Co., Ltd
SKU: BY2671
Price: 100,000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: GDZX

Certification: ISO9001

Model Number: BY2671

Payment & Shipping Terms

Minimum Order Quantity: 1Set

Packaging Details: packing bag

Delivery Time: 5-20 work day

Payment Terms: L/C,T/T,Western Union,MoneyGram

Supply Ability: 1200Set/year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                2500V Digital Insulation Resistance Tester, 2000V Digital Insulation Resistance Tester, 1000V Insulation Resistance Test Instrument


Item/Model Series:	BY2671	Output Voltage:	500V,100V,2000V,2500V
Measuring Range:	0~19999MΩ	Relative Error:	≤±5%±1d
Resolution:	0.01MΩ,0.1MΩ,1.0MΩ,10.0MΩ	Max Voltage/Load:	2500V/20MΩ

Item/Model Series:	BY2671
Output Voltage:	500V,100V,2000V,2500V
Measuring Range:	0~19999MΩ
Relative Error:	≤±5%±1d
Resolution:	0.01MΩ,0.1MΩ,1.0MΩ,10.0MΩ
Max Voltage/Load:	2500V/20MΩ

Product Description

Earth Insulation Tester

Digital Insulation Resistance Tester With high output power

BY2671 series digital Megger consists of medium and large scale integrated circuit, features high output power and high short-circuit current value.

Features

1. High output power, strong load ability, and strong anti-interference ability.

The shell body is made of high-strength aluminum alloy, equip potential protection ring and fourth-order active low pass filter, it can play an effective role in shielding external power frequency and strong electromagnetic field. In the measurement of capacitive object, since the short-circuit current is greater than 1.6mA, it’s easy to rise the test voltage to the rating of output voltage. In the measurement of low resistance, it will not bad affected by voltage drop because of using scaling method.

2. The meter is battery powered and the measuring range is converted automatically. The easy-to-read panel and LCD display make measurement very convenient and fast.

3. The output short-circuit current can be measured immediately without estimation.

Technical Indicators

Item/Model series	BY2671
Output voltage	500V,100V,2000V,2500V
Measuring range	0~19999MΩ
Relative error	≤±5%±1d
Resolution	0.01MΩ,0.1MΩ,1.0MΩ,10.0MΩ
Max Voltage/Load	2500V/20MΩ
Short circuit current	>1.6mA
Voltage drop	10%
Battery	7*Battery5#,AC220V
Tester size	220mm×200mm×105mm
Ambient temperature:	0 ℃ ~ + 45 ℃
Relative humidity:	≤ 85% RH

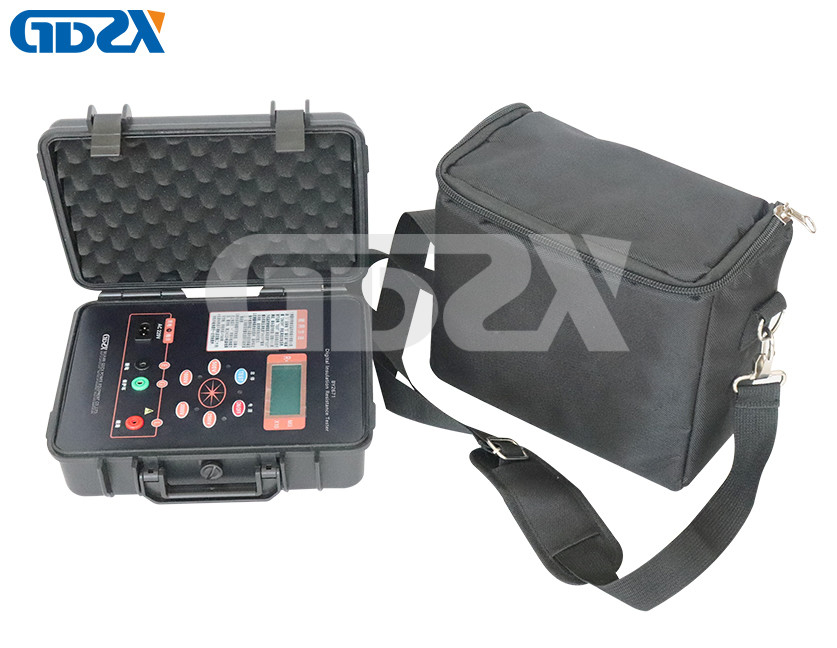

BY2671 500V 1000V 2000V 2500V Digital Insulation Resistance Tester 0
