|Product Name:||Insulation Resistance Tester||Function:||Insulation Resistance Test, AC Voltage Test, DC Voltage Test|
|Rated Voltage:||50V;250V;500V;1000V;2500V;5000V||Insulation Resistance Range:||0.1MΩ~400GΩ|
|Voltage Range:||AC/DC:0V~750V||Output Short-circuit Current:||≥2mA|
|Display Mode:||4-bit Super Large LCD Display, With Obvious Contrast||Instrument Size:||Length* Width*Height：212mm*175mm*76mm|
|Weight:||Instrument: 1230g (Including Battery)||Working Temperature And Humidity:||-10℃～40℃；Below 80%rh|
550KV High Voltage Phasing Tester,
Wireless High Voltage Phasing Tester,
550KV high voltage phase tester

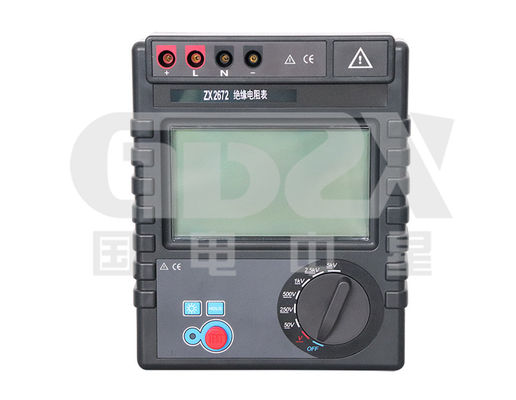

ZX2672 Insulation Resistance Tester(5000V)
It is used to measure the resistance of various insulating materials and the insulation resistance of transformers, motors, cables and electrical equipment.
ZX2672 Insulation Resistance Meter is a high-performance digital instrument with LCD large screen with backlight display, data retention, automatic discharge, automatic shutdown and other functions. The instrument has the functions of test timing and voltage monitoring. When the circuit voltage is greater than 36V, the instrument will prohibit testing to protect the safety of the tested object and personnel. The insulation resistance value, test time and output voltage are displayed on the same screen. At the same time, it also has the function of measuring AC voltage and DC voltage. The output voltage of this series of instruments is 5000V, the test resistance is 400GΩ, and the short-circuit current is 2mA.
The whole instrument is beautiful, with wide range, high precision, high resolution, convenient operation, convenient carrying, accurate and reliable, stable performance and strong anti-interference ability. Moreover, it has shockproof, dust-proof and moisture-proof structures. It is a commonly used and essential instrument for the installation and maintenance of telecommunications, electric power, meteorology, machine rooms, oil fields, electromechanical equipment, and industrial enterprise departments that use electricity as industrial power or energy. It is suitable for measuring the resistance of various insulating materials and the insulation resistance of transformers, motors, cables and electrical equipment.
1. The whole instrument is beautiful, with wide range, high precision and high resolution;
2. Convenient operation, convenient carrying, accurate and reliable, stable performance and strong anti-interference ability;
3. It has shockproof, dust-proof and moisture-proof structure;
4. LCD large screen with backlight display, data retention, automatic discharge, automatic shutdown and other functions;
6. The instrument has the functions of test timing and voltage monitoring;
7. Insulation resistance value, test time and output voltage are displayed on the same screen;
8. Measure AC voltage and DC voltage.
|Function||Insulation resistance test, AC voltage test, DC voltage test|
|Power Supply||DC 1.5V 6 LR14 dry batteries for continuous standby for more than 100 hours|
|Insulation resistance range||0.1MΩ~400GΩ|
|Output short-circuit current||≥2mA|
|Shift||Turn the shift knob to select the corresponding gear|
|Backlight||Controllable gray white backlight, suitable for use in dim fields|
|Display mode||4-bit super large LCD display, with obvious contrast|
|Measurement indication||LED flashes and buzzer rings during measurement|
|Instrument size||Length* Width*Height:212mm*175mm*76mm|
|Test line||High voltage rod test line: 1 red; Probe test line: 1 black; Crocodile clip test line: 1; Crocodile clip: 1|
|Measurement time||The single test time is 1min. During the test, the user can stop manually or automatically after 1min, and the measurement data is displayed on the screen.|
|Battery voltage||The battery undervoltage symbol shows that when the battery voltage is low, it reminds you to replace the battery in time.|
|Automatic discharge function||The symbol flashes when discharging. The discharge completion symbol goes out.|
|Auto Power Off||Automatic shutdown after 15 minutes of startup|
|Power waste||Standby: about 40mA (backlight off); Measurement: About 100mA (backlight off)|
|Weight||Instrument:1230g (Including battery)|
|Working temperature and humidity||-10℃～40℃；Below 80%rh|
|Storage temperature and humidity||-20℃～60℃；Below 70%rh|
|Suitable for safety regulations||IEC61010-1(CAT Ⅲ 300V, CAT IV 150V, Pollution degree 2)|
